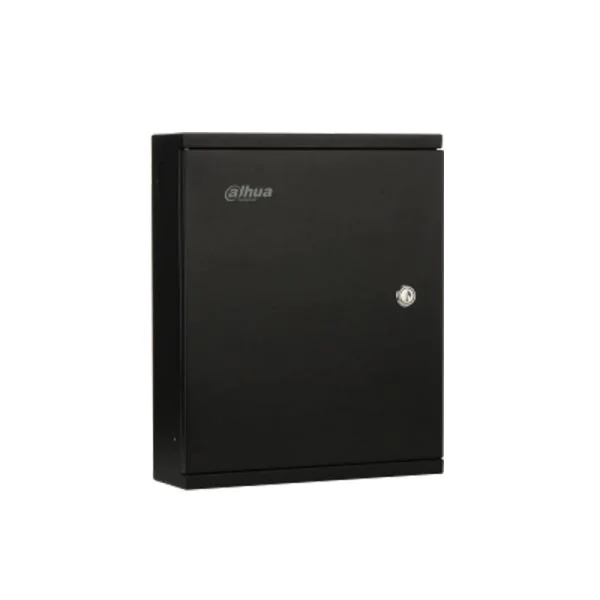

The Dahua ASC2204C-H is a high-performance Four Door Master Access Controller designed to provide secure and efficient access control for various environments. This advanced controller offers robust access management capabilities, ensuring superior security for your facility. Its state-of-the-art features make it an essential component for any comprehensive security system.
Quick Spec
| Brand | Dahua |
| Model | ASC2204C-H |
| Doors Controlled | 4 |
| Communication | TCP/IP, RS-485 |
| User Capacity | 100,000 |
Product Features
- Supports up to 100,000 users and 150,000 records
- Comprehensive alarm functions including tamper, duress, and door open for too long
- Multi-door interlock and anti-passback functionalities
- Seamlessly integrates with other Dahua surveillance and security systems
- User-friendly configuration software and remote management capabilities
Product Applications
- Corporate offices with multiple access points requiring strict entry control
- Educational institutions with various restricted areas such as labs and server rooms
- Healthcare facilities managing access to sensitive zones like medicine storage and operating rooms
Supported Options
| Accessory | Model |
| Card Reader | ASR1200D |
| Exit Button | ASF700 |
| Power Supply | APS1503A |
Compare to Similar Items
| Model | Differences |
| ASC2102B | Controls up to 2 doors, lower user capacity |
| ASC2204C-S | Similar to ASC2204C-H but lacks remote management capabilities |
| ASC1204B | Lower storage for user profiles and logs |
Get more information
For further details and pricing on the Dahua ASC2204C-H, please contact us through Live Chat or via email at sales@router-switch.com. Check Dahua ASC2204C-H price and ASC2204C-H datasheet, buy Dahua ASC2204C-H Access Controller with the best price and fast shipping. Free Live Chat support is available.
Dahua ASC2204C-H Specification
ASC2204C-H Specifications |
|
| Brand | Dahua |
| Model | ASC2204C-H |
| Type | Four Door Master Access Controller |
| Door Ports | 4 |
| Card Readers Supported | 8 |
| Max Users | 100,000 |
| Max Event Records | 150,000 |
| Communication Interface | TCP/IP |
| Baud Rate | 9600 bps |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Power Supply | 12V DC, 10W |
| Dimensions | 315mm x 242mm x 65mm |
| Mounting | Wall-mounted |
| Alarm Inputs | 8 |
| Alarm Outputs | 4 |
| Power Consumption | Less than 10W |
| Elevator Control | Yes |
| Backup Battery | Supported |
| Anti-Passback | Supported |
| Fire and Alarm Integration | Supported |
