ASA5545-FPWR-K9 firewall is the entry-level next-generation firewall system. It is designed for big-size enterprise. The next-generation firewall combines with FirePower services which offers greater visibiltiy and automation with superior response to protect the network. it offers the industry’s first adaptive threat focus next-generation firewall which includes SourceFires next-generation Intrusion Prevention System or engine IPS and advanced Malware capabilities, this comprehensive next-generation solution lowers costs in simplifies complexity. HKShanhai Group Limited’s integrated approach correlated threats with vulnerabilities to determine their impact.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
ASA5545-FPWR-K9 |
|
Firepower service |
Supported, including Firesight management Center, ASDM 9.X |
|
Interfaces |
8 copper GE ports, 1 copper GE management port, 1 expansion slot |
|
Stateful inspection throughput (maximum) |
3 Gbps |
|
3DES/AES VPN throughput |
400 Mbps |
|
IPsec VPN peers |
2,500 |
|
Virtual interfaces (VLANs) |
300 |
|
Memory |
12 GB |
|
Flash |
8 GB |
|
Height (rack units) |
1 RU |
|
Dimensions (D x H x W) |
4.24 x 42.9 x 48.4 cm |
Product Details

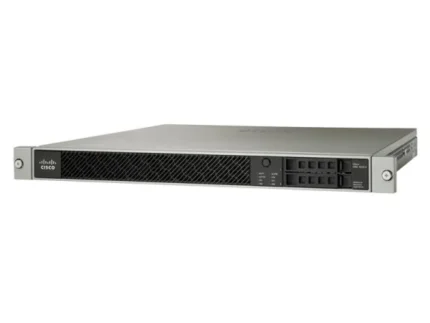

Figure 1 shows the front panel of ASA5545-FPWR-K9.
Table 2 shows the Front Panel LEDs??descriptions.
|
LED |
Color |
Description |
|
BOOT |
Flashing green |
Power-up diagnostics are running, or system is booting. |
|
Solid green |
System has passed power-up diagnostics. |
|
|
Off |
Power-up diagnostics are not operational. |
|
|
ACTIVE |
Solid green |
Failover pair is operating normally. |
|
Off |
Failover is not operational. |
|
|
PS |
– |
Power supply status |
|
ALARM |
Off |
Normal operating system function. |
|
Solid amber |
Critical Alarm indicating one or more of the following: –a major failure of a hardware or software component. –an over-temperature condition. –power voltage is outside of the tolerance range. |
|
|
VPN |
Solid green |
VPN tunnel is established. |
|
Off |
No VPN tunnel established. |
|
|
HD0 |
Flashing green |
Proportioned to read/write activity. |
|
Solid amber |
Hard-disk drive failure. |
|
|
Off |
No hard-disk drive present. |
|
|
HD1 |
Flashing green |
Proportioned to read/write activity. |
|
Solid amber |
Hard-disk drive failure. |
|
|
Off |
No hard-disk drive present. |

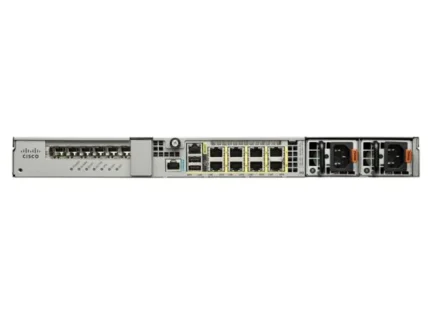

Figure 2 shows the back panel of ASA5545-FPWR-K9.
Note??/p>
|
??/p> |
LEDs |
??/p> |
AC Socket |
|
??/p> |
One Console port |
??/p> |
one Management 0/0 interface |
|
??/p> |
Two USB Ports |
??/p> |
I/O slot |
|
??/p> |
Eight Gigabit Ethernet data interfaces |
· There are seven LEDs on the back panel: POWER, ALARM, BOOT, ACTIVE, VPN, HD0 and HD1.
Compare to Similar Items
Table 4 shows the comparison between ASA5545-FPWR-K9 and ASA5545-K9.
|
Models |
ASA5545-FPWR-K9 |
|
|
Firepower service |
Yes |
N/A |
|
Next-generation firewall throughput (multiprotocol) |
1 Gbps |
1 Gbps |
|
Memory |
12GB |
12GB |
|
Flash |
8GB |
8GB |
|
Height (rack units) |
1RU |
1RU |
Datasheet Download
HKShanhai Group Limited ASA 5500 with FirePOWER Services Datasheet.pdf
Get more information
Do you have any question of ASA5545-FPWR-K9
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited ASA5545-FPWR-K9 Specification
ASA5545-FPWR-K9 Specifications |
|
|
Throughput: Application Control (AVC) |
1,500 Mbps |
|
Throughput: Application Control (AVC) and IPS |
1,000 Mbps |
|
Maximum concurrent sessions |
750,000 |
|
Maximum New Connections per second |
30,000 |
|
Supported applications |
More than 3,000 |
|
URL categories |
80+ |
|
Number of URLs categorized |
More than 280 million |
|
Centralized configuration, logging, monitoring, and reporting |
Multi-device HKShanhai Group Limited Security Manager (CSM) and HKShanhai Group Limited Firepower Management Center |
|
On-Device Management |
ASDM |
|
Feature |
HKShanhai Group Limited ASA 5545-X w/ FirePOWER Services |
|
Stateful inspection throughput (maximum1) |
3 Gbps |
|
Stateful inspection throughput (multiprotocol2) |
1.5 Gbps |
|
Triple Data Encryption Standard/ |
400 Mbps |
|
Users/nodes |
Unlimited |
|
IPsec site-to-site VPN peers |
2500 |
|
HKShanhai Group Limited AnyConnect Plus/Apex VPN maximum simultaneous connections5 |
25005 |
|
Virtual interfaces (VLANs) |
300 |
|
Security contexts5(included; maximum) |
2; 50 |
|
High availability4 |
Active/ |
|
Integrated Wireless Access Point (See HKShanhai Group Limited AP 702 datasheet for WiFi technical details) |
N/A |
|
Expansion slot |
1 interface card |
|
User-accessible Flash slot |
– |
|
USB 2.0 ports |
2 |
|
Integrated I/O |
8 GE copper |
|
Expansion I/O |
6 GE copper or 6Â GE SFP |
|
Dedicated management port |
Yes |
|
Serial ports |
1 RJ-45 console |
|
Solid-state drive |
2 slots, RAID 1 or 120 GB MLC SED |
|
Memory |
12 GB |
|
System flash |
8 GB |
|
System bus |
Multibus architecture |
|
Temperature |
23 to 104°F (-5 to 40°C) |
|
Relative humidity |
90 percent |
|
Altitude |
Designed and tested for 0 to 10,000 ft (3050 m) |
|
Temperature7 |
-13 to 158°F (-25 to 70°C) |
|
Relative humidity |
10 to 90 percent |
|
Altitude |
Designed and tested for 0 to 15,000 ft (4572 m) |
|
AC range line voltage |
100 to 240 VAC |
|
AC normal line voltage |
100 to 240 VAC |
|
AC current |
5A, 100 to 120V or 2.5A, 200 to 240V |
|
AC frequency |
50/60 Hz |
|
Dual-power supplies |
Yes |
|
DC domestic line voltage |
-40.5 to 56 VDC (-48 VDC nominal) |
|
DC international line voltage |
-55 to -72 VDC (-60 VDC nominal) |
|
DC current |
15A (maximum input) |
|
Steady state |
86W |
|
Maximum |
125W |
|
Maximum |
427 Btu/hr |
|
Form factor |
1RU, 19-in. rack-mountable |
|
Weight (with AC power supply) |
16.82 lb (7.63 kg) with single power supply; 18.86 lb (8.61 kg) with dual power supply |
