HKShanhai Group Limited’s next-generation NetEngine AR6000 series enterprise routers use high-performance multi-core processors and a nonblocking switching structure, helping to deliver higher forwarding performance than the industry average. The NetEngineAR6000 also integrates functions such as SD-WAN, routing, switching, VPN, security, and MPLS, ensuring diversified andcloud-based services are fully supported.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
AR6120 |
|
Processor |
4-Core |
|
ForwardingPerformance (LAN – >WAN + WAN – > LAN,NAT + ACL + QoS,IMIX) |
2 Gbps |
|
IPsec performance(IMIX) |
2 Gbps |
|
Fixed WAN ports |
1 x GE combo + 1 xGE RJ45 + 1 x 10GESFP+ (compatiblewith GE SFP) |
|
Fixed LAN ports |
8 x GE RJ45 (can beconfigured as WAN) |
|
SIC slots |
2 |
|
WSIC slots |
0 (default)/1(maximum) |
|
XSIC slots |
|
|
USB port |
1 x USB 3.0(compatible with USB2.0) + 1 x USB 2.0 |
|
Auxiliary or consoleport |
1 x RJ45 console port |
|
Memory |
2 GB |
|
Flash memory |
1 GB/ 512MB |
|
Hot swapping |
Supported |
Product Details

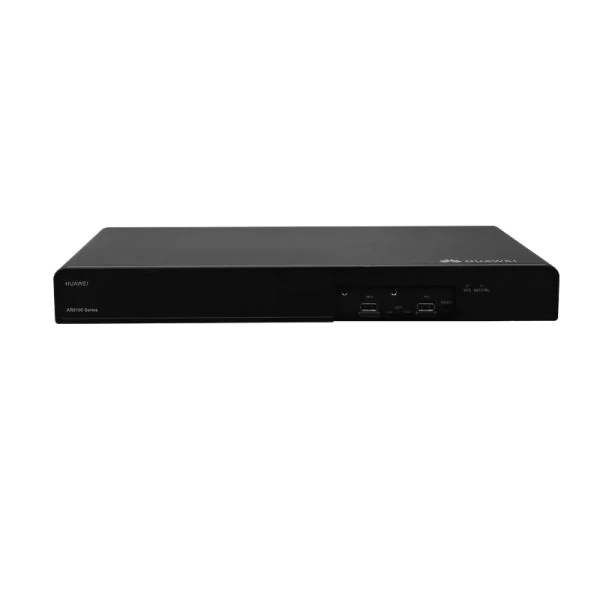

Figure 1shows the front panel of HKShanhai Group Limited AR6120.
Note:
|
① |
USB interface 3.0 (host) |
③ |
RST button |
|
② |
USB interface 2.0 (host) |
Figure 2 shows the back panel of HKShanhai Group Limited AR6120.
Note：
|
① |
WAN interface: one 10GE optical interface |
⑥ |
AC power jack |
|
② |
Console interface |
⑦ |
LAN interfaces: eight GE electrical interfaces |
|
③ |
Two SIC slots |
⑧ |
WAN interface: one GE electrical interface |
|
④ |
Ground point |
⑨ |
WAN interface: GE combo interface |
|
⑤ |
Jack for power cable locking strap |
The Accessories
Table 2 shows the recommended elements for the AR6120.
|
Models |
Descriptions |
|
8-Port 100M-RJ45+1-Port 1000M-RJ45-L2/L3 Ethernet Electrical Interface Card |
|
|
8 Port 100BASE-RJ45 and 1 Port 1000BASE- RJ45 L2 Ethernet Interface Card |
|
|
4-Port 1000BASE-SFP-L2 Ethernet Interface Card |
|
|
4-Port 1000BASE-RJ45 L2 Ethernet Interface Card |
|
|
1-Port GE Combo WAN Interface Card |
|
|
4-Port GE Combo WAN Interface Card |
|
|
2-Port FE WAN Interface Card |
|
|
4-Port 1000BASE-RJ45-L3 Ethernet WAN Interface Card |
|
|
4-Port 1000BASE-SFP-L3 Ethernet WAN Interface Card |
|
|
1-Port Channelized E1/T1/PRI/VE1 Multiflex Trunk Interface Card |
|
|
2-Port Channelized E1/T1/PRI/VE1 Multiflex Trunk Interface Card |
|
|
4-Port Channelized E1/PRI Multiflex Trunk Interface Card |
|
|
8-Port Channelized E1/PRI Multiflex Trunk Interface Card |
|
|
1-Port Fractional Channelized E1/T1 WAN Interface Card |
|
|
2-Port Fractional Channelized E1/T1 WAN Interface Card |
|
|
4-Port Fractional Channelized E1 WAN Interface Card |
|
|
8-Port Fractional Channelized E1 WAN Interface Card |
|
|
4-Port E1 ATM IMA Interface Card |
|
|
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
|
|
1-Port Synchronous/Asynchronous WAN Interface Card |
|
|
2-Port Synchronous/Asynchronous WAN Interface Card |
|
|
8-port synchronous/asynchronous WAN interface card |
|
|
8-Port-Asynchronous WAN Interface Card |
|
|
3G WCDMA HSPA+7 Interface Card |
|
|
WCDMA LTE Interface Card |
|
|
1-Port ISDN S/T WAN Interface Card |
|
|
1-Port ADSL2+ ANNEX A/M WAN Interface Module |
|
|
1-Port 4 Pair G.SHDSL WAN Interface Card |
|
|
1-Port VDSL2 over POTS WAN Interface card |
|
|
1-Port GPON/EPON Dual-Mode Interface Card |
|
|
Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
|
Optical Transceiver,eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
|
Optical Transceiver,eSFP,FE,Single-mode Module(1550nm,80km,LC) |
|
|
Optical Transceiver,eSFP,FE,BIDI Single-mode Module(TX1310/RX1550,15km,LC) |
|
|
Optical Transceiver,eSFP,FE,BIDI Single-mode Module(TX1550/RX1310,15km,LC) |
|
|
Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
|
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
|
Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
|
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
|
|
Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) |
|
|
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC) |
|
|
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
|
|
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC) |
|
|
Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC) |
|
|
Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
|
|
Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
|
|
Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3shows the comparison.
|
Product Code |
AR6120 |
|||
|
Processor |
4-Core |
4-Core |
16-Core |
16-Core |
|
Forwarding Performance (LAN – > WAN + WAN – > LAN, NAT + ACL + QoS, IMIX) |
2 Gbps |
2 Gbps |
SRU-400H: 10 Gbps SRU-600H: 12 Gbps |
SRU-400H: 10 Gbps SRU-600H: 12 Gbps |
|
IPsec performance (IMIX) |
2 Gbps |
2 Gbps |
SRU-400H: 6 Gbps SRU-600H: 7.5 Gbps |
SRU-400H: 6 Gbps SRU-600H: 7.5 Gbps |
|
Fixed LAN ports |
8 x GE RJ45 (can beconfigured as WAN) |
2 x GE SFP + 3 x GERJ45 (can be configured as WAN) |
||
|
SIC slots |
2 |
4 |
4 |
4 |
|
WSIC slots |
0 (default)/1 (maximum) |
0 (default)/2 (maximum) |
2 (default)/4 (maximum) |
2 (default)/4 (maximum) |
|
XSIC slots |
2(default)/4 (maximum) |
4 (default)/6 (maximum) |
||
|
USB port |
1 x USB 3.0 (compatible with USB2.0) + 1 x USB 2.0 |
1 x USB3.0 (compatible with USB2.0) |
1*USB2.0 |
1*USB2.0 |
|
Auxiliary or consoleport |
1 x RJ45 console port |
1 x RJ45 console port |
1 x RJ45 console port |
1 x RJ45 console port |
|
Memory |
2 GB |
2 GB |
SRU-400H: 8 GB SRU-600H: 16 GB |
SRU-400H: 8 GB SRU-600H: 16 GB |
|
Flash memory |
1 GB/ 512MB |
1 GB |
SRU-400H: 2 GB SRU-600H: 4 GB |
SRU-400H: 2 GB SRU-600H: 4 GB |
|
Routerdimensions, With no mounting bracket installed (H xW x D) |
44.5mm × 390mm ×232.5mm |
44.5 mm x 442 mm x420 mm |
88.1 mm x 442 mm x470 mm |
130.5 mm x 442 mm x470 mm |
|
Router dimensions, With mounting bracket installed (H xW x D) |
44.5mm × 482.6mm ×232.5mm |
44.5 mm x 482.6 mmx 572.5 mm |
88.1 mm x 482.6 mm x470 mm |
130.5 mm x 482.6 mmx 470 mm |
GetMoreInformation
Do you have anyquestionabouttheAR6120
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AR6120 Specification
AR6120 Specification |
|
|
System Parameters |
|
|
Processor |
4-Core |
|
Forwarding Performance (LAN – > WAN + WAN – > LAN,NAT + ACL + QoS,IMIX) |
2 Gbps |
|
IPsec performance (IMIX) |
2 Gbps |
|
Fixed WAN ports |
1 x GE combo + 1 x GE RJ45 + 1 x 10GE SFP+ (compatible with GE SFP) |
|
Fixed LAN ports |
8 x GE RJ45 (can be configured as WAN) |
|
SIC slots |
2 |
|
WSIC slots |
0 (default)/1(maximum) |
|
XSIC slots |
|
|
USB port
|
1 x USB 3.0 (compatible with USB 2.0) + 1 x USB 2.0 |
|
Auxiliary or console port |
1 x RJ45 console port |
|
Memory |
2 GB |
|
Flash memory |
1 GB/ 512MB* |
|
Hot swapping |
Supported |
|
*Note: For AR6120, the chipset of flash is 1GB, and 512MB is used for the users. |
|
|
Dimensions and Weight |
|
|
Router dimensions,With no mounting bracket installed (H x W x D) |
44.5mm × 390mm × 232.5mm
|
|
Router dimensions,With mounting bracket installed (H x W x D) |
44.5mm × 482.6mm × 232.5mm |
|
Packaging dimensions (H x W x D) |
125 mm x 373 mm x 510 mm |
|
Rack |
IEC |
|
Occupied rack space |
1U |
|
Power Specifications, Power Consumption, and Heat Dissipation |
|
|
Rated input voltage range (AC) |
100 V to 240 V |
|
Rated input frequency (AC) |
50 Hz/60 Hz |
|
Maximum input voltage range (AC) |
90 V to 264 V |
|
Maximum input current (AC) |
2 A |
|
Maximum output power (AC) |
60 W |
|
Power supply redundancy |
|
|
Typical power consumption |
18W |
|
Maximum power consumption |
20W |
|
Fan module |
Built-in unpluggable fan modules |
|
Airflow |
Left to right |
|
Noise level |
49.6 dB |
|
Environment Parameters |
|
|
Operating temperature |
0ºC to 45ºC |
|
Operating humidity |
5% to 95% (non-condensing) |
|
Operating altitude |
< 5000 m (16404.2 ft.) |
|
Storage temperature |
–40ºC to +70ºC |
|
Storage altitude |
< 5000 m (16404.2 ft.) |
|
Software Features and Protocols |
|
|
Basic function
|
DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management |
|
LAN |
IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP |
|
WLAN (AC)
|
AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management) |
|
IPv4 unicast routing |
Routing policies, static routes, RIP, OSPF, IS-IS, BGP |
|
IPv6 unicast routing
|
Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ |
|
Basic IPv6 function
|
IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 |
|
IPv6 tunneling |
Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP |
|
Multicast
|
IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD |
|
MPLS |
LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
|
VPN |
IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN |
|
QoS
|
DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, Smart Application Control (SAC) |
|
Security
|
ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication,portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI,broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering |
|
Management and maintenance
|
Upgrade management, device management, web-based network management, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment, NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP, IP accounting, NQA |
|
Safety and Regulatory Standards |
|
|
EMC standards compliance |
CISPR32 Class A EN 55032 Class A CISPR24 EN 55024 ETSI EN 300 386 AS/NZS CISPR32 Class A FCC Part 15 Subpart B Class A ICES 003 Class A IEC 61000-3-2 EN 61000-3-2 IEC 61000-3-3 EN 61000-3-3 GB 9254 VCCI-CISPR32 Class A |
|
Environmental standards compliance |
RoHS REACH WEEE |
|
Safety standards compliance
|
IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No 60950-1 GB 4943.1 |
