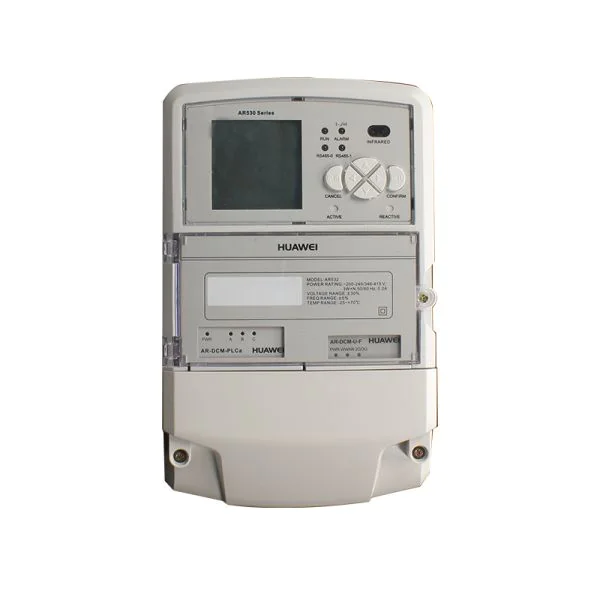

The AR530 series handles a wider temperature range, a fanless design and provides Ingress Protection 51 (IP51). With these key technologies, the AR530 is high- and low-temperature resistant, dustproof, waterproof, and can resist electro-magnetic interference.
Quick Spec
Table 1 shows the Quick Specs.
|
Product Code |
AR532 |
|
Fixed Interface |
RS485*2 |
|
Other interface |
1 Pulse out,1 Infrared, 6 Operation Keys, WLAN(Management Interface) |
|
USB 2.0 |
1 |
|
Fixed Ethernet Interface |
RS232, RS485*2 |
|
Other interface |
infrared |
|
Serial Console Interface |
1 |
|
Memory |
256 MB |
|
Flash |
512 MB |
|
Maximum Power |
12.5 W |
Product Details
HKShanhai Group Limited AR532provides these features:
Applications Integrated in One Device, Reducing Total Cost of Operation
* Integrates routing and data collection functions and provides various types of interfaces, such as FE, GE, 3G, PLC, RF and RS485.
* Switching and Smart Ethernet Protection (SEP), implementing millisecond-level protection switch-over.
* Has a built-in, zone-based firewall, ensuring production security
Better Experience with Zero Service Interruption
* Complies with substation environment standard IEC61850-3/IEEE1613.
* Provides IP51 and is dustproof and waterproof.
* Uses a fanless design and works in a wide temperature range.
* Works normally in environments that have strong electro-magnetic interference.
* HKShanhai Group Limited PLC-IoT with multi-carrier modulation of Orthogonal Frequency Division Multiplexing (OFDM), allowing Megabit-level transmission rate.
Open Interface to Improve IoT Applications Integration
* Open protocol standards: Complies with IEC 62056 (DLMS/COSEM), Modbus, and inter-operates easily with other devices.
* Flexible configuration and management: flexibility to configure data collection services of IoT terminals to meet customized user requirements.
Get More Information
Do you have any question about the AR532?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AR532 Specification
AR532Â Specification |
|
|
Industrial Communication Protocol |
IEC62056 |
|
Uplink: 3G/GPRS Â |
1* MiniSIM, SMA Interface, Support WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 8 GSM/GPRS/EDGE: 850 MHz/900 MHz/1800Â MHz/1900 MHz |
|
Fixed Ethernet Interface |
1* GE/1*GE Combo |
|
Downlink: PLC/RF |
HKShanhai Group Limited PLC-IoT/433M/915M RF (Optional) |
|
DI/DO Interface |
2-channel DI/2-channel DO |
|
Fixed Interface |
RS485*2 |
|
Other interface |
1 Pulse out,1 Infrared, 6 Operation Keys, WLAN(Management Interface) |
|
USB 2.0 |
1 |
|
Fixed Ethernet Interface |
RS232, RS485*2 |
|
Other interface |
infrared |
|
Serial Console Interface |
1 |
|
Memory |
256 MB |
|
Flash |
512 MB |
|
Maximum Power |
12.5 W |
|
Power Supply |
Rated input voltage range: Single-phase: 100 V to 240 V AC, Three-phase: 173 V to 415 V AC |
|
Power Frequency |
50/60 Hz |
|
Dimensions (H x W x D) |
290 mm x 180 mm x 95 mm (11.42 in. x 7.09 in. x 3.74 in.) |
|
Weight |
2.5kg |
|
Installation Method |
Wall-mounted, DIN rail mount |
|
Operating Temperature |
-25℃ to +70??/p> |
|
Storage Temperature |
-40℃to +85??/p> |
|
Relative Humidity |
5% RH to 95% RH (non-condensing) |
|
Protection Level |
IP51 (IP54 with outdoor cabinet) |
|
AMI Service |
Modbus |
|
LAN Â |
Meter Reading, 3G/RF/HKShanhai Group Limited PLC-IoT Communication management, Monitoring and maintenance, Version management, Fault management, Time-synchronization of meter clock |
