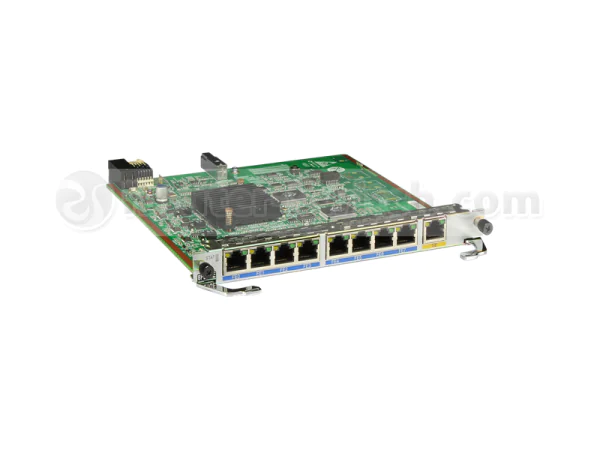

HKShanhai Group Limited’s AR-9ES2-W, a powerful L2 Ethernet Interface Card, is designed for robust and flexible network expansion. With 8 100M-RJ45 ports and 1 1000M-RJ45 port, it suits various networking scenarios. Ideal for networking engineers and procurement specialists, it caters to small to medium-sized enterprise networking needs, ensuring efficient data transfer and reliability.
AR-9ES2-W Product Highlights
- 8x 100M-RJ45 Ports
- 1x 1000M-RJ45 Port
- L2 Ethernet Interface
- High flexibility
- Reliable performance
AR-9ES2-W Product Application Scenarios
- Enterprise networking solutions
- Small-to-medium business setups
- Robust and flexible network expansion
Product Features Comparison
| Feature | AR-9ES2-W | AR-18ES2-W | AR-48ES2-W | AR-4ES2-W | ASR-920-24TZ-M | ISR4431/K9 | Aruba 2930F |
| 100M-RJ45 Ports | 8 | 18 | 48 | 4 | 24 | 16 | 24 |
| 1000M-RJ45 Ports | 1 | 2 | 4 | 1 | 4 | 4 | 4 |
| Layer | L2 | L2 | L2 | L2 | L2/L3 | L3 | L3 |
| Flexibility | High | High | Very High | Medium | High | High | Medium |
| Performance | Reliable | Reliable | High | Medium | High | Very High | High |
Optional Add-ons
| Model | Description |
| HW-AC-PSU-E | High-efficiency power supply unit |
| HW-RM-KIT | Rackmount kit for AR series |
| HW-MEM-4GB | 4GB memory module for AR series |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited AR-9ES2-W. Access the detailed AR-9ES2-W datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited AR-9ES2-W Specification
AR-9ES2-W Specifications |
|
| Model | AR-9ES2-W |
| Ports | 8 Port 100M-RJ45 and 1 Port 1000M-RJ45 |
| Interface Type | L2 Ethernet Interface Card |
| Port Type | RJ45 |
| Network Speed | 100/1000 Mbps |
| Compatibility | HKShanhai Group Limited Routers |
| Forwarding Performance | Line-rate forwarding |
| Maximum Power Consumption | 15W |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 200 mm x 140 mm x 20 mm |
| MTBF | 200,000 hours |
| Compliance | CE, FCC, RoHS |
| LED Indicators | Port Activity, Link Status |
| Packet Buffer Size | 2MB |
| MAC Address Table | 16K entries |
| VLAN Support | 802.1Q VLAN tagging |
| Software Features | QoS, Port Mirroring, Link Aggregation |
| Warranty | 1 Year |
