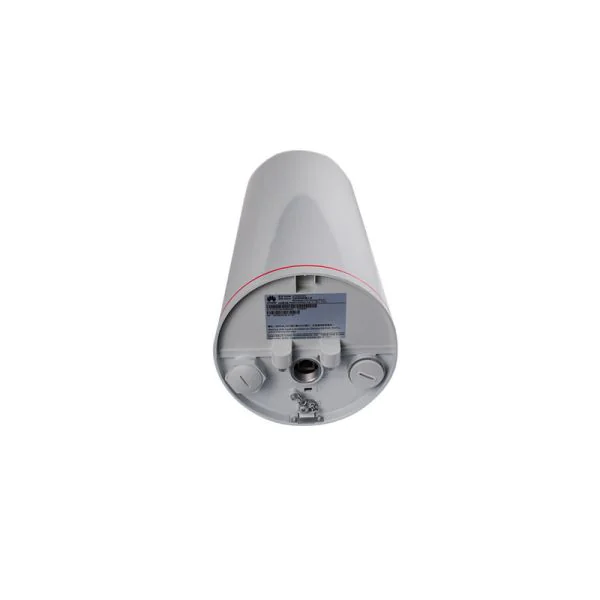

AP8182DN, HKShanhai Group Limited AP8182DN Outdoor Access Point, 4×4 MU-MIMO/4 Spatial Streams/External 8x N-Type Antenna

AP8182DN Specification

Dimensions (length x diameter)

387 mm x φ165 mm

Weight

3.9 kg

Interface type

1 x 10/100/1000M self-adaptive Ethernet interface (RJ45)

1 x 100/1000M/2.5G/5G self-adaptive Ethernet interface (RJ45)

1 x Management console port (RJ45)

1 x SFP fiber interface

Bluetooth

BLE4.1

LED indicator

Indicates the power-on, startup, running, alarm, and fault states of the system.

Power input

PoE power supply: in compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input.

PoE out

15.4 W (only supported by GE interfaces)

Maximum power consumption

802.3bt power supply: 45 W (excluding the output power of the PoE_OUT port)

802.3at power supply: 25.5 W (The PoE_OUT function and GE/POE_OUT ports are unavailable, 5GE and SFP are mutually exclusive.)

The actual maximum power consumption depends on local laws and regulations.

In 802.3at power supply mode, the radio power is reduced, and the 2.4 GHz radio works in 2×4 MIMO mode.

Operating temperature

??span>40°C to +65°C

Storage temperature

??span>40°C to +85°C

Operating humidity

0% to 100% (non-condensing)

Dustproof and waterproof grade

IP68

Wind survivability

Up to 165 mph

Altitude

??span>60 m to 5,000 m

Atmospheric pressure

53 kPa to 106 kPa

Antenna type

External antennas (with eight type N connectors)

Maximum number of SSIDs for each radio

16

Maximum number of users

??512

Maximum transmit power

2.4G: 28 dBm (combined power)

5G: 27 dBm (combined power)

The actual transmit power depends on local laws and regulations.

Power increment

1 dBm

AP8082DN receiver sensitivity

2.4 GHz 802.11b ：??/span>102 dBm @ 1 Mbit/s；??/span>90dBm@ 11 Mbit/s

2.4 GHz 802.11g??/span>-93dBm @ 6 Mbit/s??-74dBm @ 54 Mbit/s

2.4 GHz 802.11n (HT20)??/span>-94 dBm @ MCS0??/span>-72dBm @ MCS31

2.4 GHz 802.11n(HT40)??/span>-91 dBm @ MCS0??-69 dBm @ MCS31

5 GHz 802.11a ??/span>-96 dBm @ 6 Mbit/s??-76dBm @ 54 Mbit/s

5 GHz 802.11n (HT20)??/span>-96 dBm @ MCS0??-74 dBm @ MCS31

5 GHz 802.11n (HT40)??/span>-93 dBm @ MCS0??-73 dBm @ MCS31

5 GHz 802.11ac (VHT20)??/span>-95 dBm @ MCS0NSS1??-71 dBm @ MCS8NSS4

5 GHz 802.11ac (VHT40)??/span>-93 dBm @ MCS0NSS1??-67 dBm @ MCS9NSS4

5 GHz 802.11ac (VHT80)??/span>-90 dBm @ MCS0NSS1??-64 dBm @ MCS9NSS4

5 GHz 802.11ac (VHT160)??/span>-86 dBm @ MCS0NSS1??-58 dBm @ MCS9NSS2

WLAN features

Compliance with IEEE 802.11a/b/g/n/ac/ac Wave 2

Dual-5G for the AP8182DN, and maximum rate of 2.53 Gbit/s (AP8082DN) or 3.46 Gbit/s (AP8182DN)

Maximum ratio combining (MRC)

Space time block code (STBC)

Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD)

Beamforming

MU-MIMO

Low-density parity-check (LDPC)

Maximum-likelihood detection (MLD)

Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)

802.11 dynamic frequency selection (DFS)

Short guard interval (GI) in 20 MHz, 40 MHz, 80 MHz, 160 MHz, and 80+80 MHz modes

Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority- based data processing and forwarding

Automatic and manual rate adjustment

WLAN channel management and channel rate adjustment

Automatic channel scanning and interference avoidance

Service set identifier (SSID) hiding

Signal sustain technology (SST)

Unscheduled automatic power save delivery (U-APSD)

Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode

Automatic login in Fit AP mode

Extended Service Set (ESS) in Fit AP mode

Wireless distribution system (WDS) in Fit AP mode

Mesh networking in Fit AP mode

Multi-user CAC

Hotspot2.0

802.11k and 802.11v smart roaming

802.11r fast roaming (??50 ms)

WAN authentication escape. In local forwarding mode, this function retains the online state of existing

STAs and allows access of new STAs when APs are disconnected from an AC, ensuring service continuity.

Network features

Compliance with IEEE 802.3ab

Auto-negotiation of the rate and duplex mode and automatic switchover between the Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)

Compliance with IEEE 802.1q

SSID-based VLAN assignment

VLAN trunk on uplink Ethernet ports

Management channel of the AP uplink port in tagged and untagged mode

DHCP client, obtaining IP addresses through DHCP

Tunnel data forwarding and direct data forwarding

STA isolation in the same VLAN

Access control lists (ACLs)

Link Layer Discovery Protocol (LLDP)

Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP mode

Unified authentication on the AC in Fit AP mode

AC dual-link backup in Fit AP mode

Network Address Translation (NAT) in Fat AP mode

IPv6 in Fit AP mode

Soft Generic Routing Encapsulation (GRE)

IPv6 Source Address Validation Improvements (SAVI)

QoS features

Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to implement priority-based data processing and forwarding

WMM parameter management for each radio

WMM power saving

Priority mapping for upstream packets and flow-based mapping for downstream packets

Queue mapping and scheduling

User-based bandwidth limiting

Adaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and radio environment) to improve user experience

Smart Application Control (SAC) in Fit AP mode

Airtime scheduling

Support for Microsoft Lync APIs and high voice call quality through Lync API identification and scheduling

Security features

Open system authentication

WEP authentication/encryption using a 64-bit, 128-bit, or 152-bit encryption key

WPA/WPA2-PSK authentication and encryption (WPA/WPA2 personal edition)

WPA/WPA2-802.1x authentication and encryption (WPA/WPA2 enterprise edition)

WPA-WPA2 hybrid authentication

WAPI authentication and encryption

Wireless intrusion detection system (WIDS) and wireless intrusion prevention system (WIPS), including rogue device detection and countermeasure, attack detection and dynamic blacklist, and STA/AP blacklist and whitelist

802.1x authentication, MAC address authentication, and Portal authentication

DHCP snooping

Dynamic ARP Inspection (DAI)

IP Source Guard (IPSG)

802.11w Protected Management Frames (PMFs)

Application identification

Maintenance features

Unified management and maintenance on the AC in Fit AP mode

Automatic login and configuration loading, and plug-and-play (PnP) in Fit AP mode

WDS zero-configuration deployment in Fit AP mode

Mesh network zero-configuration deployment in Fit AP mode

Batch upgrade in Fit AP mode

Telnet

STelnet using SSH v2

SFTP using SSH v2

Local AP management through the serial interface

Web local AP management through HTTP or HTTPS in Fat AP mode

Real-time configuration monitoring and fast fault location using the NMS

SNMP v1/v2/v3 in Fat AP mode

System status alarm

Network Time Protocol (NTP) in Fat AP mode

BYOD

The AP supports bring your own device (BYOD) only in Fit AP mode.

Identifies the device type according to the organizationally unique identifier (OUI) in the MAC address.

Identifies the device type according to the user agent (UA) information in an HTTP packet.

Identifies the device type according to DHCP options.

The RADIUS server delivers packet forwarding, security, and QoS policies according to the device type carried in the RADIUS authentication and accounting packets.

Location service

The AP supports the locating service only in Fit AP mode.

Locates tags manufactured by AeroScout or Ekahau.

Locates Wi-Fi terminals.

Works with eSight to locate rogue devices.

Spectrum analysis

The AP supports spectrum analysis only in Fit AP mode.

Identifies interference sources such as baby monitors, Bluetooth devices, digital cordless phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4 GHz and 5 GHz frequency bands), wireless game controllers, and microwaves.

Works with eSight to perform spectrum analysis on interference sources.
