HKShanhai Group Limited AP7110DN-AGN-DC is indoor AP product with dual-band 2.4 GHz/5 GHz frequencies connectivity and DC power supply. It operates as an 802.11a/b/g/n product and it has 3 x 3 MIMO which means that the total throughput of this product can be up to 900Mb/s. According to the energy efficient, this product has been proves that it was between 24% and 48% more efficient in terms of throughput than its competitors.
Quick Specs

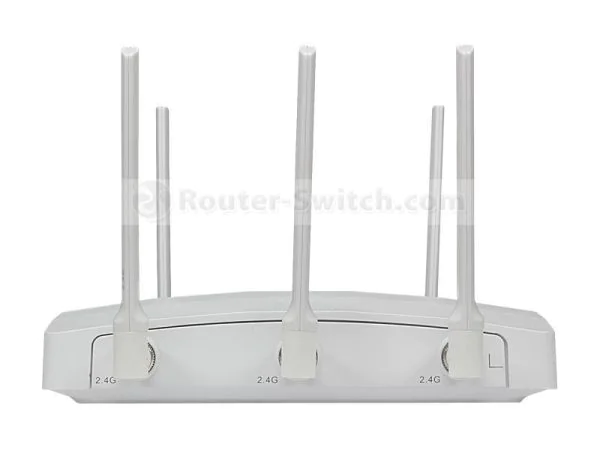

Figure 1 shows the appearance of the AP7110DN-AGN-DC.
Table 1 shows the quick specs.
|
Product Number |
AP7110DN-AGN-DC |
|
AC/DC adapter |
Supported |
|
Power Input |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3at) |
|
Maximum Power Consumption |
15.7W |
|
Operating Temperature |
??0??to 55??/p> |
|
Antenna Type/Antenna Gain |
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi, 5 GHz: 4 dBi |
|
Maximum Number of Users |
??256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
|
Radio Protocols |
802.11a/b/g/n |
|
Maximum Rate |
900 Mbit/s |
|
Dimensions (H x W x D) |
200 mm x 200 mm x 45 mm |
|
Weight |
1.0 kg |
Product Details

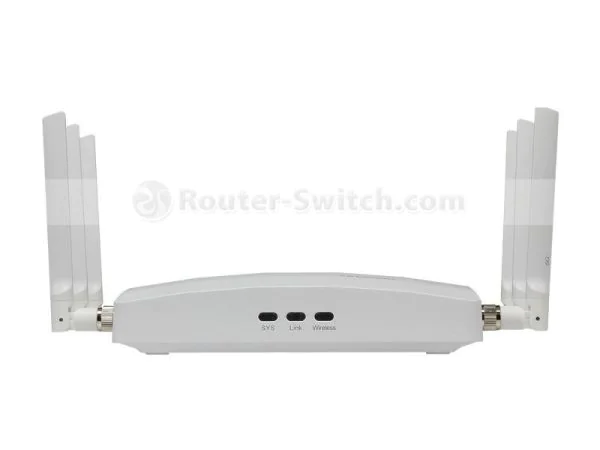

Figure 2 shows the ports of AP7110DN-AGN-DC.
Note:
|
??/p> |
Ground point: Connects to a ground cable |
|
??/p> |
Console interface. |
|
??/p> |
ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports the PoE power supply. |
|
??/p> |
Default button: restores factory settings if you hold down the button more than 3s. |
|
??/p> |
Power input interface: 12 V DC. |
|
??/p> |
Lock interface: protects the AP against theft. |
Compare to Similar Items
Table 2 shows the comparison of AP7110DN-AGN and AP7110DN-AGN-DC.
|
Model |
AP7110DN-AGN-DC |
|
|
AC/DC adapter |
N/A |
Supported |
|
Antenna Type/Antenna Gain |
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi, 5 GHz: 4 dBi |
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi, 5 GHz: 4 dBi |
|
Maximum Number of Users |
??256 |
??256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
25 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
3 x 3:3 |
|
Radio Protocol |
802.11a/b/g/n |
802.11a/b/g/n |
|
Maximum Speed |
900 Mbit/s |
900 Mbit/s |
Get more information
Do you have any question of HKShanhai Group Limited AP7110DN-AGN-DC access point
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP7110DN-AGN-DC Specification
AP7110DN-AGN-DC Specifications |
||||
|
Technical |
||||
|
Dimensions (H × W × D) |
1.7 in. x 7.8 in. x 7.8 in. (45 mm x 200 mm x 200 mm) |
|||
|
Weight |
2.2 lb. (1.0 kg) |
|||
|
System memory |
|
|||
|
Power |
||||
|
AC/DC adapter |
Supported |
|||
|
Power input |
DC 12V ± 10% POE Power: -48V DC. PoE function IEEE compliant802.3at |
|||
|
Maximum power consumption |
15.7W Note: Maximum power consumption depends on local laws and regulations |
|||
|
Environment |
||||
|
Operating temperature |
14oF to 131oF (-10oC to 55oC) |
|||
|
Storage temperature |
-40oF to 158oF (-4oC to 7oC) |
|||
|
Humidity |
5% to 95% (Non-condensing) |
|||
|
Waterproof grade |
IP41 |
|||
|
Altitude |
??0m to 5,000m |
|||
|
Radio frequency specifications |
||||
|
Antenna Type |
Removable RP-SMA antenna |
|||
|
Antenna Gain |
·2.4G: 2.5 dBi ·5G: 4 dBi |
|||
|
Maximum Number of Concurrent Users |
??256 |
|||
|
Maximum Transmit Power |
20 dBm You can lower transmit power to 20 dB maximum in 1 dB increments Note: Actual transmit power depends on local laws |
|||
|
Maximum Number of Non-overlapping Channels |
2.4 GHz 802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 5 GHz 802.11a ·20 MHz: 5 802.11n ·20 MHz: 5 ·40 MHz: 2 Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status |
|||
|
Channel Rates |
802.11b: 1, 2, 5.5, and 11 Mbit/s |
|||
|
802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s |
||||
|
802.11n data rate: 2.4 GHz and 5 GHz |
||||
|
GI2 = 800 ns |
GI = 400 ns |
|||
|
20 MHz (Mbit/s) |
40 MHz (Mbit/s) |
20 MHz (Mbit/s) |
40 MHz (Mbit/s) |
|
|
6.5 @ MCS10 |
13.5 @ MCS0 |
7.2 @ MCS0 |
15 @ MCS0 |
|
|
13 @ MCS1 |
27 @ MCS1 |
14.4 @ MCS1 |
30 @ MCS1 |
|
|
19.5 @ MCS2 |
40.5 @ MCS2 |
21.7 @ MCS2 |
45 @ MCS2 |
|
|
26 @ MCS3 |
54 @ MCS3 |
28.9 @ MCS3 |
60 @ MCS3 |
|
|
39 @ MCS4 |
81 @ MCS4 |
43.3 @ MCS4 |
90 @ MCS4 |
|
|
52 @ MCS5 |
108 @ MCS5 |
57.8 @ MCS5 |
120 @ MCS5 |
|
|
58.5 @ MCS6 |
121.5 @ MCS6 |
65 @ MCS6 |
135 @ MCS6 |
|
|
65 @ MCS7 |
135 @ MCS7 |
72.2 @ MCS7 |
150 @ MCS7 |
|
|
13 @ MCS8 |
27 @ MCS8 |
14.4 @ MCS8 |
30 @ MCS8 |
|
|
26 @ MCS9 |
54 @ MCS9 |
28.9 @ MCS9 |
60 @ MCS9 |
|
|
39 @ MCS10 |
81 @ MCS10 |
43.3 @ MCS10 |
90 @ MCS10 |
|
|
52 @ MCS11 |
108 @ MCS11 |
57.8 @ MCS11 |
120 @ MCS11 |
|
|
78 @ MCS12 |
162 @ MCS12 |
86.7 @ MCS12 |
180 @ MCS12 |
|
|
104 @ MCS13 |
216 @ MCS13 |
115.6 @ MCS13 |
240 @ MCS13 |
|
|
117 @ MCS14 |
243 @ MCS14 |
130 @ MCS14 |
270 @ MCS14 |
|
|
130 @ MCS15 |
270 @ MCS15 |
144.4 @ MCS15 |
300 @ MCS15 |
|
|
19.5 @ MCS16 |
40.5 @ MCS16 |
21.7 @ MCS16 |
45 @ MCS16 |
|
|
39 @ MCS17 |
81 @ MCS17 |
43.3 @ MCS17 |
90 @ MCS17 |
|
|
58.5 @ MCS18 |
121.5 @ MCS18 |
65 @ MCS18 |
135 @ MCS18 |
|
|
78 @ MCS19 |
162 @ MCS19 |
86.7 @ MCS19 |
180 @ MCS19 |
|
|
117 @ MCS20 |
243 @ MCS20 |
130 @ MCS20 |
270 @ MCS20 |
|
|
156 @ MCS21 |
324 @ MCS21 |
173.3 @ MCS21 |
360 @ MCS21 |
|
|
175.5 @ MCS22 |
364.5 @ MCS22 |
195 @ MCS22 |
405 @ MCS22 |
|
|
195 @ MCS23 |
405 @ MCS23 |
216.7 @ MCS23 |
450 @ MCS23 |
|
|
Note: Modulation Coding Scheme (MCS) index determines: Spatial flow quantity Modulation Coding rate Data rate Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets |
||||
|
Receiver Sensitivity |
2.4 GHz 802.11b (CCK) -97 dBm @ 1 Mbit/s -92 dBm @ 2 Mbit/s -93 dBm @ 5.5 Mbit/s -89 dBm @ 11 Mbit/s |
2.4 GHz 802.11g (non-HT20) -93 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -90 dBm @ 12 Mbit/s -88 dBm @ 18 Mbit/s -84 dBm @ 24 Mbit/s -81 dBm @ 36 Mbit/s -77 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20): -93 dBm @ MCS0 -90 dBm @ MCS1 -88 dBm @ MCS2 -82 dBm @ MCS3 -79 dBm @ MCS4 -75 dBm @ MCS5 -73 dBm @ MCS6 -72 dBm @ MCS7 -87 dBm @ MCS8 -86 dBm @ MCS9 -86 dBm @ MCS10 -83 dBm @ MCS11 -79 dBm @ MCS12 -75 dBm @ MCS13 -74 dBm @ MCS14 -73 dBm @ MCS15 -87 dBm @ MCS16 -86 dBm @ MCS17 -86 dBm @ MCS18 -83 dBm @ MCS19 -79 dBm @ MCS20 -75 dBm @ MCS21 -74 dBm @ MCS22 -73 dBm @ MCS23 |
2.4 GHz 802.11n (HT40): -86 dBm @ MCS0 -86 dBm @ MCS1 -84 dBm @ MCS2 -80 dBm @ MCS3 -77 dBm @ MCS4 -72 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -86 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -80 dBm @ MCS11 -77 dBm @ MCS12 -72 dBm @ MCS13 -71 dBm @ MCS14 -70 dBm @ MCS15 -86 dBm @ MCS16 -86 dBm @ MCS17 -84 dBm @ MCS18 -80 dBm @ MCS19 -77 dBm @ MCS20 -72 dBm @ MCS21 -71 dBm @ MCS22 -70 dBm @ MCS23 |
|
5 GHz 802.11a (non-HT20) -93 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -75 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s |
5 GHz 802.11n (HT20) -93 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -80 dBm @ MCS11 -77 dBm @ MCS12 -72 dBm @ MCS13 -70 dBm @ MCS14 -69 dBm @ MCS15 -89 dBm @ MCS16 -86 dBm @ MCS17 -84 dBm @ MCS18 -80 dBm @ MCS19 -77 dBm @ MCS20 -72 dBm @ MCS21 -70 dBm @ MCS22 -69 dBm @ MCS23 |
5 GHz 802.11n (HT40) -87 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -79 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -68 dBm @ MCS6 -67 dBm @ MCS7 -86 dBm @ MCS8 -83 dBm @ MCS9 -81 dBm @ MCS10 -76 dBm @ MCS11 -73 dBm @ MCS12 -69 dBm @ MCS13 -68 dBm @ MCS14 -66 dBm @ MCS15 -86 dBm @ MCS16 -83 dBm @ MCS17 -81 dBm @ MCS18 -76 dBm @ MCS19 -73 dBm @ MCS20 -69 dBm @ MCS21 -68 dBm @ MCS22 -66 dBm @ MCS23 |
