HKShanhai Group Limited AP6610DN-AGN performance-enhanced 802.11n outdoor APs provide dual-band connectivity for wireless throughput up to 600 Mbit/s. Industrial-grade protection includes a dustproof and waterproof hardened metal casing that is high- and low-temperature resistant. These APs are designed for challenging outdoor or industrial high-demand/density environments, such as pedestrian areas and factories. They also work well in bridge and wireless backhaul applications for wireless harbor, video surveillance, and train or ground vehicle scenarios.
Quick Specs
Table 1 shows the quick specs.
|
Product Number |
AP6610DN-AGN |
|
Power Input |
AC: 90V to 264V |
|
Maximum Power Consumption |
30W |
|
Operating Temperature |
??0°C to 60°C |
|
Antenna Type |
Dual-polarization antenna or common outdoor antenna |
|
Maximum Number of Users |
??256 |
|
Maximum Transmit Power |
30 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
|
Highest Rate |
600 Mbit/s |
|
Dimensions (H × W × D) |
255 mm x 255 mm x 83 mm |
|
Net Weight |
5.8 lb. (2.65 kg) |

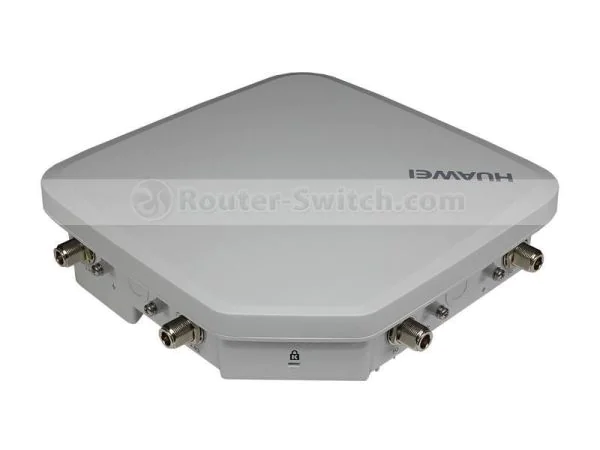

Product Details

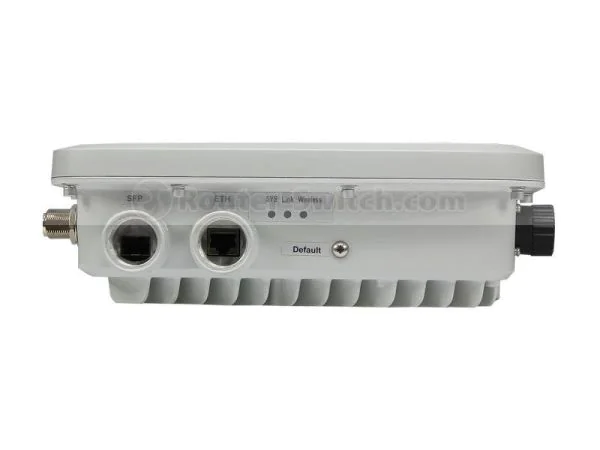

Figure 1 shows the interfaces of AP6610DN-AGN.
Note:
|
??/p> |
SFP: an optical interface. |
|
??/p> |
ETH: a 10/100/1000M interface, which connects to the wired Ethernet. |
|
??/p> |
Default button: restores the factory settings if you remove the screw and hold down the button more than 3s from the hole. |
Figure 2 shows the other interfaces of AP6610DN-AGN.
Note:
|
??/p> |
Power input interface |
|
??/p> |
Ground point: connects to a ground cable. |

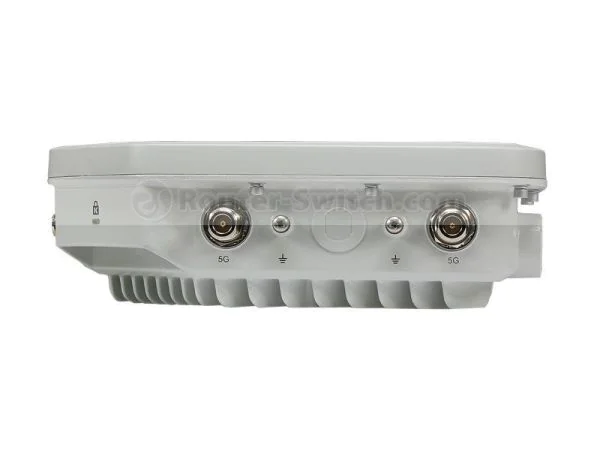

Figure 3 shows the antennas interfaces of AP6610DN-AGN.
Note:
|
??/p> |
2 × 2.4 GHz antenna interface |
|
??/p> |
2 × 5 GHz antenna interface |
The Supported Antennas
Table 2 shows the recommended antennas of AP6610DN-AGN.
|
Model |
Description |
|
Omnidirection Antenna,2400-2500MHz,11dBi,vertical,100W,2r,N Female, bracket included |
|
|
Directional Panel Antenna,2400-2500MHz,14.5dBi,120deg,vertical,100W,N Female, bracket included |
|
|
Directional Panel Antenna,2400-2500Mhz,17dBi,90deg,vertical,100W,N Female, bracket included |
|
|
Directional Antenna,2400-2500MHz,12dBi,60deg,+/-45deg,0r,5W,WithBracket, 2*N-Female,250*155*60mm |
|
|
Directional Antenna,5150~5850MHz,>11dBi,60deg,+/-45deg,5W,with bracket,2*N-female,230*145*55mm |
|
|
Directional Antenna,5150~5850MHz,18dBi,15deg,+/-45deg,5W,with bracket,2*N female,250*250*25mm |
|
|
Directional Antenna,2400~2500MHz,>17+/-0.5dBi,60deg,+/-45deg,0r,200W,N-Female*2,with bracket,875*176*63mm |
|
|
Directional Antenna,2400~2500MHz,15+/-1dBi,120deg,Vertical polarization,0r,200W,N-Female,with bracket,1140*114*54mm |
|
|
Directional Antenna,2400~2500MHz,14dBi,30deg,+/-45deg,0r,5W,with bracket, N-Female*2,250*250*25mm |
|
|
Directional Antenna,5150~5850MHz,14dBi,30deg,+/-45deg,0r,5W,with bracket, N-Female*2 |
|
|
Directional Antenna,5150~5850MHz,15+/-1dBi,110deg,Vertical polarization,0r,200W,N-Female,with bracket,547*250*18mm |
|
|
Isotropic Antenna,2400~2500MHz,>8dBi,Vertical polarization,Isotropic,200W,0r,N-Female,with bracket |
Compare to Similar Items
Table 3 shows the comparison of AP6610DN-AGN and AP6510DN-AGN.
|
Models |
AP6610DN-AGN |
|
|
Power Input |
AC: 90V to 264V |
PoE: in compliance with IEEE 802.3at |
|
Maximum Power Consumption |
30W |
25.5W |
|
Operating Temperature |
??0°C to 60°C |
??0°C to 60°C |
|
Antenna Type/Antenna Gain |
Dual-polarization antenna or common outdoor antenna |
Dual-polarization antenna or common outdoor antenna |
|
Maximum Transmit Power |
30 dBm (combined power) |
29 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
802.11a/b/g/n |
|
Highest Rate |
600 Mbit/s |
600 Mbit/s |
Get more information
Do you have any question of HKShanhai Group Limited AP6610DN-AGN outdoor access point
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP6610DN-AGN Specification
AP6610DN-AGN Specifications |
||||
|
Technical |
||||
|
Dimensions (H × W × D) |
3.2 in. x 10 in. x 10 in. (83 mm x 255 mm x 255 mm) |
|||
|
Weight |
5.8 lb. (2.65 kg) |
|||
|
System memory |
128 MB DDR2 32 MB Flash |
|||
|
Power |
||||
|
Power input |
AC, 90V to 264V |
|||
|
Maximum power consumption |
30W Note: Maximum power consumption depends on local laws |
|||
|
Environment |
||||
|
Operating temperature |
-40oF to 140oF (-40oC to 60oC) |
|||
|
Storage temperature |
-40oF to 158oF (-40oC to 70oC) |
|||
|
Humidity |
0% to 100% (Non-condensing) |
|||
|
Waterproof grade |
IP67 |
|||
|
Altitude |
196.8 ft. to 16,404.1 ft. (-60m to 5,000m) |
|||
|
Radio |
||||
|
Antenna Type |
Dual-polarization or common outdoor |
|||
|
Maximum Number of Concurrent Users |
128 |
|||
|
Maximum Transmit Power |
2.4 GHz: 27 dBm 5 GHz: 24 dBm You can adjust the transmit power to the maximum of 20 dB in 1 dB steps. Note: Actual transmit power depends on local laws and regulations. |
|||
|
Maximum Number of Non-overlapping Channels |
2.4 GHz 802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 5 GHz 802.11a ·20 MHz: 5 802.11n ·20 MHz: 5 ·40 MHz: 2 Note: The number of non-overlapping channels allowed varies in different countries. |
|||
|
Channel Rates |
802.11b: 1, 2, 5.5, and 11 Mbit/s |
|||
|
802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s |
||||
|
802.11n data rate: (2.4 GHz and 5 GHz) |
||||
|
GI2 = 800 ns |
GI = 400 ns |
|||
|
20 MHz (Mbit/s) |
40 MHz (Mbit/s) |
20 MHz (Mbit/s) |
40 MHz (Mbit/s) |
|
|
6.5 @ MCS10 |
13.5 @ MCS0 |
7.2 @ MCS0 |
15 @ MCS0 |
|
|
13 @ MCS1 |
27 @ MCS1 |
14.4 @ MCS1 |
30 @ MCS1 |
|
|
19.5 @ MCS2 |
40.5 @ MCS2 |
21.7 @ MCS2 |
45 @ MCS2 |
|
|
26 @ MCS3 |
54 @ MCS3 |
28.9 @ MCS3 |
60 @ MCS3 |
|
|
39 @ MCS4 |
81 @ MCS4 |
43.3 @ MCS4 |
90 @ MCS4 |
|
|
52 @ MCS5 |
108 @ MCS5 |
57.8 @ MCS5 |
120 @ MCS5 |
|
|
58.5 @ MCS6 |
121.5 @ MCS6 |
65 @ MCS6 |
135 @ MCS6 |
|
|
65 @ MCS7 |
135 @ MCS7 |
72.2 @ MCS7 |
150 @ MCS7 |
|
|
13 @ MCS8 |
27 @ MCS8 |
14.4 @ MCS8 |
30 @ MCS8 |
|
|
26 @ MCS9 |
54 @ MCS9 |
28.9 @ MCS9 |
60 @ MCS9 |
|
|
39 @ MCS10 |
81 @ MCS10 |
43.3 @ MCS10 |
90 @ MCS10 |
|
|
52 @ MCS11 |
108 @ MCS11 |
57.8 @ MCS11 |
120 @ MCS11 |
|
|
78 @ MCS12 |
162 @ MCS12 |
86.7 @ MCS12 |
180 @ MCS12 |
|
|
104 @ MCS13 |
216 @ MCS13 |
115.6 @ MCS13 |
240 @ MCS13 |
|
|
117 @ MCS14 |
243 @ MCS14 |
130 @ MCS14 |
270 @ MCS14 |
|
|
130 @ MCS15 |
270 @ MCS15 |
144.4 @ MCS15 |
300 @ MCS15 |
|
|
Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate GI Indicates the period in nanoseconds the radio listens between packets |
||||
|
Receiver Sensitivity |
2.4 GHz 802.11b (CCK) ·-97 dBm @ 1 Mbit/s ·-92 dBm @ 2 Mbit/s ·-92 dBm @ 5.5 Mbit/s ·-90 dBm @ 11 Mbit/ss
5 GHz 802.11a (Non-HT20) ·-90 dBm @ 6 Mbit/s |
2.4 GHz 802.11g (Non-HT20) ·-92 dBm @ 6 Mbit/s ·-91 dBm @ 9 Mbit/s ·-90 dBm @ 12 Mbit/s ·-87 dBm @ 18 Mbit/s ·-83 dBm @ 24 Mbit/s ·-80 dBm @ 36 Mbit/s ·-76 dBm @ 48 Mbit/s ·-74 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20) ·-92 dBm @ MCS0/8 ·-89 dBm @ MCS1/9 ·-86 dBm @ MCS2/10 ·-82 dBm @ MCS3/11 ·-79 dBm @ MCS4/12 ·-74 dBm @ MCS5/13 ·-73 dBm @ MCS6/14 ·-71 dBm @ MCS7/15 |
2.4 GHz 802.11n (HT40) ·-89 dBm @ MCS0/8 ·-86 dBm @ MCS1/9 ·-83 dBm @ MCS2/10 ·-79 dBm @ MCS3/11 ·-76 dBm @ MCS4/12 ·-72 dBm @ MCS5/13 ·-70 dBm @ MCS6/14 ·-68 dBm @ MCS7/15 |
|
5 GHz 802.11a (Non-HT20)
|
5 GHz 802.11n (HT20) ·-84 dBm @ MCS0/8 ·-81 dBm @ MCS1/9 ·-79 dBm @ MCS2/10 ·-76 dBm @ MCS3/11 ·-72 dBm @ MCS4/12 ·-68 dBm @ MCS5/13 ·-67 dBm @ MCS6/14 ·-67 dBm @ MCS7/15 |
5 GHz 802.11n (HT40) ·-81 dBm @ MCS0/8 ·-78 dBm @ MCS1/9 ·-76 dBm @ MCS2/10 ·-73 dBm @ MCS3/11 ·-69 dBm @ MCS4/12 ·-65 dBm @ MCS5/13 ·-64 dBm @ MCS6/14 ·-64 dBm @ MCS7/15 |
