HKShanhai Group Limited AP5130DN-USA Access Point delivers high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums. It supports AC/DC adapter (US). It’s a United States dedicated model.
Quick Specs

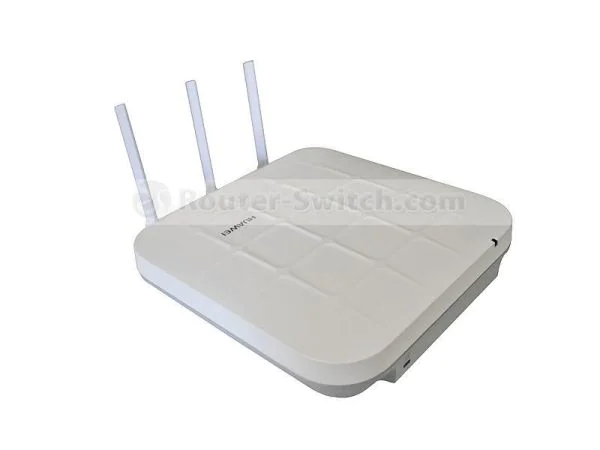

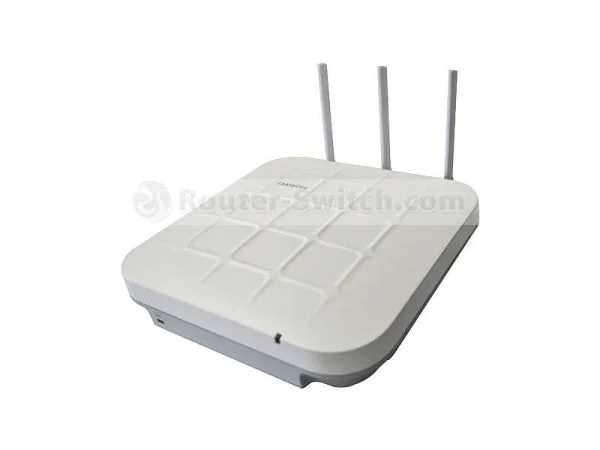

Figure 1 shows the appearance of the AP5130DN-USA.
Table 1 shows the quick specs.
|
Product Number |
AP5130DN-USA |
|
Bundle |
AC/DC adapter(US),United States |
|
Antenna Type/Antenna Gain |
Removable RP-SMA antenna/2.4 GHz: 3.5 dBi, 5 GHz: 4 dBi |
|
Maximum Number of Users |
??256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
|
Radio Protocol |
802.11a/b/g/n/ac |
|
Maximum Speed |
1.75 Gbit/s |
|
Power Input |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3af/at) |
|
Maximum Power Consumption |
12.95W |
|
Operating Temperature |
??0??to 50??/p> |
|
Dimensions (H x W x D) |
220 mm x 220 mm x 53 mm |
|
Net Weight |
2.2 lb. (1 kg) |
Product Details
Figure 2 shows the ports of AP5130DN-USA.
Note:
|
??/p> |
Default button: Restores factory settings if you hold down the button more than three seconds |
|
??/p> |
Console interface |
|
??/p> |
GE1: 10M/100M/1,000M interface, connects to the wired Ethernet |
|
??/p> |
GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply |
|
??/p> |
Power input interface: 12V DC |
|
??/p> |
Security slot: Connects to a security lock and protects the AP against theft |
|
??/p> |
Dual-band antenna port |
Compare to Similar Items
Table 2 shows the comparison of AP5130DN-USA and AP5130DN.
|
Model |
AP5130DN-USA |
|
|
Dedicated Area |
United States |
N/A |
|
Maximum Number of Users |
??256 |
??256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
25 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
3 x 3:3 |
|
Radio Protocol |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
|
Maximum Speed |
1.75 Gbit/s |
1.75 Gbit/s |
Get more information
Do you have any question of HKShanhai Group Limited AP5130DN-USA access point?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP5130DN-USA Specification
AP5130DN-USA Specifications |
||||
|
Dedicated Area |
United States |
|||
|
Technical |
||||
|
Dimensions (H × W × D) |
8.7 in. x 8.7 in. x 2.1 in. (220 mm x 220 mm x 53 mm) |
|||
|
Weight |
2.2 lb. (1 kg) |
|||
|
System memory |
256 MB DDR2 32 MB flash memory |
|||
|
Power |
||||
|
Power input |
DC 12V ± 10% PoE Power: -48V DC PoE function in compliance with IEEE 802.3af and 802.3at |
|||
|
Maximum power consumption |
12.95W Note: Actual maximum power consumption depends on local laws and regulations. |
|||
|
Environment |
||||
|
Operating temperature |
14oF to 122oF (-10oC to 50oC) |
|||
|
Storage temperature |
-40oF to 158oF (-40oC to 70oC) |
|||
|
Humidity |
5% to 95% (Non-condensing) |
|||
|
Waterproof grade |
IP41 |
|||
|
Altitude |
-196.9 ft. to 13,123.4 ft. (-60m to 5,000m) |
|||
|
Radio specifications |
||||
|
Antenna Type |
Built-in |
|||
|
Antenna Gain |
2.4G: 3.5 dBi 5G: 4 dBi |
|||
|
Maximum Number of Concurrent Users |
??256 |
|||
|
Maximum Transmit Power |
20 dBm Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations |
|||
|
Maximum Number of Non-overlapping Channels |
2.4 GHz 802.11b/g 20 MHz: 3 802.11n 20 MHz: 3 40 MHz: 1 |
5 GHz 802.11a 20 MHz: 5 802.11n 20 MHz: 5 40 MHz: 2 802.11ac 20 MHz: 5 40 MHz: 2 80 MHz: 1 |
||
|
Channel Rates |
802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5 GHz): 6.5 Mbit/s to 1,300 Mbit/s |
|||
|
Receiver Sensitivity |
2.4 GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s |
2.4 GHz 802.11g (non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20) -91 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -88 dBm @ MCS9 -86 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 |
2.4 GHz 802.11n (HT40) -88 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15 |
|
5 GHz 802.11a (non-HT20) -89 dBm @ 6 Mbit/s -88 dBm @ 9 Mbit/s -86 dBm @ 12 Mbit/s -83 dBm @ 18 Mbit/s -80 dBm @ 24 Mbit/s -77 dBm @ 36 Mbit/s -73 dBm @ 48 Mbit/s -71 dBm @ 54 Mbit/s |
5 GHz 802.11n (HT20) -90 dBm @ MCS0 -85 dBm @ MCS1 -84 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -88 dBm @ MCS9 -85 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 |
5 GHz 802.11n (HT40) -85 dBm @ MCS0 -82 dBm @ MCS1 -79 dBm @ MCS2 -75 dBm @ MCS3 -72 dBm @ MCS4 -68 dBm @ MCS5 -66 dBm @ MCS6 -64 dBm @ MCS7 -87 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15 |
||
|
5 GHz 802.11ac (VTH20) -89 dBm @ MCS0NSS1 -86 dBm @ MCS1NSS1 -84 dBm @ MCS2NSS1 -80 dBm @ MCS3NSS1 -77 dBm @ MCS4NSS1 -73 dBm @ MCS5NSS1 -71 dBm @ MCS6NSS1 -70 dBm @ MCS7NSS1 -65 dBm @ MCS8NSS1 |
5 GHz 802.11ac (VTH40) -85 dBm @ MCS0NSS1 -83 dBm @ MCS1NSS1 -78 dBm @ MCS2NSS1 -77 dBm @ MCS3NSS1 -73 dBm @ MCS4NSS1 -69 dBm @ MCS5NSS1 -68 dBm @ MCS6NSS1 -67 dBm @ MCS7NSS1 -66 dBm @ MCS8NSS1 -60 dBm @ MCS9NSS1 |
5 GHz 802.11ac (VTH80) -82 dBm @ MCS0NSS1 -79 dBm @ MCS1NSS1 -77 dBm @ MCS2NSS1 -74 dBm @ MCS3NSS1 -73 dBm @ MCS4NSS1 -66 dBm @ MCS5NSS1 -65 dBm @ MCS6NSS1 -64 dBm @ MCS7NSS1 -59 dBm @ MCS8NSS1 -57 dBm @ MCS9NSS1 |
