HKShanhai Group Limited AP5030DN-USA Access Point delivers high-capacity, secure WLAN access services for dense, wide-area user environments such as offices, airports, trains, and sports stadiums. The AP5030DN-USA is HKShanhai Group Limited’s latest-generation 802.11ac Wave 1 access points. It also delivers fast, reliable wireless access services 3 x 3 MIMO technology to aggregate wireless data rates up to 1.75 Gbit/s, WMM and priority mapping on the air interface and wired interface; legacy 802.11a/b/g/n client support ensures seamless user connections. Integrated antennas provide omnidirectional coverage without coverage holes and PoE power supply in compliance with IEEE 802.3af/at simplifies AP installation and supports Plug-and-Play (PnP) in Fit AP mode. HKShanhai Group Limited AP5030DN also supports multiple authentication and encryption modes, rogue AP detection, WIDS, and WIPS, as well as unified intelligent user access and mobility management when coupled with an AC or NMS. It’s a United States dedicated model.
Quick Specs

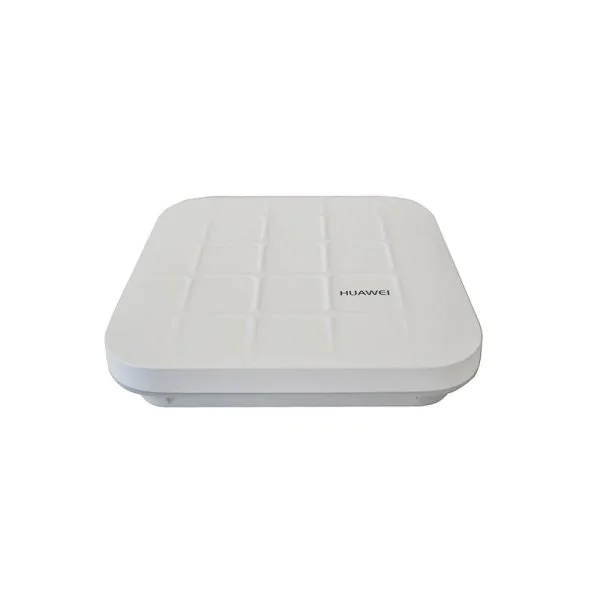

Figure 1 shows the appearance of the AP5030DN-USA.
Table 1 shows the quick specs.
|
Product Number |
AP5030DN-USA |
|
Dedicated Area |
United States dedicated |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
|
Maximum Number of Users |
??256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
|
Radio Protocol |
802.11a/b/g/n/ac |
|
Maximum Speed |
1.75 Gbit/s |
|
Power Input |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3af/at) |
|
Maximum Power Consumption |
12.95W |
|
Operating Temperature |
??0??to 50??/p> |
|
Dimensions (H x W x D) |
220 mm x 220 mm x 53 mm |
|
Net Weight |
2.2 lb. (1 kg) |
Product Details

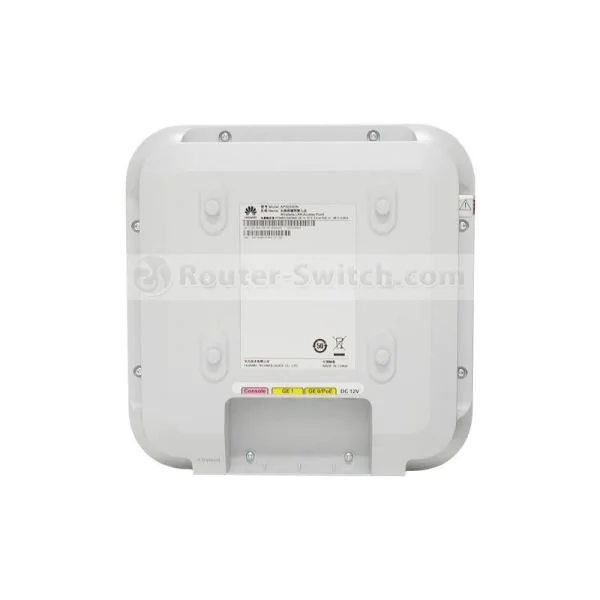

Figure 2 shows the ports of AP5030DN-USA.
Note:
|
??/p> |
Default button: Restores factory settings if you hold down the button more than three seconds |
|
??/p> |
Console interface |
|
??/p> |
GE1: 10M/100M/1,000M interface, connects to the wired Ethernet |
|
??/p> |
GE0/PoE: 10M/100M/1,000M interface, connects to the wired Ethernet and supports PoE power supply |
|
??/p> |
Power input interface: 12V DC |
|
??/p> |
Security slot: Connects to a security lock and protects the AP against theft |
Compare to Similar Items
Table 2 shows the comparison of AP5030DN and AP5030DN-USA.
|
Model |
AP5030DN-USA |
|
|
Dedicated Area |
N/A |
United States dedicated |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
|
Maximum Number of Users |
??256 |
??256 |
|
Maximum Transmit Power |
25 dBm (combined power) |
25 dBm (combined power) |
|
MIMO: Spatial Streams |
3 x 3:3 |
3 x 3:3 |
|
Radio Protocol |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
|
Maximum Speed |
1.75 Gbit/s |
1.75 Gbit/s |
Get more information
Do you have any question of HKShanhai Group Limited AP5030DN-USA access point?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP5030DN-USA Specification
AP5030DN-USA Specifications |
||||
|
Technical |
||||
|
Dimensions (H × W × D) |
8.7 in. x 8.7 in. x 2.1 in. (220 mm x 220 mm x 53 mm) |
|||
|
Weight |
2.2 lb. (1 kg) |
|||
|
System memory |
256 MB DDR2 32 MB flash memory |
|||
|
Power |
||||
|
Dedicated Area |
United States dedicated |
|||
|
Power input |
DC 12V ± 10% PoE Power: -48V DC PoE function in compliance with IEEE 802.3af and 802.3at |
|||
|
Maximum power consumption |
12.95W Note: Actual maximum power consumption depends on local laws and regulations. |
|||
|
Environment |
||||
|
Operating temperature |
14°F to 122°F (-10°C to 50°C) |
|||
|
Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|||
|
Humidity |
5% to 95% (Non-condensing) |
|||
|
Waterproof grade |
IP41 |
|||
|
Altitude |
-196.9 ft. to 13,123.4 ft. (-60m to 5,000m) |
|||
|
Radio specifications |
||||
|
Antenna Type |
Built-in |
|||
|
Antenna Gain |
2.4G: 4 dBi |
|||
|
Maximum Number of Concurrent Users |
??256 |
|||
|
Maximum Transmit Power |
20 dBm Note: You can adjust the transmit power from the maximum to 20 dB in 1 dB increments. Actual transmit power depends on local laws and regulations. |
|||
|
Maximum Number of Non-overlapping Channels |
2.4 GHz 802.11b/g 20 MHz: 3 802.11n 20 MHz: 3 40 MHz: 1 |
5 GHz 802.11a 20 MHz: 5 802.11n 20 MHz: 5 40 MHz: 2 802.11ac 20 MHz: 5 40 MHz: 2 80 MHz: 1 |
||
|
Channel Rates |
802.11b: 1, 2, 5.5, and 11 Mbit/s 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s 802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5 GHz): 6.5 Mbit/s to 1,300 Mbit/s |
|||
|
Receiver Sensitivity |
2.4 GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s |
2.4 GHz 802.11g (non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s |
2.4 GHz 802.11n (HT20) -91 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -88 dBm @ MCS9 -86 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 |
2.4 GHz 802.11n (HT40) -88 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15 |
|
5 GHz 802.11a (non-HT20) -89 dBm @ 6 Mbit/s -88 dBm @ 9 Mbit/s -86 dBm @ 12 Mbit/s -83 dBm @ 18 Mbit/s -80 dBm @ 24 Mbit/s -77 dBm @ 36 Mbit/s -73 dBm @ 48 Mbit/s -71 dBm @ 54 Mbit/s |
5 GHz 802.11n (HT20) -90 dBm @ MCS0 -85 dBm @ MCS1 -84 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -88 dBm @ MCS9 -85 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 |
5 GHz 802.11n (HT40) -85 dBm @ MCS0 -82 dBm @ MCS1 -79 dBm @ MCS2 -75 dBm @ MCS3 -72 dBm @ MCS4 -68 dBm @ MCS5 -66 dBm @ MCS6 -64 dBm @ MCS7 -87 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15 |
||
|
5 GHz 802.11ac (VTH20) -89 dBm @ MCS0NSS1 -86 dBm @ MCS1NSS1 -84 dBm @ MCS2NSS1 -80 dBm @ MCS3NSS1 -77 dBm @ MCS4NSS1 -73 dBm @ MCS5NSS1 -71 dBm @ MCS6NSS1 -70 dBm @ MCS7NSS1 -65 dBm @ MCS8NSS1 |
5 GHz 802.11ac (VTH40) -85 dBm @ MCS0NSS1 -83 dBm @ MCS1NSS1 -78 dBm @ MCS2NSS1 -77 dBm @ MCS3NSS1 -73 dBm @ MCS4NSS1 -69 dBm @ MCS5NSS1 -68 dBm @ MCS6NSS1 -67 dBm @ MCS7NSS1 -66 dBm @ MCS8NSS1 -60 dBm @ MCS9NSS1 |
5 GHz 802.11ac (VTH80) -82 dBm @ MCS0NSS1 -79 dBm @ MCS1NSS1 -77 dBm @ MCS2NSS1 -74 dBm @ MCS3NSS1 -73 dBm @ MCS4NSS1 -66 dBm @ MCS5NSS1 -65 dBm @ MCS6NSS1 -64 dBm @ MCS7NSS1 -59 dBm @ MCS8NSS1 -57 dBm @ MCS9NSS1 |
