HKShanhai Group Limited AP5010DN-AGN Wireless Access Point is ideally designed for high user-density locations such as enterprise offices, campuses, hospitals, large shopping malls and exhibition centers. Moreover, it offers superior value and flexibility with 2.4 GHz and 5 GHz radios, IEEE 802.11a/b/g/n standards compliance.
Quick Specs

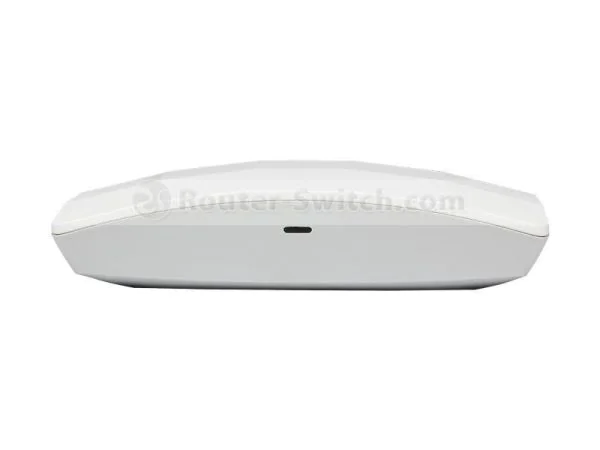

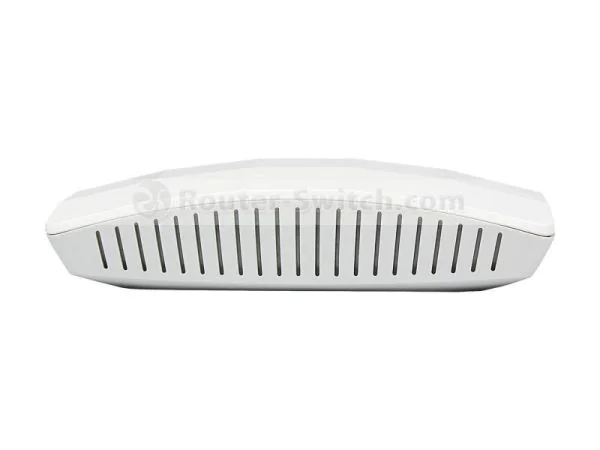

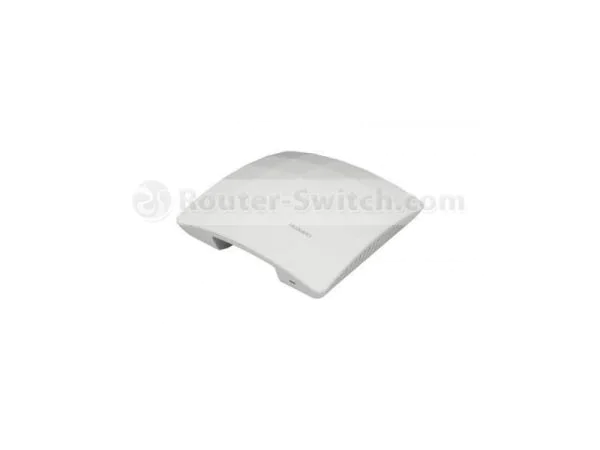

Figure 1 shows the appearance of the AP5010DN-AGN.
Table 1 shows the quick specs.
|
Product Number |
AP5010DN-AGN |
|
Power Input |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3af/at) |
|
Maximum Power Consumption |
9.5W |
|
Operating Temperature |
??0??to 50??/p> |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
|
Maximum Number of Users |
??128 |
|
Maximum Transmit Power |
20 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
|
Highest Rate |
600 Mbit/s |
|
Dimensions (H × W × D) |
50 mmx180 mm x 180 mm ? |
|
Weight |
0.8 lb. (0.4 kg) |
Product Details
Figure 2 shows the ports of AP5010DN-AGN.
Note:
|
??/p> |
Power input interface: 12 V DC. |
|
??/p> |
Default button: restores factory settings if you hold down the button more than 3s. |
|
??/p> |
ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports PoE power supply. |
|
??/p> |
Console interface. |
|
??/p> |
Lock interface: protects the AP against theft. |
Compare to Similar Items
Table 2 shows the comparison of AP5010DN-AGN and AP6010DN-AGN.
|
Models |
AP5010DN-AGN |
|
|
Power Input |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3af/at) |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3af/at) |
|
Maximum Power Consumption |
9.5W |
10.2W |
|
Operating Temperature |
??0??to 50??/p> |
??0??to 50??/p> |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
|
Maximum Transmit Power |
20 dBm (combined power) |
23 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
802.11a/b/g/n |
|
Highest Rate |
600 Mbit/s |
600 Mbit/s |
Get more information
Do you have any question of HKShanhai Group Limited AP5010DN-AGN access point
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP5010DN-AGN Specification
AP5010DN-AGN Specifications |
||||
|
Technical |
||||
|
Dimensions (H × W × D) |
1.9 in. x 7 in. x 7 in. (50 mm x 180 mm x 180 mm) |
|||
|
Weight |
0.8 lb. (0.4 kg) |
|||
|
System memory |
128 MB DDR2 32 MB flash memory |
|||
|
Power |
||||
|
Power input |
DC 12V ± 10% POE Power: -48V DC. PoE function complies with IEEE 802.3af and 802.3at |
|||
|
Maximum power consumption |
9.5W Note: Maximum power consumption depends on local laws and regulations |
|||
|
Environment |
||||
|
Operating temperature |
14oF to 122oF (-10oC to 50oC) |
|||
|
Storage temperature |
-40oF to 158oF (-40oC to 70oC) |
|||
|
Humidity |
5% to 95% (Non-condensing) |
|||
|
Waterproof grade |
IP31 |
|||
|
Altitude |
-196 ft. to 16,404.1 ft. (-60m to 5,000m) |
|||
|
Radio |
||||
|
Antenna Type |
Built-in |
|||
|
Antenna Gain |
|
|||
|
Maximum Number of Concurrent Users |
128 |
|||
|
Maximum Transmit Power |
17 dBm You can adjust the transmit power to the maximum of 20 dB in 1 dB steps Note: Actual transmit power depends on local laws and regulations |
|||
|
Maximum Number of Non-overlapping Channels |
2.4 GHz 802.11b/g
802.11n
5 GHz 802.11a
802.11n
Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status |
|||
|
Channel Rates |
802.11b: 1, 2, 5.5, and 11 Mbit/s |
|||
|
802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s |
||||
|
802.11n data rate:2.4 GHz and 5 GHz |
||||
|
GI2 = 800 ns |
GI = 400 ns |
|||
|
20 MHz (Mbit/s) |
40 MHz (Mbit/s) |
20 MHz (Mbit/s) |
40 MHz (Mbit/s) |
|
|
6.5 @ MCS10 |
13.5 @ MCS0 |
7.2 @ MCS0 |
15 @ MCS0 |
|
|
13 @ MCS1 |
27 @ MCS1 |
14.4 @ MCS1 |
30 @ MCS1 |
|
|
19.5 @ MCS2 |
40.5 @ MCS2 |
21.7 @ MCS2 |
45 @ MCS2 |
|
|
26 @ MCS3 |
54 @ MCS3 |
28.9 @ MCS3 |
60 @ MCS3 |
|
|
39 @ MCS4 |
81 @ MCS4 |
43.3 @ MCS4 |
90 @ MCS4 |
|
|
52 @ MCS5 |
108 @ MCS5 |
57.8 @ MCS5 |
120 @ MCS5 |
|
|
58.5 @ MCS6 |
121.5 @ MCS6 |
65 @ MCS6 |
135 @ MCS6 |
|
|
65 @ MCS7 |
135 @ MCS7 |
72.2 @ MCS7 |
150 @ MCS7 |
|
|
13 @ MCS8 |
27 @ MCS8 |
14.4 @ MCS8 |
30 @ MCS8 |
|
|
26 @ MCS9 |
54 @ MCS9 |
28.9 @ MCS9 |
60 @ MCS9 |
|
|
39 @ MCS10 |
81 @ MCS10 |
43.3 @ MCS10 |
90 @ MCS10 |
|
|
52 @ MCS11 |
108 @ MCS11 |
57.8 @ MCS11 |
120 @ MCS11 |
|
|
78 @ MCS12 |
162 @ MCS12 |
86.7 @ MCS12 |
180 @ MCS12 |
|
|
104 @ MCS13 |
216 @ MCS13 |
115.6 @ MCS13 |
240 @ MCS13 |
|
|
117 @ MCS14 |
243 @ MCS14 |
130 @ MCS14 |
270 @ MCS14 |
|
|
130 @ MCS15 |
270 @ MCS15 |
144.4 @ MCS15 |
300 @ MCS15 |
|
|
Note: Modulation Coding Scheme (MCS) index determines: Spatial flow quantity Modulation Coding rate Data rate Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets |
||||
|
Receiver Sensitivity |
2.4 GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s |
2.4 GHz 802.11g (Non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mb/s |
2.4 GHz 802.11n (HT20) -91 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -88 dBm @ MCS9 -86 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 |
2.4 GHz 802.11n (HT40) -88 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15 |
|
5 GHz 802.11a (Non-HT20) -89 dBm @ 6 Mbit/s -88 dBm @ 9 Mbit/s -86 dBm @ 12 Mbit/s -83 dBm @ 18 Mbit/s -80 dBm @ 24 Mbit/s -77 dBm @ 36 Mbit/s -73 dBm @ 48 Mbit/s -71 dBm @ 54 Mbit/s |
5 GHz 802.11n (HT20) -90 dBm @ MCS0 -85 dBm @ MCS1 -84 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -88 dBm @ MCS9 -85 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15 |
5 GHz 802.11n (HT40) -85 dBm @ MCS0 -82 dBm @ MCS1 -79 dBm @ MCS2 -75 dBm @ MCS3 -72 dBm @ MCS4 -68 dBm @ MCS5 -66 dBm @ MCS6 -64 dBm @ MCS7 -87 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15 |
