HKShanhai Group Limited AP2010DN Wireless Access Point Wall Plate AP offers a convenient access solution for building with densely distributed small rooms such as hotels, apartments, dormitories, hospitals, and offices. It offers High-speed, reliable wireless access services at 300 Mbit/s with 2 x 2 MIMO (two spatial streams) and 2.4 GHz or 5 GHz band switching with build-in antenna. In order to support of unified access controls and policies on the Access controller, it features multiple authentication and encryption modes and advanced security protections.
Quick Specs
Figure 1 shows the appearance of the AP2010DN.
Table 1 shows the quick specs.
|
Product Number |
AP2010DN |
|
Power Input |
PoE power supply in compliance with IEEE 802.3af/at |
|
Maximum Power Consumption |
5.5W |
|
Operating Temperature |
0°C to +40°C |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 2.5 dBi |
|
Maximum Number of Users |
??128 |
|
Maximum Transmit Power |
19 dBm?(combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
|
Highest Rate |
300 Mbit/s |
|
Dimensions (H x W x D) |
86 mm x 86 mm x 45 mm |
|
Weight |
??0.4 lb. (0.2 kg) |
Product Details

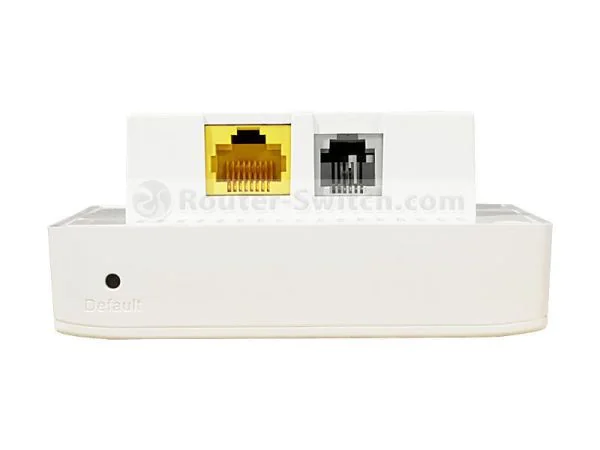

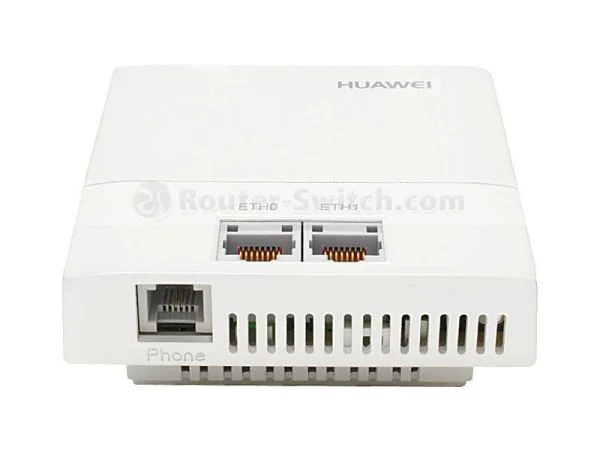

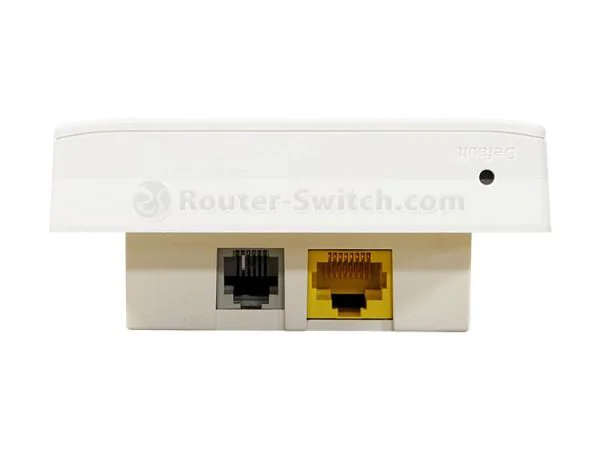

Figure 2 shows the ports of AP2010DN.
Note:
|
??/p> |
ETH0/ETH1: 10/100M port used to connect to the wired Ethernet. |
|
??/p> |
Phone: Phone interface: connects to a POTS phone or modem device. |
|
??/p> |
Default: Reset button used to restore factory settings and restart the AP if you hold down the button more than 3 seconds. |
|
??/p> |
GE/PoE: 10/100/1000M port used to connect to the wired Ethernet. The port can connect to a PoE power supply to provide power for APs. |
|
??/p> |
Phone: Phone interface: connects to a traditional PSTN. |
??To be powered by other devices, the GE/PoE port need a HKShanhai Group Limited Power Adapter – W0ACPSE14.
Compare to Similar Items
Table 2 shows the comparison of AP2010DN and AP6010DN-AGN-USA.
|
Models |
AP2010DN |
|
|
Power Input |
PoE power supply in compliance with IEEE 802.3af/at |
12V DC ±10% PoE: ??8V DC (in compliance with IEEE 802.3af/at) |
|
Maximum Power Consumption |
5.5W |
10.2W |
|
Operating Temperature |
0°C to +40°C |
??0??to 50??/p> |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 2.5 dBi |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
|
Maximum Transmit Power |
19 dBm?(combined power) |
23 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
802.11a/b/g/n |
|
Highest Rate |
300 Mbit/s |
600 Mbit/s |
Get more information
Do you have any question of HKShanhai Group Limited AP2010DN access point
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AP2010DN Specification
AP2010DN Specification |
|
|
Power Input |
PoE power supply in compliance with IEEE 802.3af/at |
|
Maximum Power Consumption |
5.5W |
|
Operating Temperature |
0°C to +40°C |
|
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 2 dBi, 5 GHz: 2.5 dBi |
|
Maximum Number of Users |
??128 |
|
Maximum Transmit Power |
19 dBm (combined power) |
|
MIMO: Spatial Streams |
2 x 2:2 |
|
Wireless Protocols |
802.11a/b/g/n |
|
Highest Rate |
300 Mbit/s |
|
Dimensions (H x W x D) |
86 mm x 86 mm x 45 mm |
|
Weight |
??0.4 lb. (0.2 kg) |
