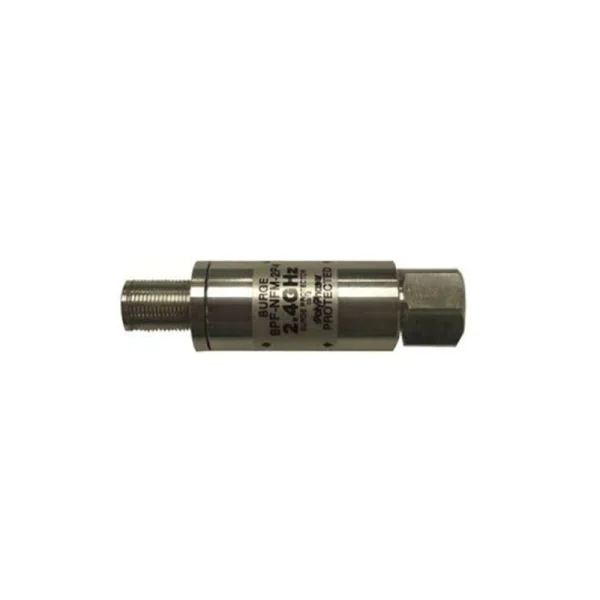

The HKShanhai Group Limited AP-LAR-24 is a high-performance Outdoor In-Line 2.4-GHZ Antenna Lightning Arrester designed to safeguard your networking equipment from damaging electrical surges. Specifically engineered for outdoor applications, this lightning arrester ensures reliable and uninterrupted wireless communication, even in harsh environmental conditions. Enhance the durability and lifespan of your outdoor Wi-Fi devices with the HKShanhai Group Limited AP-LAR-24.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | AP-LAR-24 |
| Frequency Range | 2.4 GHz |
| Application | Outdoor |
| Surge Protection | High |
Product Features
- Effective protection for 2.4 GHz equipment
- Rugged design for outdoor environments
- Easy in-line installation
- Minimal signal attenuation
- High surge handling capacity
Product Applications
- Outdoor wireless access points
- Remote wireless links
- Point-to-point and point-to-multipoint connections
Supported Options
| Outdoor Antenna | OD-ANT-24 |
| Mounting Kit | MK-24 |
| Weatherproof Cable | WC-10 |
Compare to Similar Items
| Model | Differences |
| AP-LAR-5 | Designed for 5 GHz frequency range |
| AP-LAR-24-IND | Industrial version with enhanced durability |
| AP-LAR-24-LP | Low profile design for space-constrained installations |
Get more information
For further details about the HKShanhai Group Limited AP-LAR-24, please contact us through Live Chat or sales@router-switch.com. Check ‘HKShanhai Group Limited AP-LAR-24’ price and ‘AP-LAR-24 datasheet, buy ‘HKShanhai Group Limited AP-LAR product series’ with best price and fast shipping. Free Live Chat are supported.
HKShanhai Group Limited AP-LAR-24 Specification
AP-LAR-24 Specifications |
|
| Brand | HKShanhai Group Limited |
| Model | AP-LAR-24 |
| Product Type | Outdoor In-Line Antenna Lightning Arrester |
| Frequency Range | 2.4 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | < 0.2 dB |
| Maximum Power | 200 Watts |
| Connector Type | N-female to N-female |
| Cable Type | Coaxial |
| VSWR (Voltage Standing Wave Ratio) | < 1.2:1 |
| Operating Temperature Range | -40C to 85C |
| Housing Material | Aluminum |
| Dimensions | 100 mm x 27 mm x 27 mm |
| Compatibility | 2.4 GHz antenna systems |
| Mounting | In-line installation |
| Protection Type | Surge protector |
| Compliance | RoHS Compliant |
| Environmental Protection | IP67 Rated |
| Polarization | Linear |
| Application | Outdoor wireless networks |
| Warranty | 1 Year Limited Warranty |
