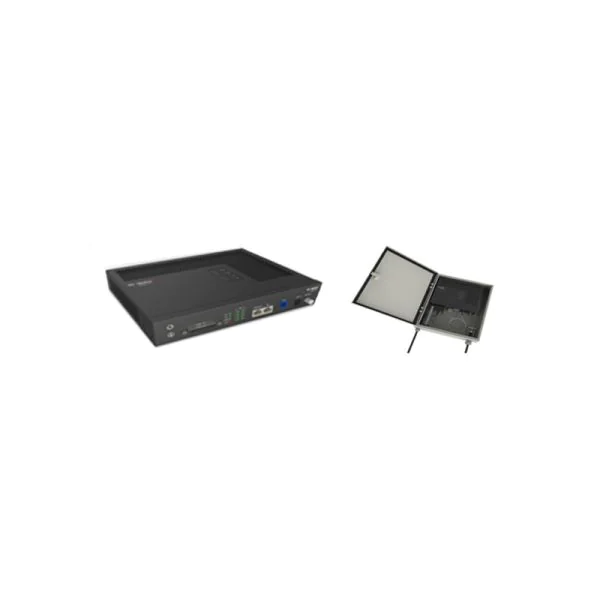

AN5172-8GR is an FTTC-type GPON optical network unit developed by FiberHome. It supports RPF (Reverse Power Feeding) via the DSL port of the PSE (Power Sourcing Equipment) on the user side. The AN5172-8GR can be used together with the GPON central office equipment developed by FiberHome to form a gigabit GPON system. It is mainly applied in scenarios such as outdoor DSL access and residential/building access.
Quick Spec
Table 1 shows the quick spec.
|
Model |
AN5172-8GR |
|
Outdoor case size (H×W×D) |
95mm×330mm×400mm |
|
Equipment size (H×W×D) |
43.5mm×250mm×200mm |
|
Uplink interface |
A GPON interface compliant with the ITU-T G.984 standard is provided. |
|
User interface |
An eight-channel DB25-type DSL interface is provided, which is adaptive to PTM-TC and ATM-TC. Supports the DSL Vectoring function. Supports the RPF (Reverse Power Feeding) function as specified in IEC 60950-1 Standard. |
|
Power supply mode |
RPF (Reverse Power Feeding): 60V |
Product Details
FiberHome FTTdp MDUs provide these key features:
– Uplink: 1 GPON
– Downlink: 8 VDSL2
– Save: Waterproof and dustproof, Lightning protection, IP55 standard High
– QoS: Ensure delay & packet loss requirements using hierarchy QoS
– Plug and play: Offline provision, support remote configuration, upgrading and diagnosis
– Flexible: Suitable for outdoor application, support pole and wall installation
Typical Application Scenarios
AN5172-8GR is mainly applied in the FTTC access scenarios. It obtains the feed from the user side PSE, and provides conventional data transmission services for the users. The AN5172-8GR is characterized by its adaptability to multiple outdoor installation scenarios. It can serve as the network access equipment in a field or at public locations (e.g. residential communities and buildings).
Compare to Similar Items
Table 2 shows the comparison.
|
Model |
AN5172-8GR |
|
|
H/W/D (mm) |
44×230 ×145 |
Outdoor case size: 95mm×330mm×400mm Equipment size: 43.5mm×250mm×200mm |
|
Uplink interface |
1*GPON |
1*GPON |
|
Power Input |
RPOE (internal PD) |
RPF (Reverse Power Feeding): 60V |
|
Power Consumption |
||
|
Working temperature |
-30℃～60??/p> |
-40℃～55??/p> |
Get More Information
Do you have any question about the AN5172-8GR
Contact us now via Live Chat or sales@router-switch.com.
FiberHome AN5172-8GR Specification
AN5172-8GR Specification |
|
|
Outdoor case size |
95mm×330mm×400mm (height×width×depth) |
|
Equipment size |
43.5mm×250mm×200mm (height×width×depth) |
|
Uplink interface |
A GPON interface compliant with the ITU-T G.984 standard is provided. |
|
User interface |
An eight-channel DB25-type DSL interface is provided, which is adaptive to PTM-TC and ATM-TC. Supports the DSL Vectoring function. Supports the RPF (Reverse Power Feeding) function as specified in IEC 60950-1 Standard. |
|
Power supply mode |
RPF (Reverse Power Feeding): 60V |
|
Power Consumption |
<20W |
|
Working temperature |
-40℃～55??/p> |
|
Storage temperature |
-55??to 125??/p> |
|
Working humidity |
10% to 90% (no condensation) |
|
PON features |
Complied with ITU G.984 series of standards |
|
Broadband features |
VLAN number: 4K, QinQ, VLAN 1:1 and N: 1 translation Support dual management model based on DBA technology and priority All ports support L2 line rate forwarding. Supports eight priority queues at most. Supports the SP, WRR, and SP+WRR scheduling modes. ACL filtering |
|
Multicast features |
IGMP v2, IGMP Snooping Multicast program number: 1024 |
|
Security features |
PPPoE+ and DHCP Option82 MAC/IP filter, binding function AES-128, Triple Churning Looping detection |
|
Maintenance features |
Support port state query, Support remote upgrading and remote monitoring |
