Airengine5762S-11 (11ax room type, 2 + 2 dual frequency, smart antenna, Bluetooth)

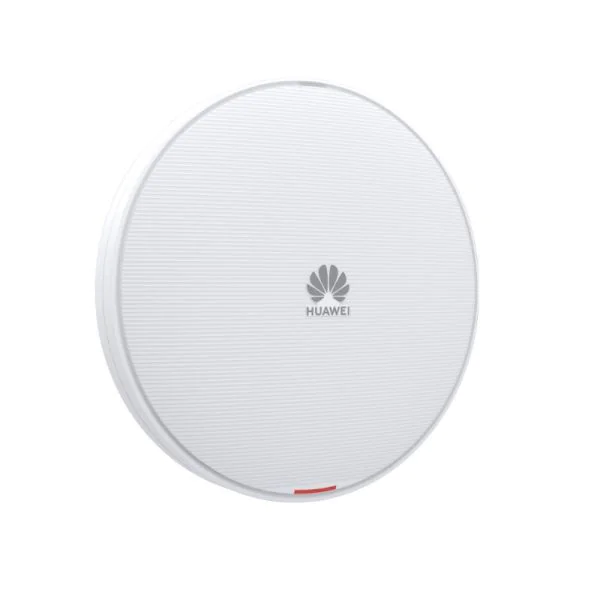

HKShanhai Group Limited AirEngine 5762S-11 is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2x2MIMO) frequency bands, achieving a device rate of up to 2.975Gbps. Built-in smart antennas of the AP enable Wi-Fi signals to follow users, significantly enhancing users’ wireless experiences. These strengths make AirEngine 5762S-11 ideal for scenarios requiring high bandwidth and high-quality network experience, such as hotels, wards and dormitories.
Quick Spec
Table 1 shows the quick spec.
| Model | AirEngine 5762S-11 |
| Interface type | 1 x 10M/100M/1GE (RJ-45) |
| Bluetooth | BLE 5.0 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| Antenna type | Built-in smart antennas |
| Maximum number of SSIDs for each radio | 16 |
| Maximum number of users | 256 |
| Power increment | 1 dBm |
| Power input | DC: 12V10%, PoE power supply: In compliance with 802.3af |
| Maximum Rate | 10.75 Gbit/s |
| Maximum powerconsumption | 12.7 W (excluding USB) |
| Operating temperature | -10°C to +50°C |
| Storage temperature | �C40°C to +70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Altitude | �C60 m to +5000 m |
| Atmospheric pressure | 53 kPa to 106 kPa |
Get More Information
Please feel free to check the AirEngine 5762S-11 datasheet below.
Do you have any question about the AirEngine 5762S-11 price
Contact us now viaLive Chatorsales@router-switch.com.
HKShanhai Group Limited AirEngine-5762S-11 Specification
| AirEngine 5762S-11Â Specification | |
| Model | AirEngine 5762S-11 |
| Interface type | 1 x 10M/100M/1GE (RJ-45) |
| Bluetooth | BLE 5.0 |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault status of the system. |
| Antenna type | Built-in smart antennas |
| Maximum number of SSIDs for each radio | ??16 |
| Maximum number of users | ??256 |
| Power increment | 1 dBm |
| Power input | DC: 12V±10%, PoE power supply: In compliance with 802.3af |
| Maximum Rate | 10.75 Gbit/s |
| Maximum power consumption | 12.7 W (excluding USB) |
| Operating temperature | -10°C to +50°C |
| Storage temperature | ??0°C to +70°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Altitude | ??0 m to +5000 m |
| Atmospheric pressure | 53 kPa to 106 kPa |
