AIRAP1852I-HK910C is one of the HKShanhai Group Limited Aironet 1850 Series Access Points. HKShanhai Group Limited 1850 AP series is ideal for small and medium-sized networks. This series supports enterprise-class 4×4 MIMO, four-spatial-stream access points that support the IEEE’s new 802.11ac Wave 2 specification. The 1850 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 2 support. The model AIRAP1852I-HK910C provides 10-pack with Mobility Expre, H Regulatory Domain and internal antennas. Model number ending in C is, by default, factory-shipped with a HKShanhai Group Limited Mobility Express software image.
Quick Specs
Table 1 shows the quick specs of AIRAP1852I-HK910C.
|
Part Number |
AIRAP1852I-HK910C |
|
Description |
HKShanhai Group Limited Aironet 1850i Series 10-pack with Mobility Expre, H Regulatory Domain ??Model number ending in C is, by default, factory-shipped with a HKShanhai Group Limited Mobility Express software image. |
|
Features |
– 4×4 MIMO with four spatial streams, single-user MIMO – 4×4 MIMO with three spatial streams, multiuser MIMO – MRC – 802.11ac beamforming (transmit beamforming) – 20-, 40-, and 80-MHz channels – PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support |
|
Regulatory Domain |
H (H regulatory domain): – 2.412 to 2.472 GHz; 3 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
|
Antenna |
Internal Antenna |
|
Interfaces |
– 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) – 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) – Management console port (RJ-45) – USB 2.0 (enabled via future software) |
|
Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
Product Details

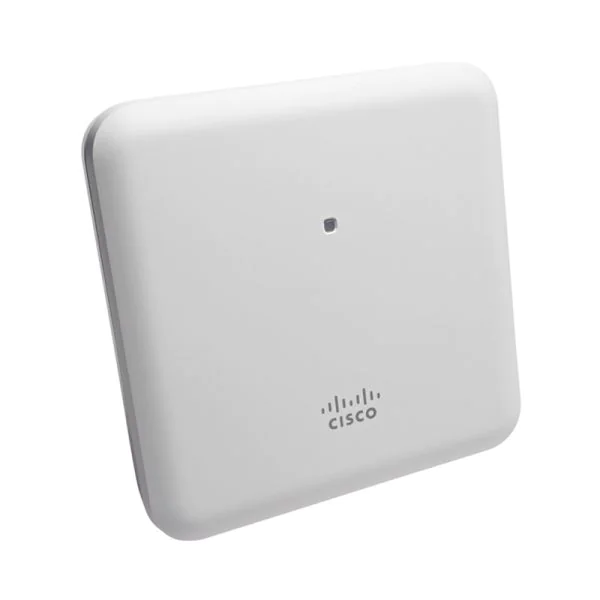

Figure 1 shows the AIR-AP1852I LED Indicator Position.
Note:①LED indicator position
Table 2 shows the AP LED indicators??descriptions.
|
MessageType |
LED State |
Message Meaning |
|
Association status |
Chirping Green |
Normal operating condition, but no wireless client associated |
|
Green |
Normal operating condition, at least one wireless client association |
|
|
Boot loader status |
Green |
Executing boot loader |
|
Boot loader error |
Red |
Boot loader signing verification failure |
|
Access point regulatorydomain priming status |
Blinking Amber |
AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress |
|
Cycling Red, Green and off |
AP waiting to be primed |
|
|
Chirping Red |
AP primed to a wrong regulatory domain |
|
|
Operating status |
Blinking amber |
Software upgrade in progress |
|
Cycling through green, red, and amber |
Discovery/join process in progress |
|
|
Rapidly cycling through red, green, amber, and off. |
Access point location command invoked from controller web interface. |
|
|
Access point operating system errors |
Cycling through red, green, amber, and off |
General warning; insufficient inline power |
Figure 2 shows AIR-AP1852I Ports and Connections.
Note:
|
??/p> |
Mode button |
??/p> |
AUX (Auxiliary) port. |
|
??/p> |
RJ-45 console port |
??/p> |
PoE-In port (Ethernet Uplink port) |
|
??/p> |
USB 2.0 port |
??/p> |
48 V DC input power port |
AUX (Auxiliary) port appears in the wireless controller user interface asGigabitEthernet1.This port, along with the PoE-In port, is used for Link Aggregation. This port is disabled when using 802.3af (15.4W) power.
Compare to Similar Items
Table 3 shows the comparison between two AP.
|
Part Number |
AIRAP1852I-HK910C |
|
|
Description |
HKShanhai Group Limited Aironet 1850i Series 10-pack with Mobility Expre, H Regulatory Domain ??Model number ending in C is, by default, factory-shipped with a HKShanhai Group Limited Mobility Express software image. |
802.11ac Wave 2 Access Point, 4×4:4, H Regulatory Domain ??Model number ending in C is, by default, factory-shipped with a HKShanhai Group Limited Mobility Express software image. |
|
Antenna |
Internal Antennas |
Internal Antennas |
|
Regulatory Domain |
H (H regulatory domain): – 2.412 to 2.472 GHz; 3 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
H (H regulatory domain): – 2.412 to 2.472 GHz; 3 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
Support & Resources
Get more information
Do you have anyquestion abouttheAIRAP1852I-HK910C
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIRAP1852I-HK910C Specification
AIRAP1852I-HK910C Specification |
|
|
Description |
HKShanhai Group Limited Aironet 1850i Series 10-pack with Mobility Expre, H Regulatory Domain |
|
Software |
HKShanhai Group Limited Unified Wireless Network Software Release with AireOS wireless controllers: 8.1 MR1 or later for the HKShanhai Group Limited Aironet 1850 Series Access Points |
|
Deployment modes |
Centralized local, Standalone, Sniffer, HKShanhai Group Limited FlexConnect, Monitor, OfficeExtend, Mesh |
|
Supported wireless LAN controllers |
HKShanhai Group Limited 2500 Series Wireless Controllers, HKShanhai Group Limited Wireless Controller Module for ISR G2, HKShanhai Group Limited Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, HKShanhai Group Limited 5500 Series Wireless Controllers, HKShanhai Group Limited Flex 7500 Series Wireless Controllers, HKShanhai Group Limited 8500 Series Wireless Controllers, HKShanhai Group Limited 5760 Series Wireless Controllers, HKShanhai Group Limited Catalyst 3 650/3850 Series switch with integrated controller HKShanhai Group Limited Mobility Express |
|
802.11n version 2.0 (and related) capabilities |
4×4 MIMO with four spatial streams Maximal ratio combining (MRC) 20- and 40-MHz channels PHY data rates up to 600 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
|
802.11ac Wave 1 and 2 capabilities |
4×4 MIMO with four spatial streams, single-user MIMO 4×4 MIMO with three spatial streams, multiuser MIMO MRC 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support Rogue device detection |
|
Integrated antenna |
2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
|
External antenna (sold separately) |
Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) HKShanhai Group Limited offers the industry’s broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios |
|
Interfaces |
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) Management console port (RJ-45) USB 2.0 (enabled via future software) |
|
Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|
Dimensions (W x L x H) |
Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
|
Environmental |
HKShanhai Group Limited Aironet 1850i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. |
|
System memory |
1 GB DRAM 256 MB flash |
|
Input power requirements |
AP1850: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
|
Power draw |
20.9W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable. |
|
Powering options |
802.3at Enhanced PoE HKShanhai Group Limited power injector, AIR-PWRINJ4= HKShanhai Group Limited local power supply, AIR-PWR-C= HKShanhai Group Limited power injector, AIR-PWRINJ5= (Note:this injector supports 802.3af only) 802.3af Note: If 802.3af PoE is the source of power, (1) the 1852e 2.4-GHz radio will shift to 2×3 from 3×4, (2) The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e. |
|
Warranty |
Limited lifetime hardware warranty |
