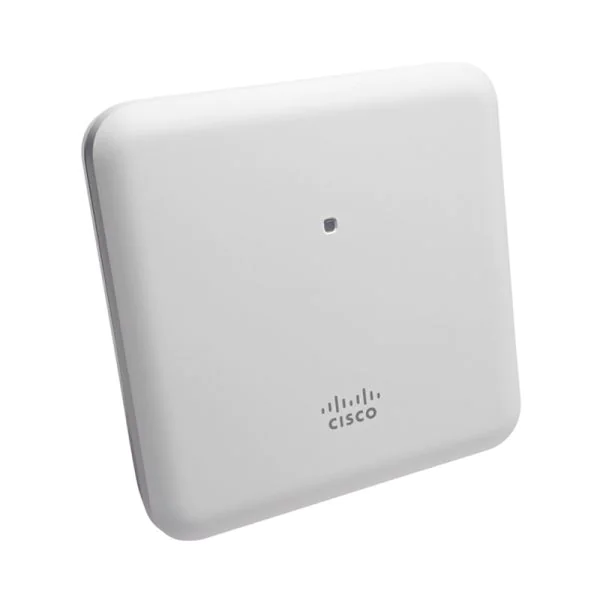

AIRAP1852I-BK910C is one of the HKShanhai Group Limited Aironet 1850 Series Access Points. HKShanhai Group Limited 1850 AP series is ideal for small and medium-sized networks. This series supports enterprise-class 4×4 MIMO, four-spatial-stream access points that support the IEEE’s new 802.11ac Wave 2 specification. The 1850 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 2 support. The model AIRAP1852I-BK910C provides B Regulatory Domain and internal antennas. It also ships with 10 access points.
Quick Specs
Table 1 shows the quick specs of AIRAP1852I-BK910C.
|
Part Number |
AIRAP1852I-BK910C |
|
Description |
HKShanhai Group Limited Aironet 1850i Series 10-pack with Mobility Expre, B Regulatory Domain ??Model number ending in C is, by default, factory-shipped with a HKShanhai Group Limited Mobility Express software image. |
|
Features |
– 4×4 MIMO with four spatial streams, single-user MIMO – 4×4 MIMO with three spatial streams, multiuser MIMO – MRC – 802.11ac beamforming (transmit beamforming) – 20-, 40-, and 80-MHz channels – PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) – Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) – 802.11 DFS – CSD support |
|
Regulatory Domain |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
|
Antenna |
Internal Antenna |
|
Interfaces |
– 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) – 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) – Management console port (RJ-45) – USB 2.0 (enabled via future software) |
|
Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
Product Details
Figure 1 shows the AIR-AP1852I LED Indicator Position.
Note:①LED indicator position
Table 2 shows the AP LED indicators??descriptions.
|
MessageType |
LED State |
Message Meaning |
|
Association status |
Chirping Green |
Normal operating condition, but no wireless client associated |
|
Green |
Normal operating condition, at least one wireless client association |
|
|
Boot loader status |
Green |
Executing boot loader |
|
Boot loader error |
Red |
Boot loader signing verification failure |
|
Access point regulatorydomain priming status |
Blinking Amber |
AP priming to a new regulatory domain by Neighbor Discovery Protocol (NDP), in progress |
|
Cycling Red, Green and off |
AP waiting to be primed |
|
|
Chirping Red |
AP primed to a wrong regulatory domain |
|
|
Operating status |
Blinking amber |
Software upgrade in progress |
|
Cycling through green, red, and amber |
Discovery/join process in progress |
|
|
Rapidly cycling through red, green, amber, and off. |
Access point location command invoked from controller web interface. |
|
|
Access point operating system errors |
Cycling through red, green, amber, and off |
General warning; insufficient inline power |
Figure 2 shows AIR-AP1852I Ports and Connections.
Note:
|
??/p> |
Mode button |
??/p> |
AUX (Auxiliary) port. |
|
??/p> |
RJ-45 console port |
??/p> |
PoE-In port (Ethernet Uplink port) |
|
??/p> |
USB 2.0 port |
??/p> |
48 V DC input power port |
AUX (Auxiliary) port appears in the wireless controller user interface asGigabitEthernet1.This port, along with the PoE-In port, is used for Link Aggregation. This port is disabled when using 802.3af (15.4W) power.
Compare to Similar Items
Table 3 shows the comparison between two AP.
|
Part Number |
AIRAP1852I-BK910C |
|
|
Description |
802.11ac Wave 2 Access Point, 4×4:4 |
802.11ac Wave 2, 10 Access Points, 4×4:4, Internal Antenna, B Regulatory Domain, Configurable |
|
Antenna |
Internal Antennas |
Internal Antennas |
|
Regulatory Domain |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
Support & Resources
Get more information
Do you have anyquestion abouttheAIRAP1852I-BK910C
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIRAP1852I-BK910C Specification
AIRAP1852I-BK910C Specification |
|
|
Description |
HKShanhai Group Limited Aironet 1850i Series 10-pack with Mobility Expre, B Regulatory Domain ??Model number ending in C is, by default, factory-shipped with a HKShanhai Group Limited Mobility Express software image. |
|
Software |
HKShanhai Group Limited Unified Wireless Network Software Release with AireOS wireless controllers: 8.1 MR1 or later for the HKShanhai Group Limited Aironet 1850 Series Access Points |
|
Regulatory Domain |
B (B regulatory domain): – 2.412 to 2.462 GHz; 3 channels – 5.180 to 5.320 GHz; 8 channels – 5.500 to 5.720 GHz; 12 channels – 5.745 to 5.825 GHz; 5 channels |
|
Deployment modes |
Centralized local, Standalone, Sniffer, HKShanhai Group Limited FlexConnect, Monitor, OfficeExtend, Mesh |
|
Supported wireless LAN controllers |
HKShanhai Group Limited 2500 Series Wireless Controllers, HKShanhai Group Limited Wireless Controller Module for ISR G2, HKShanhai Group Limited Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, HKShanhai Group Limited 5500 Series Wireless Controllers, HKShanhai Group Limited Flex 7500 S eries Wireless Controllers, HKShanhai Group Limited 8500 Series Wireless Controllers, HKShanhai Group Limited 5760 Series Wireless Controllers, HKShanhai Group Limited Catalyst 3650/3850 Series switch with integrated controller HKShanhai Group Limited Mobility Express |
|
802.11n version 2.0 (and related) capabilities |
4×4 MIMO with four spatial streams Maximal ratio combining (MRC) 20- and 40-MHz channels PHY data rates up to 600 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
|
802.11ac Wave 1 and 2 capabilities |
4×4 MIMO with four spatial streams, single-user MIMO 4×4 MIMO with three spatial streams, multiuser MIMO MRC 802.11ac beamforming (transmit beamforming) 20-, 40-, and 80-MHz channels PHY data rates up to 1.7 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support Rogue device detection |
|
Integrated antenna |
2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360° 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
|
Interfaces |
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) 1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation) Management console port (RJ-45) USB 2.0 (enabled via future software) |
|
Indicators |
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|
Dimensions (W x L x H) |
Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
|
Weight |
3.12 lb (1.41 kg) |
|
Environmental |
HKShanhai Group Limited Aironet 1850i Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) altitude test: 25˚C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% (noncondensing) Operating altitude test: 40˚C, 9843 ft. |
|
System memory |
1 GB DRAM 256 MB flash |
|
Input power requirements |
AP1850: 44 to 57 VDC Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
|
Power draw |
20.9W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable. |
|
Powering options |
802.3at Enhanced PoE HKShanhai Group Limited power injector, AIR-PWRINJ4= HKShanhai Group Limited local power supply, AIR-PWR-C= HKShanhai Group Limited power injector, AIR-PWRINJ5= (Note:this injector supports 802.3af only) 802.3af Note: If 802.3af PoE is the source of power, (1) the 1852e 2.4-GHz radio will shift to 2×3 from 3×4, (2) The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e. |
|
Warranty |
Limited lifetime hardware warranty |
