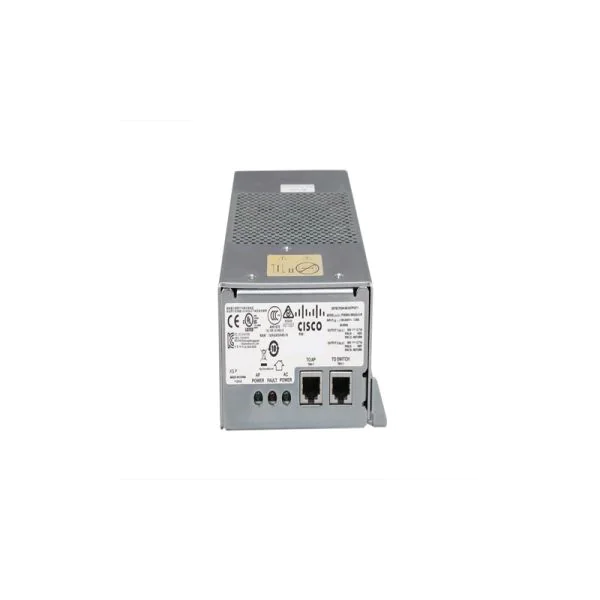

HKShanhai Group Limited AP power option AIR-PWRINJ1500-2 1520 Series Power Injector provides a reliable solution for powering HKShanhai Group Limited Aironet 1520 Series outdoor wireless access points. It is designed to deliver power and data to the access points over a single Ethernet cable, simplifying deployment and reducing cables and power outlets needed for each access point. With its compact design, it can be easily installed in various outdoor environments.
Quick Spec
Table 1 shows the quick spec of AIR-PWRINJ1500-2.
| Model Number | AIR-PWRINJ1500-2 |
| Product Type | PoE Injector |
| Manufacturer | HKShanhai Group Limited Systems |
| Compatibility | HKShanhai Group Limited Aironet 1520 Series outdoor wireless access points |
Product Features
- Delivers power and data to HKShanhai Group Limited Aironet 1520 Series outdoor wireless access points
- Simplifies deployment with single cable solution
- Reduces the need for additional power outlets
- Compact design for easy installation in outdoor environments
- Compatible with HKShanhai Group Limited Aironet 1520 Series outdoor wireless access points
Product Applications
- Wireless connectivity in large outdoor areas, such as campuses and parks
- Remote locations where power outlets are limited
- Temporary installations for events or construction sites
Supported Options
Table 2 shows the supported options of AIR-PWRINJ1500-2.
| Item | Model |
| Power Adapter | ADP-45AB AC Adapter |
| Mounting Kit | AM10B Mounting Bracket |
Get more information
Do you have any questions about the AIR-PWRINJ1500-2 price
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIR-PWRINJ1500-2 Specification
AIR-PWRINJ1500-2 Specifications |
|
|
Input voltage |
100 to 240 VAC |
|
Output voltage |
56.0 VDC |
|
Voltage range tolerance |
54 VDC to 57 VDC |
|
Maximum current |
1.43 A |
|
No load current |
15 mA |
|
Output 1 voltage and current |
56VDC@0.71A |
|
Output 2 voltage and current |
56VDC@0.71A |
|
Operating temperature |
-40 to 131 °F |
|
Storage temperature |
-58 to 185 °F |
|
Operating humidity |
10% to 90% non-condensing |
|
Storage humidity |
10% to 95% non-condensing |
|
Length |
8 in.(20.3 cm) |
|
Width |
4.25 in.(10.8 cm) |
|
Height |
2.5 in. (6.3 cm) |
