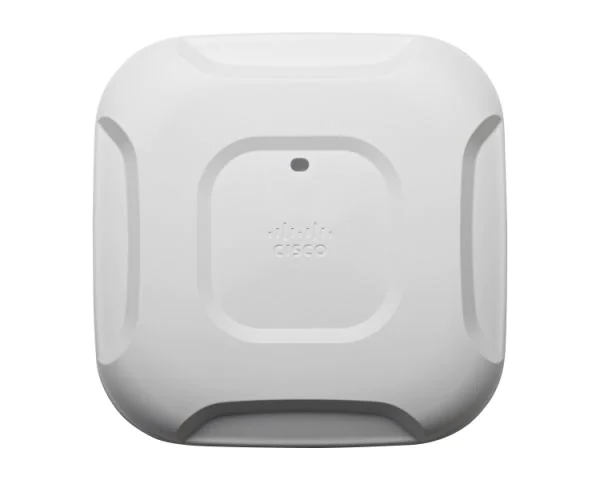

AIR-CAP3702I-H-K9 is one of the 3700 series AP, needing wireless controller, providing internal antenna and H regulatory domain. Based on the HKShanhai Group Limited Aironet heritage of RF excellence, the 3700 Series utilizes a Purpose-built innovative chipset to provide a high density experience for enterprise network. 4 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. Modular architecture enables flexible add-on options, which include Wireless Security Module, HKShanhai Group Limited Universal Small Cell 5310 Module and HKShanhai Group Limited Aironet 802.11ac Wave 2 Module.
Quick Specs
Table 1
|
Product Code |
AIR-CAP3702I-H-K9 |
|
WiFi Standards |
802.11a/b/g/n/ac |
|
Ideal For |
Midsize or large enterprises that require mission-critical traffic |
|
Max Data Rate 5GHz |
1.3 Gbps |
|
MIMO Radio Design: Spatial Streams |
4 x 4:3 |
|
Client count/ClientLink client count |
200/128 |
|
Controller Available |
Yes |
|
Power |
4 x 4:3 operation: 802.3at PoE+ Enhanced PoE, Universal PoE (UPOE) 3 x 3:3 operation: 802.3af PoE |
|
Antenna |
Internal Antenna |
|
Regulatory Domain |
H (H regulatory domain): – 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
|
Dimensions (W x L x H) |
22.1 x 22.1 x 5.4 cm (without mounting bracket) |
|
Package Weight |
1.72 Kg |
The Accessories
Table 2 shows the recommended accessories.
|
Accessories |
Models |
Description |
|
Ethernet Switch Power Injectors |
HKShanhai Group Limited AP power option AIR-PWRINJ4 Power Injector – AP1140/1250/1260/3500/1600/1700/2600/2700/3600/3700 Series |
|
|
Local Power supply |
HKShanhai Group Limited AP power option PwrSpply:100-240VAC,48VDC |
Compare to Similar Item
Table 3 shows the comparison between two APs.
|
Models |
AIR-CAP3702I-H-K9 |
|
|
WiFi Standards |
802.11a/b/g/n/ac |
802.11a/b/g/n/ac |
|
Antenna |
internal Antenna |
internal Antenna |
|
Controller Available |
Yes |
Yes |
|
Max Data Rate 5GHz |
1.3 Gbps |
1.3 Gbps |
|
MIMO Radio Design: Spatial Streams |
4 x 4:3 |
4 x 4:3 |
|
Regulatory Domain |
C (C regulatory domain): – 2.412 to 2.472 GHz; 13 channels – 5.745 to 5.825 GHz; 5 channels |
H (H regulatory domain): – 2.412 to 2.472 GHz; 13 channels – 5.150 to 5.350 GHz; 8 channels – 5.745 to 5.825 GHz; 5 channels |
Get more information
Do you have anyquestion abouttheAIR-CAP3702I-H-K9
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIR-CAP3702I-H-K9 Specification
| Model | AIR-CAP3702I-H-K9 |
| Brand | HKShanhai Group Limited |
| Devide Type | Wireless Access Point |
| Regulatory domain | H regulatory domain |
| Supported wireless LAN controllers | HKShanhai Group Limited 2500 Series Wireless Controllers, HKShanhai Group Limited Wireless Controller Module for ISR G2, HKShanhai Group Limited Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, HKShanhai Group Limited 5500 Series Wireless Controllers, HKShanhai Group Limited Flex 7500 Series Wireless Controllers, HKShanhai Group Limited 8500 Series Wireless Controllers, HKShanhai Group Limited Virtual Wireless Controller, HKShanhai Group Limited 5760 Wireless LAN Controller, HKShanhai Group Limited Catalyst 3850 Series Switches, HKShanhai Group Limited Catalyst 3650 Series Switches |
| Software | HKShanhai Group Limited Unified Wireless Network Software Release with AireOS Wireless Controllers: 7.6 or later for the HKShanhai Group Limited Aironet 3700 Series Access Point, 7.6 or later for support of the Wireless Security Module for the 3700 Series Access Point. HKShanhai Group Limited IOS XE Software Release: 3.3.1SE or later for the HKShanhai Group Limited Aironet 3700 Series Access Point, Wireless Security Module for the 3700 Series Access Point support (Target 1HCY15) |
| Data rates supported | 802.11a: up to 54 Mbps, 802.11g: up to 54 Mbps |
| Maximum number of nonoverlapping channels | 5 GHz: 802.11a: 20 MHz: 21, 802.11n: 20 MHz: 21, 40 MHz: 9, 802.11ac: 20 MHz: 21, 40 MHz: 9, 80 MHz: 4, 2.4 GHz: 802.11b/g: 20 MHz: 3, 802.11n: 20 MHz: 3 |
| Antenna | 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°; 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° |
| Interfaces | 10/100/1000BASE-T autosensing (RJ-45), Management console port (RJ-45) |
| System memory | 512 MB DRAM, 64 MB flash |
| Module options | HKShanhai Group Limited Aironet Wireless Security Module, HKShanhai Group Limited Universal Small Cell 5310 |
| Power consumption | No external module installed, 4×4:3 on 2.4/5 GHz : 16.1 Watts; with wireless Security module, 4×4:3 on 2.4/5 GHz +WSM: 19.6 Watts; No external module installed, 3×3:3 on 2.4/5 GHz : 15.4 Watts; with wireless Security module, 2×2:2 on 2.4/5 GHz +WSM: 15.4 Watts |
| IEEE standards | IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d |
| Security | 802.11i, WPA2, WPA, 802.1X; IEEE 802.11ac Draft 5; AES, TKIP |
| Extensible Authentication Protocol (EAP) types | EAP-TLS, EAP-Tunneled TLS (TTLS) or MSCHAPv2, PEAP v0 or EAP-MSCHAPv2, EAP-FAST, PEAP v1 or EAP-Generic Token Card (GTC), EAP-SIM |
| Frequency band and 20-MHz operating channels | 2.412 to 2.472 GHz; 13 channels, 5.150 to 5.350 GHz; 8 channels, 5.745 to 5.825 GHz; 5 channels |
| Environmental | Nonoperating (storage) temperature: -22°F to 158°F (-30°C to 70°C), Nonoperating (storage) altitude test: 25°C, 15,000 ft, Operating temperature: 32°F to 104°F (0°C to 40°C), Operating humidity: 10% to 90% (noncondensing), Operating altitude test: 40°C, 9843 ft |
| AIR-CAP3702I-H-K9 | AIR-CAP3702I-H-K9 |
