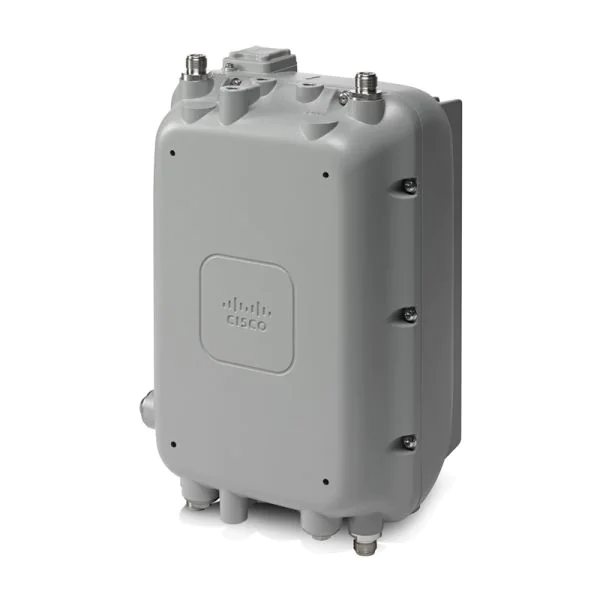

HKShanhai Group Limited’s AIR-AP1572EC1-T-K9 is an enterprise-grade outdoor access point meticulously engineered for pivotal wireless deployments in harsh and mission-critical environments. As a robust Outdoor AP, it delivers advanced 802.11ac wireless performance with a maximum data rate of up to 1.3 Gbps, providing seamless high-speed connectivity for modern enterprise, campus, or municipal networks. With its External Antenna design, the AIR-AP1572EC1-T-K9 supports flexible coverage and enhanced signal reliability—ideal for large public spaces and versatile outdoor installations. This access point excels in facilitating stable network extension via its dedicated Cable interface, supporting NA-D3.0 42/88MHz for optimal throughput and easy installation. Specifically tailored for the T Regulatory Domain, the unit ensures strict global compliance, making it a smart solution for Asian network regulations. Designed for rugged reliability, its IP67-rated enclosure offers protection against dust, water, and extreme temperatures, guaranteeing dependable wireless service from -40°C up to 65°C. The AIR-AP1572EC1-T-K9 empowers distributors, system integrators, and end users with web-based GUI and CLI management options, WPA/WPA2 and 802.1X security, and PoE-powered deployment. Whether enhancing municipal Wi-Fi, industrial campuses, or large-scale public venues, this HKShanhai Group Limited access point stands out for its regulatory versatility, environmental toughness, and future-ready wireless foundation. Its strength in client capacity—up to 200 clients per unit—ensures sustained connectivity even in crowded urban spaces, making it a top choice for organizations investing in outdoor wireless excellence and secure, reliable connectivity across demanding geographies.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1572EC1-T-K9 | AIR-AP1572EC1-A-K9 | AIR-AP1572EC1-D-K9 | AIR-AP1572EC1-Z-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac | 802.11ac | 802.11ac | 802.11ac |
| Maximum Data Rate | Up to 1.3 Gbps | Up to 1.3 Gbps | Up to 1.3 Gbps | Up to 1.3 Gbps |
| Supported Frequency Band | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz |
| Client Capacity | 200 clients per access point | 200 | n/a | n/a |
| Network Interface | Gigabit Ethernet Port | 2 x 10/100/1000 Ethernet Ports | 1 x 10/100/1000 Ethernet | 1 x 10/100/1000 Ethernet Port |
Optional Add-ons
| Model Number | Description |
| AIR-ACC2627-RS | HKShanhai Group Limited 2.4/5 GHz Outdoor Omnidirectional Antenna for 1570 Series, optimal for extending coverage in open environments. |
| AIR-ACCPMK1570 | Pole and Wall Mount Kit for HKShanhai Group Limited 1570 Outdoor AP, ensures secure, flexible installation on various outdoor structures. |
| AIR-PWRINJ6= | HKShanhai Group Limited Gigabit Power over Ethernet Injector, delivers reliable PoE power to AIR-AP1572 outdoor access points. |
HKShanhai Group Limited AIR-AP1572EC1-T-K9 Specification
| Model | AIR-AP1572EC1-T-K9 |
| Brand | HKShanhai Group Limited |
| Form Factor | Outdoor Access Point |
| Wireless Standard | 802.11ac |
| Antenna | External |
| Regulatory Domain | T Regulatory Domain |
| Data Cable Type | NA-D3.0 42/88MHz |
| Operating Temperature | -40 to 65°C |
| Power Options | Power over Ethernet (PoE) |
| Enclosure | IP67 rated for outdoor use |
| Max Data Rate | Up to 1.3 Gbps |
| Frequency Band | 2.4 GHz and 5 GHz |
| Maximum Clients | 200 clients per access point |
| Security | WPA/WPA2, 802.1X |
| Management | Web-based GUI, Command Line Interface (CLI), SNMP |
| Dimensions | 10.5 x 8.6 x 5.5 in. (26.7 x 21.8 x 14 cm) |
| Interfaces | Gigabit Ethernet Port |
| Compliance | CE Marking, C-Tick, FCC |
| Mounting Options | Pole and wall mountable hardware |
| AIR-AP1572EC1-T-K9 | AIR-AP1572EC1-T-K9 |
