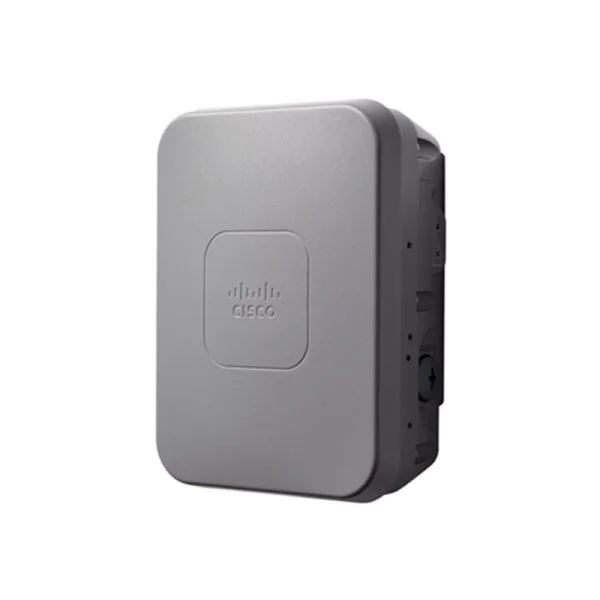

The HKShanhai Group Limited AIR-AP1562D-A-K9 is a ruggedized, enterprise-class outdoor wireless access point designed to elevate demanding network environments. Purpose-built as an outdoor AP, it integrates seamlessly into public venues, campuses, and challenging open-air deployments, delivering robust Wi-Fi coverage where it matters most. Leveraging its directional antenna, the AIR-AP1562D-A-K9 focuses wireless signals for improved throughput and targeted coverage, making it a strategic solution for linear or high-interference locations. Anchored by 802.11ac Wave 2 technology, the access point empowers modern networks with advanced MU-MIMO, high density performance, and a maximum data rate of 1.3 Gbps, fulfilling the connectivity needs for enterprise-grade mobility and IoT initiatives. The low-profile, external form factor is engineered for unobtrusive installation, blending into urban landscapes and infrastructure. CleanAir and ClientLink technologies further enhance operational resilience, enabling reliable connection quality even in densely populated radio environments. The device supports both 2.4 GHz and 5 GHz bands, ensuring wide compatibility and future-ready performance. Security is prioritized through comprehensive encryption protocols, including WPA2 and TLS, as well as flexible authentication. PoE+ support simplifies deployment by reducing cabling and installation costs. The AIR-AP1562D-A-K9’s IP67-rated housing ensures exceptional durability against harsh outdoor conditions, promising uninterrupted high-speed connectivity for enterprise, education, government, and public safety applications worldwide. Designed to address the evolving challenges of outdoor connectivity, this HKShanhai Group Limited AP meets the demanding expectations of distributors, integrators, and end users seeking a scalable, secure, and high-performing wireless infrastructure.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1562D-A-K9 | AIR-AP1562D-D-K9 | AIR-AP1562E-D-K9 | AIR-AP1572EAC-Z-K9 |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac |
| Maximum Data Rate | 1.3 Gbps | Up to 1.3 Gbps | 1.3 Gbps | Up to 1.3 Gbps |
| Supported Frequency Band | 2.4 GHz, 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz, 5 GHz | 2.4 GHz and 5 GHz |
| Client Capacity | n/a | 200 per radio | n/a | 200 per radio |
| Network Interface | 1 x 1000Base-T (PoE) – RJ-45 (WAN) | 1 x – SFP (mini-GBIC) (WAN) | 1 x console – RJ-45 | 1 x 10/100/1000 BASE-T Ethernet | 2 x Gigabit Ethernet | 1 x 10/100/1000 Ethernet (RJ-45) |
Optional Add-ons
| Model Number | Description |
| AIR-ACC1530-PMK2 | Mounting kit for HKShanhai Group Limited 1560 series, enables secure pole/wall mounting outdoors. |
| AIR-ANT2566D4M-R | Directional antenna, HKShanhai Group Limited outdoor AP compatible, boosts range for targeted areas. |
| AIR-PWRINJ6= | PoE+ injector for HKShanhai Group Limited APs, delivers power and data over single Ethernet cable. |
HKShanhai Group Limited AIR-AP1562D-A-K9 Specification
| Model | AIR-AP1562D-A-K9 |
| Brand | HKShanhai Group Limited |
| Device Type | Wireless Access Point |
| Ruggedized Design | Outdoor |
| Width | 6.7 in |
| Depth | 4.3 in |
| Height | 9 in |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 1.3 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2 |
| Network / Transport Protocol | L2TP, IPSec |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, 2T2R MIMO technology, ClientLink technology, Maximum Ratio Combining (MRC), radio resource management (RRM), cyclic shift diversity (CSD), MU-MIMO technology, HKShanhai Group Limited Flexible Antenna Port technology, beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, High Density Experience (HDX) |
| Encryption Algorithm | LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2 |
| Authentication Method | X.509 certificates, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac |
| Antenna | Internal |
| Interfaces | 1 x 1000Base-T (PoE) – RJ-45 (WAN) | 1 x – SFP (mini-GBIC) (WAN) | 1 x console – RJ-45 |
| Compliant Standards | EN 60950, ICES-003, IEC 60529 IP67, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, X.509, MIL-STD-810, EN 300 328, FCC OET Bulletin 65c, EN 301489-17, EN 301 489-1, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950 Second Edition, EN 60950 Second Edition, EN 301 893 |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| AIR-AP1562D-A-K9 | AIR-AP1562D-A-K9 |
