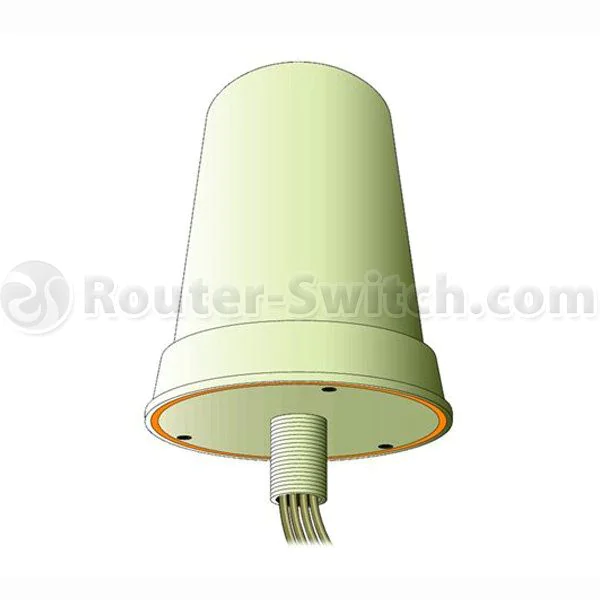

The AIR-ANT2544V4M-R is a dual-band antenna from HKShanhai Group Limited, offering 4dBi gain for both 2.4GHz and 5GHz frequencies. This multi-mount omnidirectional antenna with 4-port design is perfect for enhancing wireless coverage in indoor or outdoor environments.
Quick Spec
Table 1 shows the quick spec of the AIR-ANT2544V4M-R.
| Product Code | AIR-ANT2544V4M-R |
| Product Name | HKShanhai Group Limited 2.4GHz 4dBi/5GHz 4dBi Multi Mount Omni Ant., 4-port, RP-TNC |
| Antenna Type | Omni-directional |
| Gain | 4dBi |
| Operating Frequency | 2.4 GHz, 5 GHz |
Product Features
- Dual-band operation supports both 2.4GHz and 5GHz frequency bands
- 4dBi gain enhances wireless signal coverage and strength
- Multi-mount design provides flexibility in deployment
- Omni-directional operation offers 360-degree coverage
- Four port design for multiple input multiple output (MIMO) applications
Product Applications
- Extending wireless coverage in large indoor areas such as warehouses and shopping centers
- Improving signal strength in outdoor locations such as parks and campuses
- Enhancing MIMO performance in enterprise wireless networks
Supported Options
Table 2 shows the supported options of the AIR-ANT2544V4M-R.
| Accessories | Model |
| Mounting Kit | AIR-ACC245LA-R |
| Extension Cable | AIR-CAB050LL-R |
| Lightning Arrestor | AIR-ACC245LA-N= |
Compare to Similar Items
Table 3 shows the comparison to similar items of the AIR-ANT2544V4M-R.
| Model | Difference |
| AIR-ANT2524DW-R | 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC |
| AIR-ANT2547V-N= | 2.4 GHz 4 dBi/5 GHz 7 dBi Dual Band Omni Antenna, N Connector |
| AIR-ANT5140NV-R= | 5 GHz 4 dBi 360Antenna with N Connector |
Get more information
Do you have any question about the AIR-ANT2544V4M-R price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIR-ANT2544V4M-R Specification
AIR-ANT2544V4M-R Specifications |
|
|
Antenna type |
4-element MIMO omnidirectional |
|
Operating frequency range |
2400??484 MHz |
|
5150??850 MHz |
|
|
Nominal input impedance |
50 Ohms |
|
VSWR |
2:1 or less |
|
Peak gain |
2.4-GHz band: 4 dBi |
|
5-GHz band: 4 dBi |
|
|
Polarization |
Linear, vertical |
|
Azimuth plane(3 dB beamwidth) |
Ominidirectional |
|
Elevation plane(3 dB beamwidth) |
2.4-GHz band: 60° |
|
5-GHz band: 33° |
|
|
Length |
8.6 in (21.8 cm) |
|
Diameter |
6.3 in (16 cm) |
|
Weight |
Antenna: 1.48 lb. (671.5 g); |
|
Cable |
3-ft. (91.4 cm) plenum |
|
Connector |
RP-TNC |
|
Environment |
Indoor/outdoor |
|
Temperature range |
-22° F to 158° F(-30° C to 70° C) |
