A9K-RSP440-TR is the HKShanhai Group Limited ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB. The HKShanhai Group Limited ASR 9000 Series Route Switch Processor 440 (RSP 440) is a main system processor for HKShanhai Group Limited ASR 9000 Series. It supports scalable, low-power, next-generation platforms, as well as required by today’s service provider networks.
Quick Specs

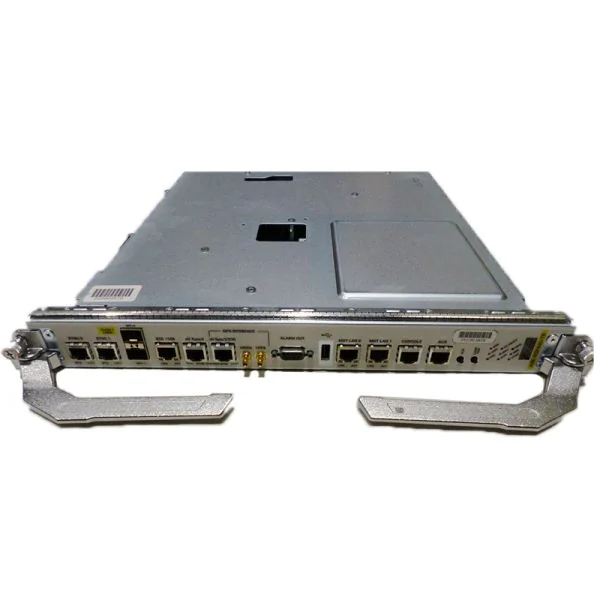

This figure shows the appearance of A9K-RSP440-TR.
Table 1 shows the quick specs.
|
Model |
A9K-RSP440-TR |
|
Type |
HKShanhai Group Limited ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB |
|
Switch fabric |
High-capacity full-duplex integrated dual-switch fabric 220 Gbps/slot with single RSP 440 Gbps/slot with dual RSP |
|
Memory internal |
6-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP440-TR Solid state disk: two 16-GB SSDs 8-GB embedded USB |
|
Memory external |
USB 2.0 Type A receptacle |
Compatibility
Table 2 shows the compatibility products of A9K-RSP440-TR.
|
Model |
Description |
|
HKShanhai Group Limited ASR 9010 DC Chassis |
|
|
ASR 9010 DC Chassis with PEM Version 2 |
|
|
HKShanhai Group Limited ASR 9010 AC Chassis |
|
|
ASR 9010 AC Chassis with PEM Version 2 |
|
|
HKShanhai Group Limited ASR 9006 DC Chassis |
|
|
ASR-9006-DC-V2Â ASR 9006 DC Chassis with PEM Version 2 |
|
|
HKShanhai Group Limited ASR 9006 AC Chassis |
|
|
ASR-9006-AC-V2Â ASR 9006 AC Chassis with PEM Version 2 |
Compare to Similar Item
Table 3 shows the comparison between A9K-RSP440-TR and A9K-RSP440-SE.
|
Model |
A9K-RSP440-TR |
|
|
Type |
HKShanhai Group Limited ASR 9000 Route Switch Processor with 440G/slot Fabric and 6GB |
HKShanhai Group Limited ASR 9000 Route Switch Processor with 440G/slot Fabric and 12GB |
|
Switch fabric |
High-capacity full-duplex integrated dual-switch fabric 220 Gbps/slot with single RSP 440 Gbps/slot with dual RSP |
High-capacity full-duplex integrated dual-switch fabric 220 Gbps/slot with single RSP 440 Gbps/slot with dual RSP |
|
Memory internal |
6-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP440-TR Solid state disk: two 16-GB SSDs 8-GB embedded USB |
12-GB ECC-protected DRAM for A9K-RSP440-SE Solid state disk: two 16-GB SSDs 8-GB embedded USB |
|
Memory external |
USB 2.0 Type A receptacle |
USB 2.0 Type A receptacle |
Get more information
Do you have any question about the HKShanhai Group Limited A9K-RSP440-TR
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited A9K-RSP440-TR Specification
A9K-RSP440-TR Specifications |
|
|
Switch fabric |
◦   High-capacity full-duplex integrated dual-switch fabric ◦  ??20 Gbps/slot with single RSP ◦  ??40 Gbps/slot with dual RSP |
|
Memory internal |
◦  ??-GB Error-Correcting Code (ECC)-protected DRAM for A9K-RSP440-TR ◦   Solid state disk: two 16-GB SSDs ◦  ??-GB embedded USB |
|
Memory external |
◦   USB 2.0 Type A receptacle |
|
Timing system |
◦   Timing: Two independent clock source connections ◦   IEEE 1588 support: Copper 10/100-Mbps RJ-45 Ethernet port ◦   GPS ◦   ToD (RS422 and RS232) ◦  ??-pps RS422 or 1.0/2.3 50-ohm RF connector ◦  ??0MHz in/out 1.0/2.3 50-ohm RF connector |
|
Management |
◦   Two 100/1000 BASE-T (RJ-45) LAN management ports ◦   One console port ◦   One auxiliary port ◦   Two 10-GE Small Form-Factor Pluggable Plus (SFP+) virtualization cluster ports |
|
Alarms |
◦   Alarm outputs: Critical alarm (CR), major alarm (MJ), and minor alarm (MN) |
|
LEDs |
◦   Amber alarm cut-off (ACO) and lamp test ◦   System synchronization alarm (SYNC) ◦   Compact Flash activity (CF) ◦   Solid State Drive (SSD) ◦   Fan tray visual indicator (UFAN/LFAN) |
