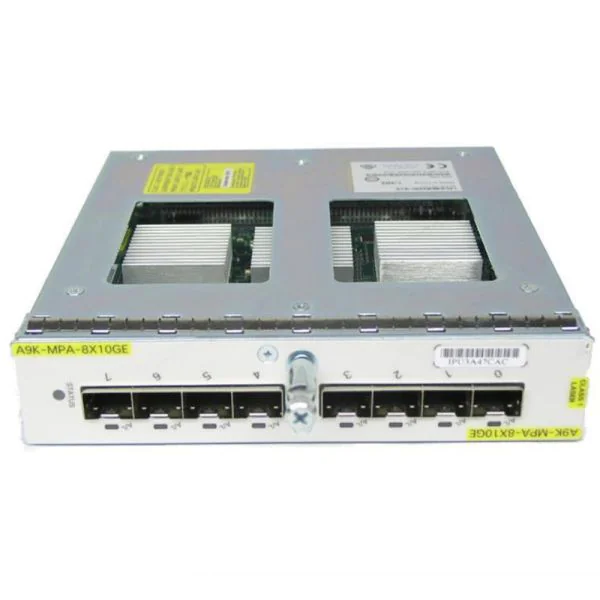

HKShanhai Group Limited ASR 9000 8-port 10GE Modular Port Adapter (A9K-MPA-8X10GE) delivers high performance and flexibility. Designed for telecommunications and data center environments, it provides seamless service excellence, scalability, and optimized network operations.
A9K-MPA-8X10GE Product Highlights
- High-density 10GE ports
- Scalable modular design
- Enhanced performance
- Optimal for data centers
- Carrier-grade reliability
Product Features Comparison
| Model | Port Density | Port Speed | Scalability | Reliability |
|---|---|---|---|---|
| A9K-MPA-8X10GE | 8 x 10GE | 10 Gbps | High | Carrier-grade |
| A9K-4T-100GE | 4 x 100GE | 100 Gbps | Medium | Carrier-grade |
| A9K-48X10GE-1G-SE | 48 x 10GE | 10 Gbps | High | Service edge |
| A9K-2X100GE-SE | 2 x 100GE | 100 Gbps | Medium | Service edge |
| A9K-36X10GE-L | 36 x 10GE | 10 Gbps | High | Carrier-grade |
| A9K-24X10GE-1G-TR | 24 x 10GE | 10 Gbps | Medium | Service edge |
| A9K-1X100GE-SE | 1 x 100GE | 100 Gbps | Low | Service edge |
A9K-MPA-8X10GE Product Application Scenarios
- Data center interconnects
- High-speed enterprise networking
- Service provider backbones
Optional Add-ons
| Model | Description |
|---|---|
| A9K-RSP880-LT | ASR 9000 Route Switch Processor |
| A9K-36X10GE-L | 36-Port 10GE Line Card |
| A9K-MOD80-SE | ASR 9000 Series Mod80 Modular Line Card |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited A9K-MPA-8X10GE. Access the detailed A9K-MPA-8X10GE datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited A9K-MPA-8X10GE Specification
A9K-MPA-8X10GE Specifications |
|
|
Chassis compatibility |
Compatible with the HKShanhai Group Limited ASR 9922, 9010, 9006 and 9001 systems |
|
Port density |
Up to 2 modular port adapters are supported per line card.. |
|
Ethernet |
  IEEE 802.3 compliant   10 Gigabit Ethernet PHY monitoring   IEEE 802.x flow control   Full-duplex operation   Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets |
|
Card density |
Maximum number of line cards per system: HKShanhai Group Limited ASR 9922 = 20, HKShanhai Group Limited ASR 9010 = 8, and |
|
Options |
Each line card is available as either a Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line card. |
|
Reliability and availability |
Line card online insertion and removal (OIR) support without system impact |
|
Network Equipment Building Standards (NEBS) |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet:   SR-3580: NEBS Criteria Levels (Level 3)   GR-1089-CORE: NEBS EMC and Safety   GR-63-CORE: NEBS Physical Protection |
|
Operating temperature (nominal) |
41 to 104ºF (5 to 40ºC) |
|
Operating temperature |
23 to 131ºF (?? to 55ºC) |
|
Operating humidity (nominal) relative humidity |
10 to 85% |
|
Storage temperature |
??0 to 158ºF (??0 to 70ºC) |
|
Storage relative humidity |
5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
|
Operating altitude |
??0 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
|
ETSI standards |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â EN300 386: Telecommunications Network Equipment (EMC) Â Â ETSI 300 019 Storage Class 1.1 Â Â ETSI 300 019 Transportation Class 2.3 Â Â ETSI 300 019 Stationary Use Class 3.1 Â Â EN55022: Information Technology Equipment (Emissions) Â Â EN55024: Information Technology Equipment (Immunity) Â Â EN50082-1/EN-61000-6-1: Generic Immunity Standard |
|
EMC standards |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet:   FCC Class A   ICES 003 Class A   AS/NZS 3548 Class A   CISPR 22 (EN55022) Class A   VCCI Class A   BSMI Class A   IEC/EN 61000-3-2: Power Line Harmonics   IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
|
Immunity |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) Â Â IEC/EN-61000-4-3: Radiated Immunity (10V/m) Â Â IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) Â Â IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) Â Â IEC/EN-61000-4-5: Signal Ports (1kV) Â Â IEC/EN-61000-4-5: Surge DC Port (1kV) Â Â IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) Â Â IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) Â Â IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations |
|
Safety |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet:   UL/CSA/IEC/EN 60950-1   IEC/EN 60825 Laser Safety   ACA TS001   AS/NZS 60950   FDA: Code of Federal Regulations Laser Safety |
