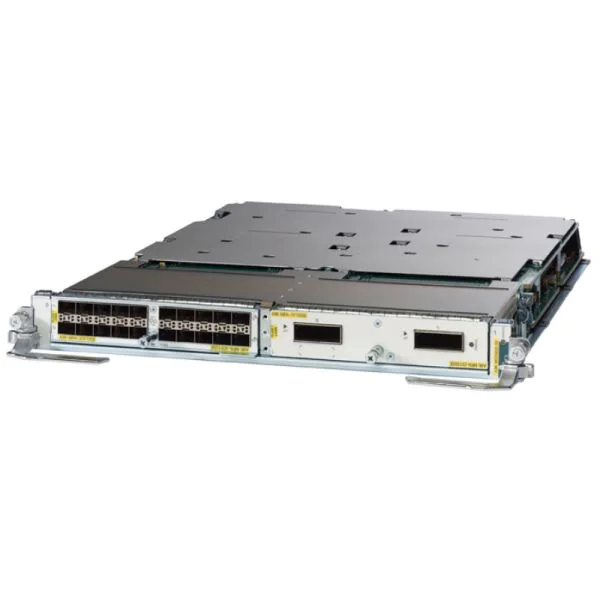

HKShanhai Group Limited’s A9K-MOD400-TR, a 400G Modular Linecard, is optimized for packet transport, catering to high-performance networking needs. This linecard effectively combines advanced features, exceptional throughput, and superior reliability, making it ideal for telecom operators and data centers looking to enhance network efficiency and capacity.
A9K-MOD400-TR Product Highlights
- 400G capacity
- Modular design
- Packet transport optimization
- High reliability
- Enhanced network efficiency
Product Features Comparison
| Model | Throughput | Form Factor | Packet Optimization | Port Density | Flexibility | Warranty |
|---|---|---|---|---|---|---|
| A9K-MOD400-TR | 400 Gbps | Modular | Yes | High | High | 5 Years |
| A9K-MOD200-SE | 200 Gbps | Modular | No | Medium | High | 5 Years |
| C9400-LC-24XS | 240 Gbps | Fixed | No | High | Medium | 5 Years |
| N9K-X9736PQ | 360 Gbps | Fixed | No | Medium | Medium | 3 Years |
| ASR1002-HX | 100 Gbps | Fixed | Yes | Low | High | 5 Years |
| ISR4451-X | 10 Gbps | Fixed | No | Low | Medium | 5 Years |
| WS-X6548-GE-TX | 40 Gbps | Modular | Yes | Medium | Medium | 3 Years |
A9K-MOD400-TR Product Application Scenarios
- High-speed internet backbone
- Data center interconnects
- ISP core network enhancements
Optional Add-ons
| Model | Description |
|---|---|
| HKShanhai Group Limited A9K-RSP-880 | Route Switch Processor |
| HKShanhai Group Limited A9K-400G-DWDM | 400G DWDM Network Module |
| HKShanhai Group Limited A9K-LC-40GE | 40GE Line Card |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited A9K-MOD400-TR. Access the detailed A9K-MOD400-TR datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited A9K-MOD400-TR Specification
 A9K-MOD400-TR Specifications |
|
|
Chassis compatibility |
Compatible with the HKShanhai Group Limited ASR 9922, 9912, 9910, 9906, 9904, 9010, and 9006 routers |
|
Port density |
In the 400G modular line card, up to 2 modular port adapters are supported per line card for up to: Â Â 40-port 10G or 64-port 1G interfaces
  4-port 40G interfaces
  4-port 100G interfaces
In the 200G modular line card, two modular port adapters are supported per line card, except for the 2-port 100 Gigabit modular port adapter and the 20-port 10 Gigabit modular port adapter. The 2-port 100 Gigabit and 20-port 10 Gigabit modular adapters are supported only in bay 0 of the 200G modular line card. The achievable port density on this line card is as follows: Â Â 20-port 10G or 64-port 1G interfaces
  4-port 40G interfaces
  2-port 100G interfaces
|
|
Ethernet |
  IEEE 802.3 compliant
  10 Gigabit Ethernet PHY monitoring
  IEEE 802.x flow control
  Full-duplex operation
  Per-port byte and packet counters for policy drops, oversubscription drops, Cyclic Redundancy Check (CRC) error drops, packet sizes, and unicast, multicast, and broadcast packets
|
|
Card density |
Maximum number of line cards per system: Â Â HKShanhai Group Limited ASR 9922: 20
  HKShanhai Group Limited ASR 9912: 10
  HKShanhai Group Limited ASR 9910: 8
  HKShanhai Group Limited ASR 9906: 4
  HKShanhai Group Limited ASR 9904: 2
  HKShanhai Group Limited ASR 9010: 8
  HKShanhai Group Limited ASR 9006: 4
|
|
Options |
Each line card is available as either a service edge – optimized line card (enhanced QoS) or a packet transport – optimized line card (basic QoS) |
|
Reliability and availability |
Line card Online Insertion and Removal (OIR) support without system impact |
|
Network Equipment Building Standards (NEBS) |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â SR-3580: NEBS Criteria Levels (Level 3)
  GR-1089-CORE: NEBS EMC and Safety
  GR-63-CORE: NEBS Physical Protection
|
|
Operating temperature (nominal) |
41 to 104°F (5 to 40°C) |
|
Operating temperature |
23 to 131°F (-5 to 55°C) |
|
Operating humidity (nominal) relative humidity |
10 to 85% |
|
Storage temperature |
-40 to 158°F (-40 to 70°C) |
|
Storage relative humidity |
5 to 95% Note:Â Not to exceed 0.024 kg of water per kg of dry air |
|
Operating altitude |
-60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
|
ETSI standards |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â EN300 386: Telecommunications Network Equipment (EMC)
  ETSI 300 019 Storage Class 1.1
  ETSI 300 019 Transportation Class 2.3
  ETSI 300 019 Stationary Use Class 3.1
  EN55022: Information Technology Equipment (Emissions)
  EN55024: Information Technology Equipment (Immunity)
  EN50082-1/EN-61000-6-1: Generic Immunity Standard
|
|
EMC standards |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â FCC Class A
  ICES 003 Class A
  AS/NZS 3548 Class A
  CISPR 22 (EN55022) Class A
  VCCI Class A
  BSMI Class A
  IEC/EN 61000-3-2: Power Line Harmonics
  IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
|
|
Immunity |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
  IEC/EN-61000-4-3: Radiated Immunity (10V/m)
  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
  IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
  IEC/EN-61000-4-5: Signal Ports (1kV)
  IEC/EN-61000-4-5: Surge DC Port (1kV)
  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
  IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
|
|
Safety |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â UL/CSA/IEC/EN 60950-1
  IEC/EN 60825 Laser Safety
  ACA TS001
  AS/NZS 60950
  FDA: Code of Federal Regulations Laser Safety
|
