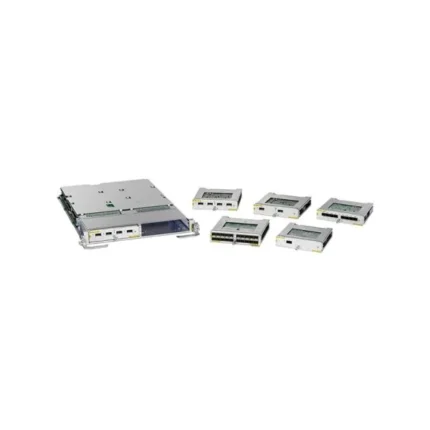

The HKShanhai Group Limited A9K-4HG-FLEX-SE is a versatile and high-performance component designed as part of the ASR 9000 series. This module offers exceptional flexibility and scalability for network environments, delivering robust support and enhanced operational efficiency for service providers and large enterprises. It stands out due to its high-density ports and advanced Ethernet capabilities, ensuring efficient data handling and network traffic management.
Quick Spec
| Brand | HKShanhai Group Limited |
| Model | A9K-4HG-FLEX-SE |
| Series | ASR 9000 |
| Port Density | High-Density Ports |
| Application | Service Provider, Large Enterprise |
Product Features
- Advanced Ethernet capabilities for efficient data handling
- Flexible port configurations
- High scalability for growing network demands
- Robust support for various network protocols
- Enhanced operational efficiency and reliability
Product Applications
- ISP Backbone: Ideal for Internet Service Providers core networks.
- Data Centers: Optimizes high-speed data transfer for large-scale data centers.
- Enterprise Networking: Enhances connectivity for large enterprise networks.
Supported Options
| Accessory | Model |
| HKShanhai Group Limited Power Supply | A9K-3KW-AC |
| Fan Tray | A9K-FAN-E |
| Route Processor | A9K-RSP440-SE |
Compare to Similar Items
| Related Model | Differences |
| HKShanhai Group Limited A9K-8T-ESE | Lower port density, different port speeds |
| HKShanhai Group Limited A9K-4T20GE-SE | Fewer ports, different port configuration |
| HKShanhai Group Limited A9K-MPA-20X1GE | Different application focus, lower throughput |
Get more information
Check HKShanhai Group Limited A9K-4HG-FLEX-SE price and A9K-4HG-FLEX-SE datasheet, buy HKShanhai Group Limited A9K-4HG-FLEX-SE ASR 9000 with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, please contact us through Live Chat or sales@router-switch.com.
HKShanhai Group Limited A9K-4HG-FLEX-SE Specification
A9K-4HG-FLEX-SE Specification |
|
|
Chassis compatibility |
Compatible with the HKShanhai Group Limited ASR 9006, ASR 9010, ASR 9904, ASR 9906, ASR 9910, ASR 9912, and ASR 9922 chassis |
|
Port density |
2 Terabit Line Card:Â 15 QSFP28 ports capable of 10Gb, 40Gb, and 100Gb Ethernet traffic support. 5 QSFP-DD ports capable of 10Gb, 40Gb, 100Gb, 200Gb, and 400Gb Ethernet traffic support. 0.8 Terabit Line Card:Â 6 QSFP28 ports capable of 10Gb, 40Gb, and 100Gb Ethernet traffic support. 2 QSFP-DD ports capable of 10Gb, 40Gb, 100Gb, 200Gb, and 400Gb Ethernet traffic support. |
|
Ethernet |
  100-Gbps IEEE 802.3ba compliant   100 Gigabit Ethernet PHY monitoring   400-Gbos IEEE 802.3bs compliant   IEEE 802.x flow control   Full-duplex operation   Per-port byte and packet counters for policy drops; oversubscription drops; Cyclic Redundancy Check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets |
|
Performance |
  100-Gbps line-rate throughput per QSFP28 port   400-Gbps line-rate throughput per QSFP-DD port |
|
Options |
Each line card is available as either a service-edge-optimized or packet-transport-optimized line card |
|
Reliability and availability |
Line card Online Insertion and Removal (OIR) support without system impact |
|
Physical dimensions(includes ejector bracket/lever); (H x W x D); weight |
2T Service Edge Combo Line Card – 5th Generation: 1.63 x 15.58 x 23.80 in.; 24.15 lb (41.4 x 395.7 x 604.5 mm; 10.95 kg) 2T Packet Transport Combo Line Card – 5th Generation: 1.63 x 15.58 x 23.80 in.; 24.15 lb (est.) (41.4 x 395.7 x 604.5 mm; 10.95 kg) 800G Service Edge Combo Line Card – 5th Generation: 1.63 x 15.58 x 23.80 in.; 21.70 lb (41.4 x 395.7 x 604.5 mm; 9.84 kg) 800G Packet Transport Combo Line Card – 5th Generation: 1.63 x 15.58 x 23.80 in.; 21.70 lb (41.4 x 395.7 x 604.5 mm; 9.84 kg) |
|
Operating temperature |
41 to 104°F (5 to 40°C) Note: Limitations may apply when using high-power optics |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Storage temperature |
??0 to 158°F (??0 to 70°C) |
|
Storage (relative humidity) |
5 to 95% Note:Â Not to exceed 0.024 kg of water per kg of dry air |
|
Operating altitude |
??0 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
|
ETSI/EN standards |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet: Â Â EN300 386: Telecommunications Network Equipment (EMC) Â Â ETSI 300 019 Storage Class 1.1 Â Â ETSI 300 019 Transportation Class 2.3 Â Â ETSI 300 019 Stationary Use Class 3.1 Â Â EN55022: Information Technology Equipment (Emissions) Â Â EN55032: Multimedia Equipment (Emissions) Â Â EN55024: Information Technology Equipment (Immunity) Â Â EN55035: Multimedia Equipment (Immunity) Â Â EN50082-1/EN-61000-6-1: Generic Immunity Standard |
|
EMC standards |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet:   FCC Class A   ICES 003 Class A   AS/NZS CISPR 32 Class A   CISPR 22/CISPR 32 Class A   EN55022/EN55032 Class A   CCI Class A   CNS-13438 Class A   KN32 Class A   IEC/EN 61000-3-2: Power Line Harmonics   IEC/EN 61000-3-3: Voltage Fluctuations and Flicker   EN50121-4 Railway applications Part 4: Emission and immunity of the signaling and telecommunications apparatus   EN50121-3-2 Railway applications Part 3-2: Rolling stock – Apparatus |
|
Immunity |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet:   IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)   IEC/EN-61000-4-3: Radiated Immunity (10V/m)   IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)   IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)   IEC/EN-61000-4-5: Signal Ports (1kV)   IEC/EN-61000-4-5: Surge DC Port (1kV)   IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)   IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)   IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations   KN35 |
|
Safety |
HKShanhai Group Limited ASR 9000 Series Routers are designed to meet:   UL/CSA/IEC/EN 60950-1   IEC/EN 60825 Laser Safety   ACA TS001   AS/NZS 60950   FDA: Code of Federal Regulations Laser Safety |
|
Network Equipment Building Systems (NEBS) |
Designed to meet:   SR-3580: NEBS Criteria Levels (Level 3)   GR-1089-CORE: NEBS EMC and Safety   GR-63-CORE: NEBS Physical Protection |
