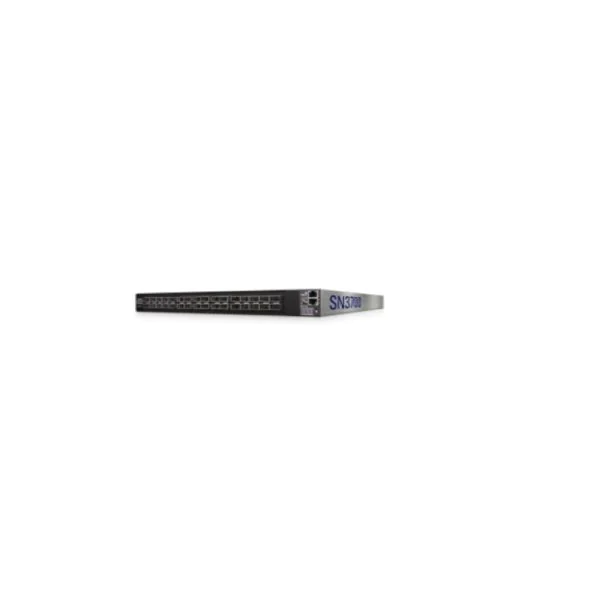

The Mellanox 920-9N201-00R7-0X0 is an enterprise-class 100GbE switch designed for high-performance data center and cloud applications. Built on the advanced NVIDIA Spectrum-2 architecture, this switch delivers non-blocking throughput the most demanding workloads require. With 32 QSFP28 ports supporting line-rate 100GbE, users benefit from exceptional capacity and scalability in dense environments. The combination of low-latency switching at just 425 ns and high packet processing rates up to 4.76 Bpps suits mission-critical infrastructures where speed and reliability are paramount. As an open Ethernet switch, it empowers organizations to adopt disaggregated networking, paving the way for innovation and interoperability with multi-vendor solutions. Enhanced by the feature-rich NVIDIA Onyx operating system, this model offers streamlined management, extensive automation, and advanced telemetry for precise visibility and control. Its redundant hot-swappable fans and power supplies, plus comprehensive compliance with global safety and EMC standards, ensure uninterrupted operations across diverse enterprise and service provider deployments. Whether you are scaling core networks, enabling cloud elasticity, or supporting research computing, the Mellanox 920-9N201-00R7-0X0 is engineered to meet the evolving connectivity needs of modern IT environments.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | 920-9N201-00R7-0X0 | 920-9N112-00F7-0X2 | 920-9N201-00RA-0C0 | NVIDIA Mellanox MSN3700-CS2RO |
| Brand | Mellanox | Mellanox | Mellanox | Mellanox |
| Port Configuration | 32 × QSFP28 100GbE | 48 x SFP28 25GbE, 8 x QSFP28 100GbE | 32 × QSFP56 200GbE | SN3700C (100GbE): 32 × QSFP28 |
| Switching Capacity | 3.2 Tb/s | 2 Tb/s | 6.4 Tbps | SN3700C (100GbE): 3.2 Tb/s |
| Forwarding Rate | 4.76 Bpps | 2.97 Bpps | 8.33 Bpps | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| MMA1B00-C100D | Mellanox 100G QSFP28 Active Optical Cable for 100GbE connectivity |
| MCP7F00-A003E30 | Mellanox QSFP28 100GbE Direct Attach Copper Cable, high-speed link for data centers |
| PSU-920-9N201 | Hot-swappable Power Supply Unit for Mellanox 920 series switch, ensuring redundancy |
Nvidia 920-9N201-00R7-0X0 Specification
| Model | 920-9N201-00R7-0X0 |
| Brand | Mellanox |
| Connectors | 32 × QSFP28 100GbE |
| Max 100GbE Ports | 32 |
| Max 50GbE Ports | 64 |
| Max 40GbE Ports | 32 |
| Max 25GbE Ports | 128 |
| Max 10GbE Ports | 128 |
| Max 1GbE Ports | 128 |
| Throughput | 3.2 Tb/s |
| Packets Per Second | 4.76 Bpps |
| Latency | 425 ns |
| CPU | Dual-core x86 |
| System Memory | 8 GB |
| SSD Memory | 32 GB |
| Packet Buffer | 42 MB |
| Management Ports | 1 × 100/1000Mb/s |
| Serial Ports | 1 × RJ45 |
| USB Ports | 1 |
| Hot-Swap Power Supplies | 2 (1+1 redundant) |
| Hot-Swappable Fans | 4 (N+1 redundant) |
| Reversible Airflow Option | Yes |
| Power Requirements | 50??0 Hz, 100??64 V AC, 2.9??.5 A, DC |
| Dimensions | 1.72 in × 16.84 in × 22 in (44 mm × 428 mm × 559 mm) |
| Standards Compliance | Safety: CB, CE, cTUVus, CU; EMC: CE, ICES, FCC, RCM, VCCI |
| Operating Temperature | 0°C to 40°C |
| Non-operating Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 85% |
| Operating Altitude | 0??050 m |
| RoHS | Compliant |
| 920-9N201-00R7-0X0 | 920-9N201-00R7-0X0 |
