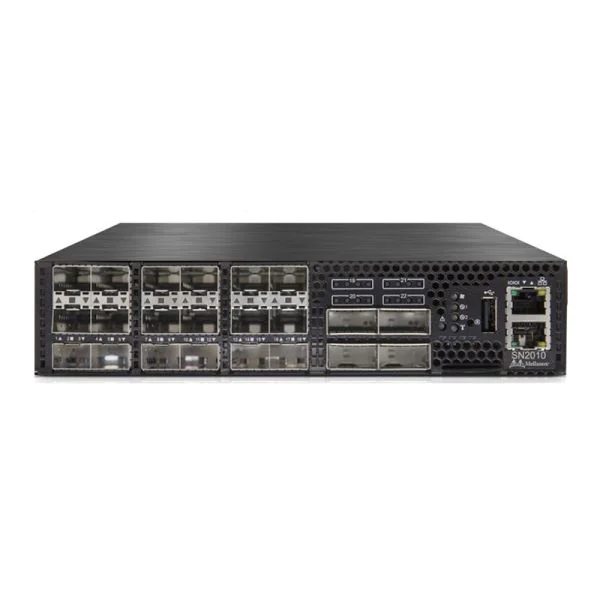

920-9N110-00F7-0C3, Nvidia Spectrum Switch, 18xSFP28/4xQSFP28/2xAC PSU

SKU: 360P8ATDIGWM15JXPB6Z2MS3CCV2ZTCX2UPY Category: Spectrum Series

Mellanox delivers an enterprise-class switch with the 920-9N110-00F7-0C3, built for data-intensive businesses that demand high throughput and advanced flexibility. As a 1U Open Ethernet switch, it caters to scalable networking topologies with seamless integration of open-source Cumulus Linux, providing extensive customization and automation for modern network requirements. The platform stands out with 16 QSFP28 100GbE ports, supporting a diverse range of high-density SFP28 and QSFP28 connections to deliver multi-rate capability across 10/25/40/50/100GbE networks. Businesses investing in next-generation cloud, data center, or service provider infrastructure will benefit from its 1.6 Tbps system throughput and ultra-low 300 ns latency, reliably meeting demanding application needs. The built-in ATOM x86 CPU ensures efficient control plane processing, while features like reversible airflow, SSD storage, and centralized management empower operators to optimize power, cooling, and network operations. This switch fulfills the needs of distributors seeking robust supply chain options, integrators aiming for flexible deployment, and end users who demand unmatched speed and open-ecosystem adaptability. Designed for forward-thinking environments in Asia, Europe, Africa, and North America, it positions itself as the ideal engine for high-performance, open-network innovation centered around SFP28 and QSFP28 connectivity, maximizing network efficiency and future-proofing any growth strategy.

Product Highlights

1.6 Tbps

Throughput

300 ns

Latency

16 × 100G

QSFP28

Product Applications Scenarios

Data Center

This switch optimizes modern data center fabrics, enabling high-density, low-latency connections to support growing workloads and seamless scalability.

Cloud Services

Empowers cloud providers with open networking and large bandwidth, ensuring robust, automated service deployments and consistent uptime.

Service Providers

Enhances core and edge network aggregation, supporting multi-rate traffic and efficient peering for high-throughput, low-latency services worldwide.

Product Features Comparison


Model	920-9N110-00F7-0C3	920-9N112-00R7-0C2	NVIDIA Mellanox MSN3700-VS2FC	C9500-24Y4C-1E
Brand	Mellanox	Mellanox	Mellanox	Cisco
Port Configuration	16 × QSFP28 100GbE	48 SFP28 25GbE, 8 QSFP28 100GbE	32 × QSFP56/28 (200/100GbE)	n/a
Switching Capacity	1.6 Tbps	2 Tbps	3.2~6.4 Tb/s	Up to 2.0 Tbps
Forwarding Rate	2.38 Bpps	2.97 Bpps	SN3700: 6.4 Tbps, SN3700C: 3.2 Tbps	Up to 1 Bpps
PoE Budget	n/a	n/a	n/a	n/a
Stacking Capability	n/a	n/a	n/a	n/a

Optional Add-ons

Model Number	Description
MMA1B00-C100D	Mellanox SFP28 100GbE Compatible Optical Transceiver, high-speed data link.
MSQ28-100G-AOC	Mellanox QSFP28 Active Optical Cable for 100GbE, designed for data center interconnect.
MPA1B-KIT	Mellanox 1U Switch Mounting Rail Kit, supports quick installation in standard racks.

Nvidia 920-9N110-00F7-0C3 Specification

Model	920-9N110-00F7-0C3
Brand	Mellanox
Connectors	16 × QSFP28 100GbE
Max 100GbE Ports	16
Max 50GbE Ports	32
Max 40GbE Ports	16
Max 25GbE Ports	64
Max 10GbE Ports	64
Throughput	1.6 Tbps
Packets Per Second	2.38 Bpps
Latency	300 ns
CPU	ATOM x86
System Memory	8 GB
SSD Memory	16 GB
Packet Buffer	16 MB
Management Ports	1 × 100/1000 Mbps
Serial Ports	1 × RJ45
USB Ports	1
Hot-Swap Power Supplies	No
Hot-Swappable Fans	No
Reversible Airflow Option	Yes
Power	94 W, 50??0 Hz, 100??64 V AC, 4.5??.9 A
Size	1.72 in × 7.87 in × 20 in (43.9 mm × 200 mm × 508 mm)
