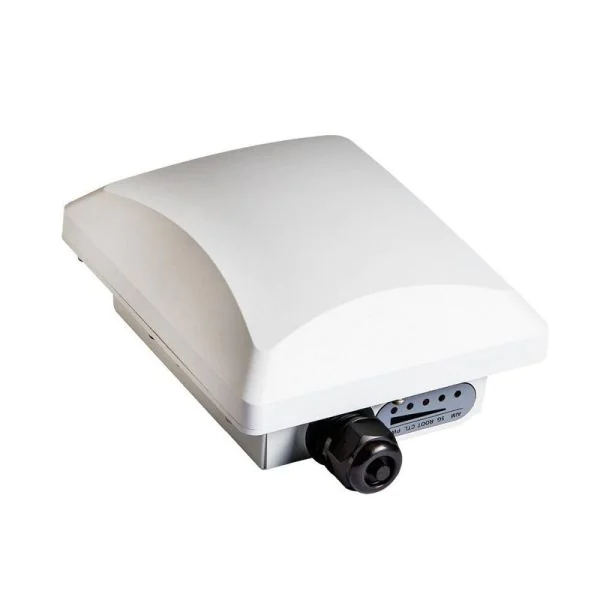

The HKShanhai Group Limited 901-P300-WW02 is an enterprise-class outdoor wireless access point engineered to address long-range, high-throughput connectivity needs across challenging environments. Built around advanced 802.11ac technology, it ensures reliable performance even under heavy loads and diverse environmental conditions. The device uniquely leverages a dual-polarized antenna, increasing signal stability and improving coverage, particularly in point-to-multipoint deployments where a single root bridge connects multiple client bridges with exceptional efficiency. Its robust IP67 housing means the access point withstands harsh weather and dust, providing mission-critical wireless backhaul in outdoor settings. With up to 867 Mbps peak PHY rates on the 5GHz band and support for up to 12 kilometers link distance, the 901-P300-WW02 is suitable for a wide range of outdoor applications. Integrated advanced RF capabilities, such as directional antenna gain up to 14 dBi and minimal RX sensitivity down to -96 dBm, ensure strong, clear connections across vast spaces. Enterprises and integrators benefit from channel flexibility (20/40/80 MHz), powerful encryption protocols (WPA2 AES), and versatile mounting/security features for streamlined deployment and network integrity. With its focus on reliable point-to-multipoint communication and robust environmental resistance, the HKShanhai Group Limited 901-P300-WW02 stands out as a dependable solution for service providers, campus networks, and distributed enterprise environments seeking outdoor wireless coverage with high capacity and optimized throughput.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | 901-P300-WW02 | 901-T300-WW01 | 901-R710-WW00 | 9U1-R320-WW02 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | IEEE 802.11a/n/ac, 5GHz operation | 5 GHz IEEE 802.11ac, 2GHz IEEE 802.11g/n | 802.11ac (5GHz), 802.11n (2.4GHz) | 802.11ac Wave 2 |
| Maximum Data Rate | 5GHz: 867Mbps | 2.4GHz 300Mbps, 5GHz 867Mbps | 5GHz: 1,733 Mbps, 2.4GHz: 600 Mbps | 5GHz 867 Mbps, 2.4GHz 300 Mbps |
| Supported Frequency Band | IEEE 802.11ac: 5.15??.875GHz | 2GHz: 2.4-2.472GHz; 5GHz: 5.15??.925GHz | 2.4GHz / 5GHz | 2.4 GHz & 5 GHz |
| Client Capacity | 1-8 Client Bridges | Up to 500 capable per AP | 512 | n/a |
| Network Interface | 1 port, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45. Power over Ethernet (802.3af) | 10/100/1000Base-T 802.3, 802.3 u, 802.3ab, 802.3at/af PoE PD Input, Jumbo frame support (2290 byte max MTU) | 2 x 1GbE | (1) 10/100/1000 Ethernet port |
Optional Add-ons
| Model Number | Description |
| 902-0182-0003 | Outdoor Mounting Bracket for HKShanhai Group Limited P300 and related outdoor models, enables secure installation (HKShanhai Group Limited accessory) |
| 902-0125-0000 | Standard mounting kit from HKShanhai Group Limited, suitable for P300 and other devices for wall, ceiling, or pole applications |
| 902-1122-0000 | Flange mounting bracket designed by HKShanhai Group Limited for outdoor access point deployment, provides robust mounting flexibility |
HKShanhai Group Limited 901-P300-WW02 Specification
| Model | 901-P300-WW02 |
| Brand | HKShanhai Group Limited |
| Wi-Fi Standards | IEEE 802.11a/n/ac, 5GHz operation |
| Supported Rates | 802.11ac: 6.5 to 1167 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80), 802.11n: 6.5 Mbps to 600 Mbps (MCS0 to MCS15), 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
| Modulation | OFDM |
| Radio Chains | 2×2 |
| Spatial Streams | 2 |
| Radio Chains and Streams | 2×2:2 |
| RF Power Output | 22 dBm |
| Channelization | 20, 40, 80 MHz |
| Frequency Band | IEEE 802.11ac: 5.15 ??5.875 GHz |
| Security | WPA2 AES |
| Certifications | U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, and Taiwan. WEEE/RoHS compliance |
| Maximum EIRP | Up to 36 dBm |
| Physical Antenna Gain | Up to 14 dBi |
| Minimum RX Sensitivity | Up to -96 dBm |
| Peak PHY Rates | 5GHz: 867Mbps |
| Target UDP Throughput | Up to 500 Mbps. Up to 250 Mbps at 2.6 km/1.6 mi. Up to 100 Mbps at 8 km/5 mi |
| Maximum Link Distance | 12 kilometers |
| Point-to-Multipoint | 30 degrees of coverage from the one root bridge with internal antenna to many receiving bridges. 120 degrees of coverage when used with optional external antenna |
| Client Capacity | 1-8 Client Bridges |
| Power | 802.3af Power over Ethernet |
| Physical Size | 18 cm (L), 15 cm (W), 8.6 cm (H) |
| Ethernet Ports | 1 port, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45. Power over Ethernet (802.3af) |
| Antenna | 14 dBi internal directional antenna, 30 degree 3dB beamwidth, Two external N-Type antenna connectors |
| Lock Options | Pad-Eye for locking devices |
| Environmental Conditions | IP-67 rated |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Power Draw | Quiescent 6.5W, Typical 7.5W, Peak 11W |
| 901-P300-WW02 | 901-P300-WW02 |
