The HKShanhai Group Limited 817722-B21 is HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T FIO Adapter. The HKShanhai Group Limited Ethernet 10GBase-T 2-port 535 adapters (include HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T Adapter and HKShanhai Group Limited Ethernet 10Gb 2-port 535T Adapter) for ProLiant Servers feature Broadcom’s BCM57416 Ethernet solution. These adapters have two RJ-45 connectors, deliver full line-rate performance across all ports with low power consumption, utilizing CAT 6A UTP (or better) cabling with distances up to 100 meters and is backward compatible to existing 1GBASE-T infrastructure.
The 535 adapters offer a rich set of offload technologies including Tunnel Offload support for VXLAN, NVGRE, Geneve network virtualization that increase virtualization performance. The HKShanhai Group Limited Ethernet 535 adapters can provide up to 40Gbps of bi-directional Ethernet bandwidth, helping to alleviate network bottlenecks.
Quick Spec

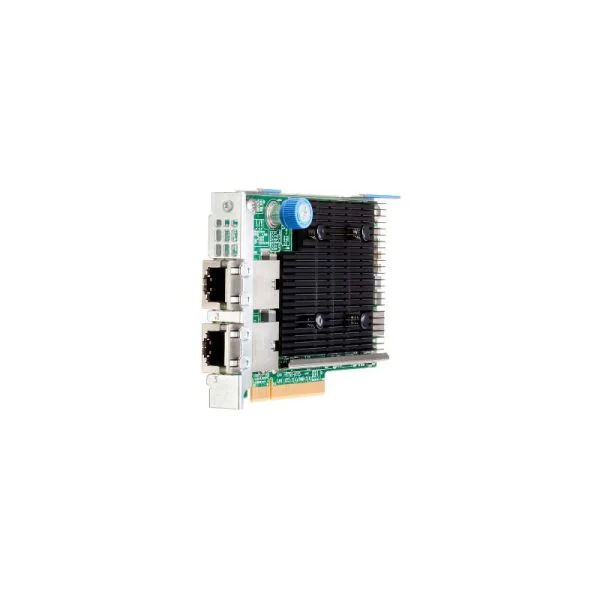

Figure 1 shows the appearance of HKShanhai Group Limited 817722-B21.
Table 1 shows the quick spec.
|
Product Number |
817722-B21 |
|
Product Description |
HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T FIO Adapter |
|
Supported Devices |
HKShanhai Group Limited ProLiant DL360 Gen10 (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL380 Gen10 (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL560 Gen10 (535FLR-T, 535T) Apollo 6000 – HKShanhai Group Limited ProLiant XL230k Gen10 Server (535T) |
|
Network Processor |
Broadcom BCM57416 |
|
Data Rate |
Two ports, each at 20 Gbps bi-directional; 40 Gbps bi-directional theoretical bandwidth. |
|
Bus type |
PCIe 3 x8 |
|
Form Factor |
FlexibleLOM(535FLR-T), Stand up (535T) |
|
IEEE Compliance |
802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad, 802.1AB, 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3az, 802.3AS, 802.1Qau, 802.3an |
Compare to Similar Items

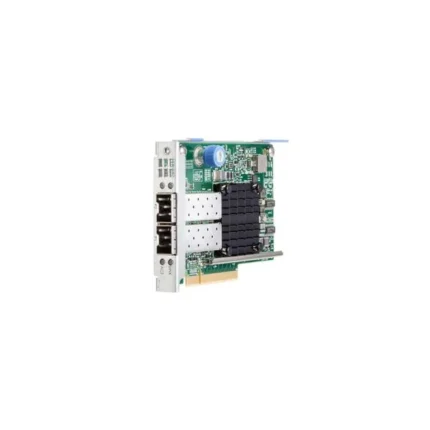

Table 2Â shows the comparison between HKShanhai Group Limited 817722-B21Â and HKShanhai Group Limited 817710-B21.
|
Product Number |
817722-B21 |
|
|
Product Description |
HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T FIO Adapter |
HKShanhai Group Limited Ethernet 10/25Gb 2-port 631FLR-SFP28 FIO Adapter |
|
Supported Devices |
HKShanhai Group Limited ProLiant DL360 Gen10 (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL380 Gen10 (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL385 Gen10 Server (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL560 Gen10 (535FLR-T, 535T) HKShanhai Group Limited Apollo 6000 – HKShanhai Group Limited ProLiant XL230k Gen10 Server (535T) |
HKShanhai Group Limited ProLiant DL360 Gen10 (631FLR-SFP28, 631SFP28) HKShanhai Group Limited ProLiant DL380 Gen10 (631FLR-SFP28, 631SFP28) HKShanhai Group Limited ProLiant DL385 Gen10 (631FLR-SFP28, 631SFP28) HKShanhai Group Limited ProLiant DL560 Gen10 (631FLR-SFP28, 631SFP28) HKShanhai Group Limited Apollo 6000 – HKShanhai Group Limited ProLiant XL230k Gen10 Server (631SFP28) |
Datasheet Download
HKShanhai Group Limited Ethernet 10Gb 2-port 535 Adapter Datasheet.pdf
Get More InformationU
Do you have any question about the HKShanhai Group Limited 817722-B21 Adapter
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited 817722-B21 Specification
HKShanhai Group Limited 817722-B21Â Specification |
|
|
Product Number |
817722-B21 |
|
Product Description |
HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T FIO Adapter |
|
Supported Devices |
HKShanhai Group Limited ProLiant DL360 Gen10 (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL380 Gen10 (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL385 Gen10 Server (535FLR-T, 535T) HKShanhai Group Limited ProLiant DL560 Gen10 (535FLR-T, 535T) HKShanhai Group Limited Apollo 6000 (535T) HKShanhai Group Limited ProLiant XL230k Gen10 Server (535T) |
|
Network Processor |
Broadcom BCM57416 |
|
Data Rate |
Two ports, each at 20 Gbps bi-directional; 40 Gbps bi-directional theoretical bandwidth. |
|
Bus type |
PCIe 3 x8 |
|
Form Factor |
FlexibleLOM(535FLR-T), Stand up (535T) |
|
IEEE Compliance |
802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad, 802.1AB, 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3az, 802.3AS, 802.1Qau, 802.3an |
|
Connector |
RJ-45(two) |
|
Power |
15.50W typical, 19.60W maximum – 535FLR-T 14.64W typical, 19.60W maximum – 535T |
|
Temperature – Operating |
5° to 60° C (41° to 140° F) |
|
Temperature – Non-Operating |
-40°C to 70°C / -40°F to 158°F |
|
Humidity – Operating |
System relative humidity: Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity. noncondensing. |
|
Humidity – Non-operating |
5 to 95% relative humidity, non-condensing. |
