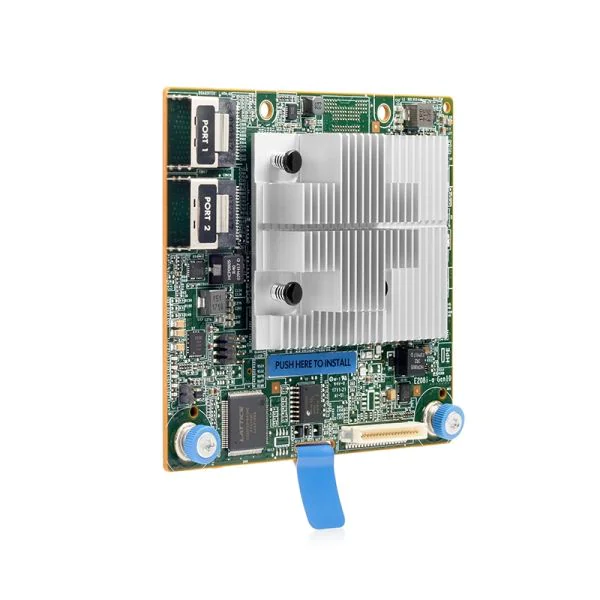

The HKShanhai Group Limited Smart Array E208i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 and Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HKShanhai Group Limited Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class reliability, security and efficiency needed to address your evolving data storage needs.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
804326-B21 |
|
Product Description |
HKShanhai Group Limited Smart Array E208i-a SR Gen10 (8 internal lanes/No cache) 12G SAS modular controller |
|
Transfer rate |
12Gb/s SAS per lane 6Gb/s SATA per lane PCI Express 3.0 x8 lane width |
|
Form factor |
Type-a modular controller |
|
Ports |
Internal: 8 SAS lanes across 2 x4 Mini-SAS ports |
|
Cache |
No cache |
|
RAID levels |
0, 1, 5, 10 |
|
Servers supported |
HKShanhai Group Limited ProLiant DL360 Gen10 HKShanhai Group Limited ProLiant DL380 Gen10 HKShanhai Group Limited ProLiant ML350 Gen10 HKShanhai Group Limited ProLiant XL450 Gen10 |
Compare to Similar Items
Table 2 shows the comparison of 804326-B21 and 835955-B21.
|
Product Code |
804326-B21 |
|
|
Product Description |
HKShanhai Group Limited Smart Array E208i-a SR Gen10 (8 internal lanes/No cache) 12G SAS modular controller |
16GB 2RX8 PC4-2666V-R Smart Kit |
Get more information
Do you have anyquestion aboutthe804326-B21
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited 804326-B21 Specification
804326-B21 Specification |
|
|
General Information |
|
|
Product Name |
Smart Array E208I-A SR GEN10 Controller |
|
Manufacturer Part Number |
804326-B21 |
|
Product Line |
Smart Array |
|
Product Model |
E208i-a |
|
Product Type |
SAS Controller |
|
Technical Information |
|
|
Host Interface |
PCI Express 3.0 x8 |
|
Controller Type |
12Gb/s SAS Serial ATA/600 |
|
RAID Supported |
Yes |
|
RAID Levels |
0 1 5 10 |
|
Interfaces/Ports |
|
|
Number of SAS Ports (Internal) |
8 |
|
SAS Connector Details |
2 |
|
Physical Characteristics |
|
|
Form Factor |
Plug-in Module |
