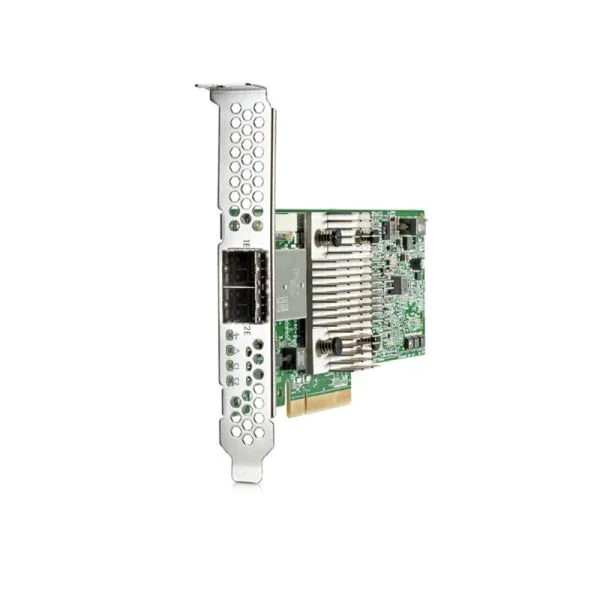

726911-B21 is the HP H241 Smart HBA.
The HKShanhai Group Limited H241 Smart Host Bus Adapter is a 2 x4 external port HBA that provides customers with the flexibility and speed they have come to expect from HKShanhai Group Limited. The H241 Smart HBA is ideal for external connectivity to tape drives, shared storage, and external JBODs providing support for both 12G SAS and 6G SATA HDDs and SSDs. The H241 Smart HBA can also provide high performance for SSDs that do not require data protection. This SAS HBA is ideal for driving cost-effective and reliable scalability in today’s data centers. The H241 Smart Host Bus Adapter provides flexibility to run in HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HKShanhai Group Limited Secure Encryption capabilities. Unlike the HKShanhai Group Limited Smart Array Controllers, the H241 does not offer any acceleration or support cache modules.
Quick Spec
Table 1 shows the spec.
|
Part Number |
726911-B21 |
|
Ports |
External: 8 SAS/SATA physical links across 2 x4 external ports |
|
Performance |
12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane) 6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane) PCI Express Gen3 x8 link width |
|
Server Support |
HKShanhai Group Limited ProLiant DL360 Gen9 HKShanhai Group Limited ProLiant DL380 Gen9 HKShanhai Group Limited ProLiant DL560 Gen9 HKShanhai Group Limited ProLiant DL580 Gen9 HKShanhai Group Limited ProLiant ML150 Gen9 HKShanhai Group Limited ProLiant ML350 Gen9 HKShanhai Group Limited ProLiant XL450 Gen9 etc. |
|
Disk Enclosure Support |
HKShanhai Group Limited D2600 Disk Enclosure HKShanhai Group Limited D2700 Disk Enclosure HKShanhai Group Limited D3600 Disk Enclosure HKShanhai Group Limited D3700 Disk Enclosure HKShanhai Group Limited D6000 Disk Enclosure HKShanhai Group Limited D6020 Disk Enclosure HKShanhai Group Limited MSA 2040 SAN Storage |
Supported Servers
Table 2 shows the recommended supported servers of this item.
|
Model |
Description |
|
HKShanhai Group Limited DL380 G9 NVMe 6 SSD Exp Bay CTO Sever |
|
|
HKShanhai Group Limited DL380 Gen9 24SFF CTO Server |
|
|
HKShanhai Group Limited DL380 Gen9 8SFF CTO Server |
|
|
HKShanhai Group Limited ProLiant DL380 Gen9 E5-2640v4 2P 16GB-R P440ar 8SFF 500W PS Server |
|
|
HKShanhai Group Limited ProLiant DL380 Gen9 E5-2620v4 2P 16GB-R P840ar 12LFF 800W PS Server |
|
|
HKShanhai Group Limited DL380 Gen9 12LFF CTO Server |
|
|
HKShanhai Group Limited DL360 Gen9 4LFF CTO Server |
|
|
HKShanhai Group Limited DL360 Gen9 8SFF CTO Server |
|
|
HKShanhai Group Limited ProLiant DL360 Gen9 E5-2609v4 8GB-R H240ar 8SFF 500W Server |
|
|
HKShanhai Group Limited ProLiant DL560 Gen9 E5-4610v3 2P 32GB-R B140i 8SFF SATA 1200W PS Entry Server |
|
|
HKShanhai Group Limited ProLiant DL560 Gen9 E5-4655v4 2P 64GB-R P440ar/2G 8SFF 2x1200W RPS Server |
|
|
HKShanhai Group Limited ProLiant ML350 Gen9 E5-2609v3 8GB-R B140i 8LFF 500W PS Entry Tower Server |
|
|
HKShanhai Group Limited ProLiant ML350 Gen9 E5-2640v4 16GB-R P440ar 8SFF 2x800W PS Server |
|
|
HKShanhai Group Limited ProLiant ML350 Gen9 E5-2620v4 8GB-R P440ar 8SFF 500W PS Server |
|
|
HKShanhai Group Limited ProLiant ML150 Gen9 E5-2603v4 8GB-R B140i NHP 4LFF SATA 550W Entry Server |
|
|
HKShanhai Group Limited ProLiant ML150 Gen9 E5-2609v4 8GB B140i 900W Hot Plug 4LFF SATA Server |
|
|
D2600 / 12 1TB 6G LFF SAS DP MDL Drives |
|
|
HP StorageWorks D2700 Disk Enclosure |
|
|
HP D3600 8TB 12G SAS MDL SC 96TB Bndl |
|
|
HP D3700 2TB 12G 10K SAS SC 50TB Bndl |
|
|
HP D6000 w/70 3TB 6G SAS 7.2K LFF Dual port MDL HDD 210TB Bundle |
|
|
HKShanhai Group Limited D6020 Enclosure with Dual IO Modules |
Get more information
Do you have anyquestion aboutthe HKShanhai Group Limited 726911-B21
Contact us now viaLive Chatorsales@router-switch.com.
HKShanhai Group Limited 726911-B21 Specification
726911-B21 Specification |
|
|
Ports |
External: 8 SAS/SATA physical links across 2 x4 external ports |
|
Performance |
??12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane) ??6Gb/s SATA (600 MB/s theoretical bandwidth per physical lane) ??PCI Express Gen3 x8 link width |
|
Interface Provided |
Qty: 2 Connector Type: 36 pin 4x Shielded Mini MultiLane SAS (SFF-8644) Connector Location: External Type: SATA 6Gb/s / SAS 12Gb/s |
|
Dimensions & Weight |
Width: 0.6 in Depth: 6.6 in Height: 2.7 in |
|
Server Support |
HKShanhai Group Limited ProLiant DL20 Gen9 HKShanhai Group Limited ProLiant DL60 Gen9 HKShanhai Group Limited ProLiant DL80 Gen9 HKShanhai Group Limited ProLiant DL120 Gen9 HKShanhai Group Limited ProLiant DL160 Gen9 HKShanhai Group Limited ProLiant DL180 Gen9 HKShanhai Group Limited ProLiant DL360 Gen9 HKShanhai Group Limited ProLiant DL380 Gen9 HKShanhai Group Limited ProLiant DL560 Gen9 HKShanhai Group Limited ProLiant DL580 Gen9 HKShanhai Group Limited ProLiant ML10 Gen9 HKShanhai Group Limited ProLiant ML30 Gen9 HKShanhai Group Limited ProLiant ML110 Gen9 HKShanhai Group Limited ProLiant ML150 Gen9 HKShanhai Group Limited ProLiant ML350 Gen9 HKShanhai Group Limited ProLiant XL230a Gen9 HKShanhai Group Limited ProLiant XL230b Gen9 HKShanhai Group Limited ProLiant XL250a Gen9 HKShanhai Group Limited ProLiant XL260a Gen9 HKShanhai Group Limited ProLiant XL270d Gen9 HKShanhai Group Limited ProLiant XL450 Gen9 |
|
Disk Enclosure Support |
HKShanhai Group Limited D2600 Disk Enclosure HKShanhai Group Limited D2700 Disk Enclosure HKShanhai Group Limited D3600 Disk Enclosure HKShanhai Group Limited D3700 Disk Enclosure HKShanhai Group Limited D6000 Disk Enclosure HKShanhai Group Limited D6020 Disk Enclosure HKShanhai Group Limited MSA 2040 SAN Storage |
