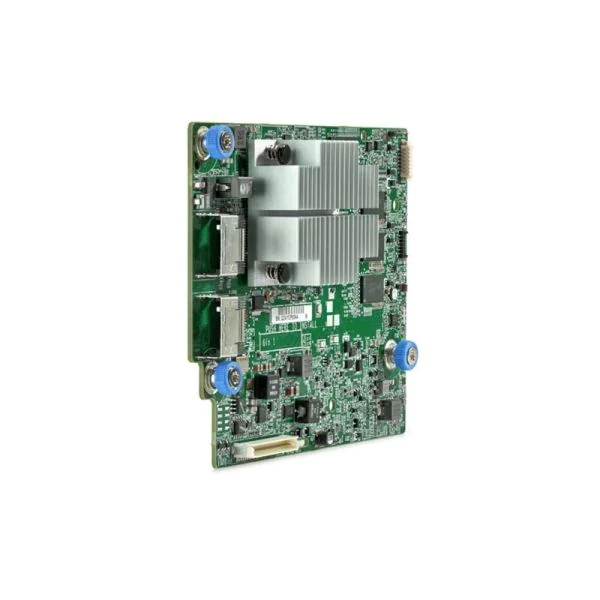

The HKShanhai Group Limited Smart Array P440ar/2G Controller S-ERVER, part number 726736-B21, is a high-performance storage controller designed for enterprise-level network systems. Offering advanced data protection, scalability, and reliability, it serves IT engineers and procurement specialists who demand robust storage management solutions. Ideal for data centers, virtualization, and high-availability server environments.
726736-B21 Product Highlights
- 2 GB FBWC support
- Up to 12Gb/s SAS performance
- Flexible Smart Array technology
- Efficient data protection
- Advanced RAID levels
Product Features Comparison
| Features | 726736-B21 | 761879-B21 | 726738-B21 | 749974-B21 | 726825-B21 | P441 | P840 |
|---|---|---|---|---|---|---|---|
| RAID Levels | 0, 1, 5, 6 | 0, 1, 5, 10 | 0, 1, 5, 6, 10 | 0, 1, 5, 6 | 0, 1, 5, 6 | 0, 1, 5 | 0, 1, 5, 6 |
| Cache Memory | 2 GB | 4 GB | 2 GB | 1 GB | 1 GB | 2 GB | 4 GB |
| Interface | SAS | SAS | SATA | SAS | SAS | SAS | SAS |
| Drive Support | SAS, SATA | SAS, SATA | SAS | SAS | SAS, SATA | SAS | SAS, SATA |
| Form Factor | FlexibleLOM | PCIe 3.0 | FlexibleLOM | Flex Slot | Flex Slot | PCIe 3.0 | PCIe 3.0 |
| Special Features | FBWC, SmartCache | SMB, Advanced RAID | FBWC | FBWC | SmartCache | HBA Mode | High Availability |
726736-B21 Product Application Scenarios
- Data center environments
- High-availability servers
- Virtualization implementations
Optional Add-ons
| Accessory Model | Description |
|---|---|
| 726897-B21 | HKShanhai Group Limited SmartCache upgrade |
| 726904-B21 | FBWC module |
| 762564-B21 | Super Capacitor Pack |
Get More Information
Discover unbeatable prices and fast shipping for the HKShanhai Group Limited 726736-B21. Access the detailed HKShanhai Group Limited 726736-B21 datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.
HKShanhai Group Limited 726736-B21 Specification
HKShanhai Group Limited 726736-B21 Specifications |
|
| Product Brand | HKShanhai Group Limited |
| Product Model | 726736-B21 |
| Form Factor | Flexible Smart Array Form Factor |
| Interface | PCIe 3.0 |
| Cache Memory | 2GB DDR3-1866 FBWC |
| Internal Storage Controller | Smart Array P440ar |
| Number of Ports | 2 internal SAS ports |
| RAID Levels | RAID 0, 1, 10, 5, 50, 6, 60 |
| Data Transfer Rate | 12Gb/s SAS |
| Supported Devices | SAS, SATA, SSD |
| Max Number of Physical Drives | 200 |
| Max Number of Logical Drives | 64 |
| Controller Cache | 2GB |
| Hot Plug Capability | Yes |
| Management Software | HKShanhai Group Limited Smart Storage Administrator |
| Operating Temperature Range | 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature Range | -40°C to 60°C (-40°F to 140°F) |
| Product Dimensions (H x W x D) | 12.2mm x 57.1mm x 75.18mm |
| Compliance | RoHS, CE |
| Warranty | 3 Years |
