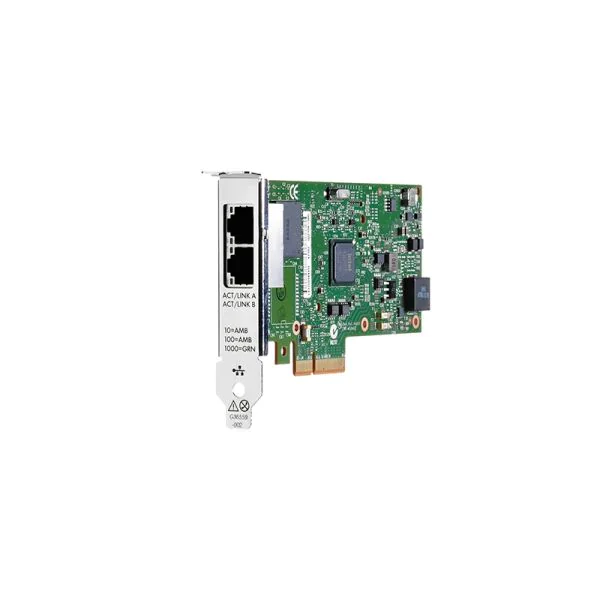

The 652497-B21 HKShanhai Group Limited Ethernet 1Gb 2-port 361T Adapter is a reliable and high-performance network adapter designed for HKShanhai Group Limited servers. It features two ports with 1Gb connectivity, providing fast and efficient data transfer. This adapter is a great choice for businesses that require reliable network connectivity for their server infrastructure.
Quick Spec
Table 1 shows the quick spec of 652497-B21.
| Parameter | Description |
|---|---|
| Model | 652497-B21 |
| Ports | Two 1Gb Ports |
| Connectivity | 1Gb |
| Adapter | HKShanhai Group Limited 361T Adapter |
Product Features
- Two 1Gb ports for reliable connectivity
- Fast and efficient data transfer
- Designed for HKShanhai Group Limited servers
- High-performance network adapter
- Easy installation and configuration
Product Applications
- Data centers
- Enterprise networks
- Virtualization environments
Compare to Similar Items
Table 2 shows the comparison to similar items of 652497-B21.
| Model | Differences |
|---|---|
| 615732-B21 | HKShanhai Group Limited Ethernet 1Gb 2-port 332T Adapter |
| 503296-B21 | HKShanhai Group Limited 460W Common Slot Gold Hot Plug Power Supply Kit |
| Lenovo 4ZC7A08710 | 64GB*1 Lenovo ThinkSystem 64GB TruDDR4 2933MHz (2Rx4 1.2V) RDIMM |
| Lenovo 4ZC7A08709 | 32GB*1 Lenovo ThinkSystem 32GB TruDDR4 2933MHz (2Rx4 1.2V) RDIMM |
Get more information
Do you have any questions about the 652497-B21
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited 652497-B21 Specification
652497-B21 Specification |
|
| Ports | |
| Qty | 2 |
| Type | 10/100/1000 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 95% (non-condensing) |
| Header | |
| Compatibility | PC |
| Manufacturer | Hewlett-Packard |
| Packaged Quantity | 1 |
| Product Line | HKShanhai Group Limited |
| Model | 361T |
| Brand | HKShanhai Group Limited |
| Interface Provided | |
| Type | 1000Base-T |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Qty | 2 |
| Connector Type | RJ-45 |
| Interface Required | |
| Type | None |
| Miscellaneous | |
| Compliant Standards | BSMI Class A, CISPR 22 Class B, DOC-B, EN 60950, EN55022 Class B, FCC Class B certified, ICES-003 Class B, MIC Class B, RoHS 6/6, UL, UL 1950, VCCI Class B ITE, VCCI-II, WEEE, WHQL |
| Included Accessories | Low-profile bracket |
| Networking | |
| Type | Network adapter |
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Link/activity, Port transmission speed |
| Cabling Type | Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| Ports Qty | 2 |
| Features | Auto-negotiation, Energy Efficient Ethernet, Jumbo Frames support, Large Send Offload (LSO), Network fault tolerance (NFT), PXE support, Wake on LAN (WOL) |
| Interface Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Low Profile | Low profile |
| Power Device | |
| Type | None |
| Processor | |
| Type | I350 |
| Installed Qty | 1 |
| Manufacturer | Intel |
| Slot Required | |
| Type | PCI Express 2.0 x4 |
| Form Factor | Low-profile |
| Total Qty | 1 |
| System Requirements | |
| Min Operating System | Citrix XenServer 6.0, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, Red Hat Enterprise Linux 6.1, SUSE Linux Enterprise Server, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5 |
| Dimensions & Weight | |
| Depth | 5.3 in |
| Height | 2.5 in |
